Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 12 x 24

The XKA Aluminum Alloy Trim Tab Kit with One-Touch Control is engineered for aluminum-hulled boats, offering an economical and durable solution to enhance your vessel’s performance. This kit combines robust construction with user-friendly operation, ensuring precise trim tab positioning and maximum lift force without the maintenance hassles of hydraulic systems.

Key Features

• Corrosion-resistant epoxy coating seals all trim tabs
• Equivalent strength to 10 gauge stainless steel for superior durability
• "No Break" polypropylene hinge withstands over 300,000 cycles at a 90° bend
• Protected upper ram seal prevents damage from fouling or barnacle growth
• Internal pressure equalization system ensures smooth operation
• Built-in brake system prevents unwanted tab movement during operation
• Quiet, non-hydraulic operation for a peaceful boating experience
• Actuators are fully load tested to deliver up to 1000 lbs of force
• Non-metallic external structure resists corrosion and UV degradation

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 24" (30 x 61 cm)
Suitable Boat Length	28' to 48' (8.5 to 14.5 m)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 to 64 mm)
Rocker Switch Operating Voltage	12 or 24 V

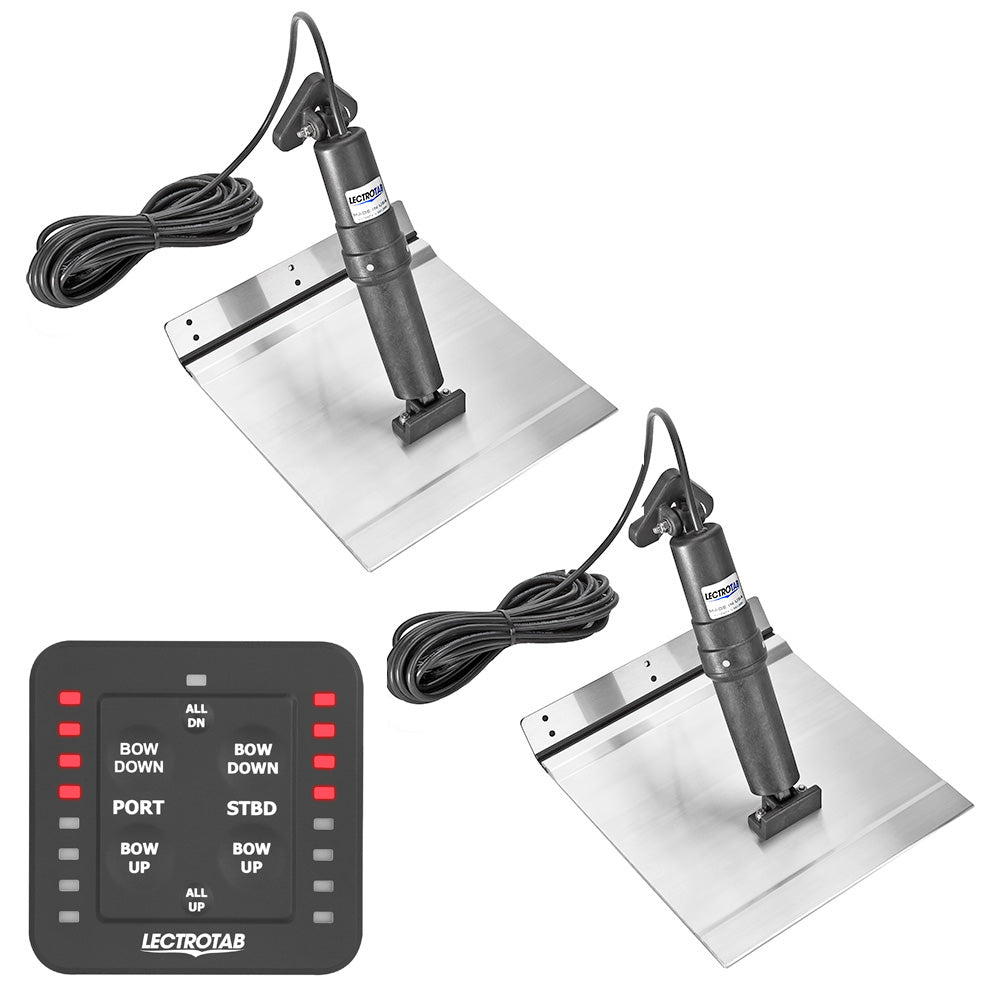

What's Included

• One (1) One-Touch Control unit
• Two (2) Aluminum Alloy trim tabs
• Two (2) Actuators with 23' (7 m) cables
• Comprehensive Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 2"H x 5"W x 6"L
• Weight: 23.85 lbs

Owner's Manual (PDF)

Brochure (PDF)
