Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 12 x 18

The XKA Aluminum Alloy Trim Tab Kit with One-Touch Control is the ideal solution for enhancing the performance and stability of your aluminum-hulled boat. Designed for durability and ease of use, this kit ensures precise trim tab positioning without the hassles of hydraulic systems.

Durable Aluminum Alloy Construction

The XKA Trim Tabs are crafted from marine-grade 6005-T5 aluminum alloy, offering an equivalent strength to 10 gauge stainless steel. Each tab is sealed with a corrosion-resistant epoxy coating, ensuring longevity even in harsh marine environments. The "no-break" polypropylene hinge has been rigorously tested for over 300,000 cycles, bending up to 90°, guaranteeing reliable performance season after season.

Advanced Actuation System

Equipped with a precision-engineered electro-mechanical actuator, this kit provides quiet and maintenance-free operation. The actuator delivers up to 1000 lbs of force and features an internal brake system to prevent unwanted movement while underway. Housed in a non-metallic, permanently sealed enclosure, the actuator assembly is corrosion-free and easy to install without any components needing to be placed inside the boat.

One-Touch Control for Ultimate Convenience

Take full control of your trim tabs with Lectrotab's innovative one-touch leveling LED control. This user-friendly system allows boaters to adjust trim tabs effortlessly, ensuring optimal boat handling and performance with just the push of a button.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 18" (30 x 46 cm)
Boat Length Compatibility	20' to 40' (6 to 12 m)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 x 64 mm)
Rocker Switch Operating Voltage	12 or 24 V
Box Dimensions	2"H x 5"W x 6"L
Weight	20.15 lbs

Key Features

• Corrosion-Resistant Sealing: All tabs are sealed with a durable epoxy coating to withstand marine environments.
• Superior Strength: Constructed with aluminum alloy equivalent to 10 gauge stainless steel.
• High Durability: "No-break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure.
• Protected Ram Seal: Upper ram seal location is safeguarded against fouling and barnacle growth.
• Pressure Equalization: Utilizes an internal pressure equalization system for smooth operation.
• Brake System: Internal brake prevents unwanted tab movement while cruising or reversing.
• Quiet Operation: Engineered for minimal noise during use.
• Heavy-Duty Actuators: Each actuator is load tested to push 1000 lbs of force.
• Non-Corrosive Structure: External components are made from non-metallic materials to prevent corrosion and degradation.

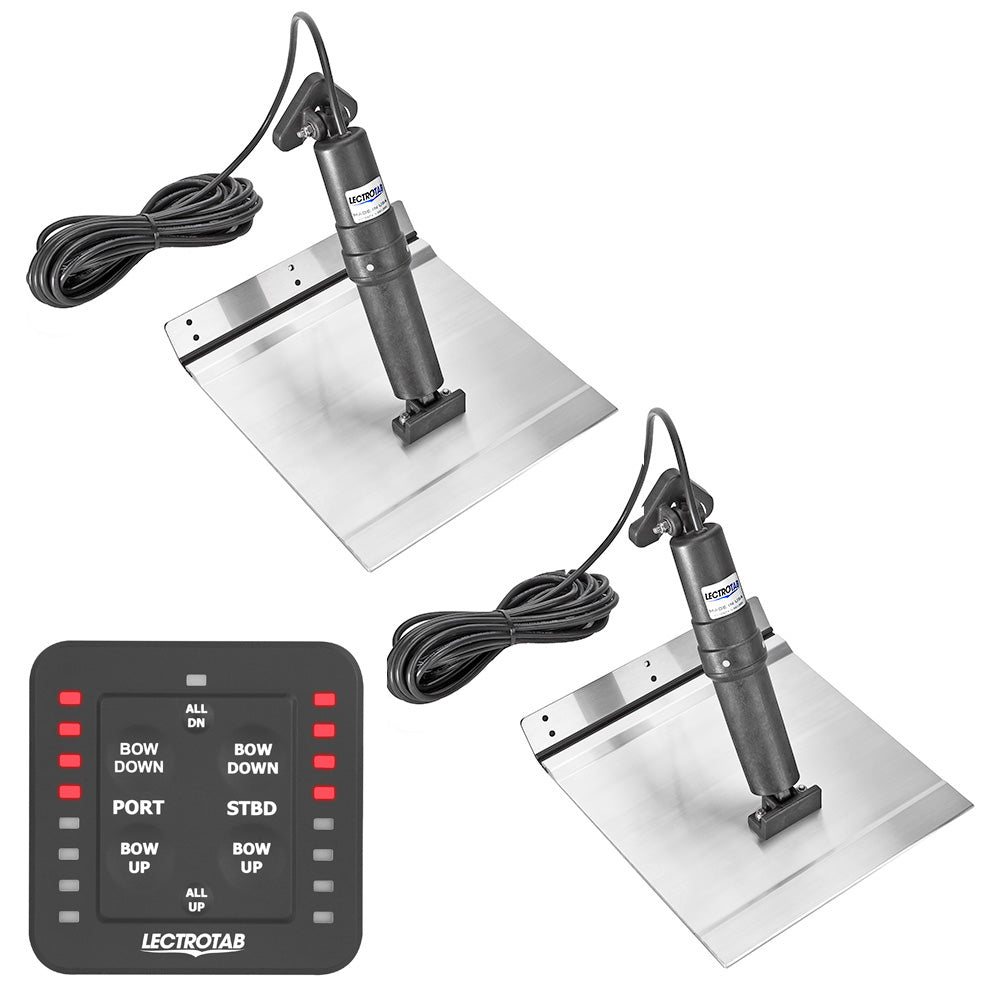

What's Included

• One (1) One-Touch Control unit
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) cables
• Instruction Manual

Note: Sold as a Kit

Additional Resources

Owner's Manual (PDF)
Brochure (PDF)
