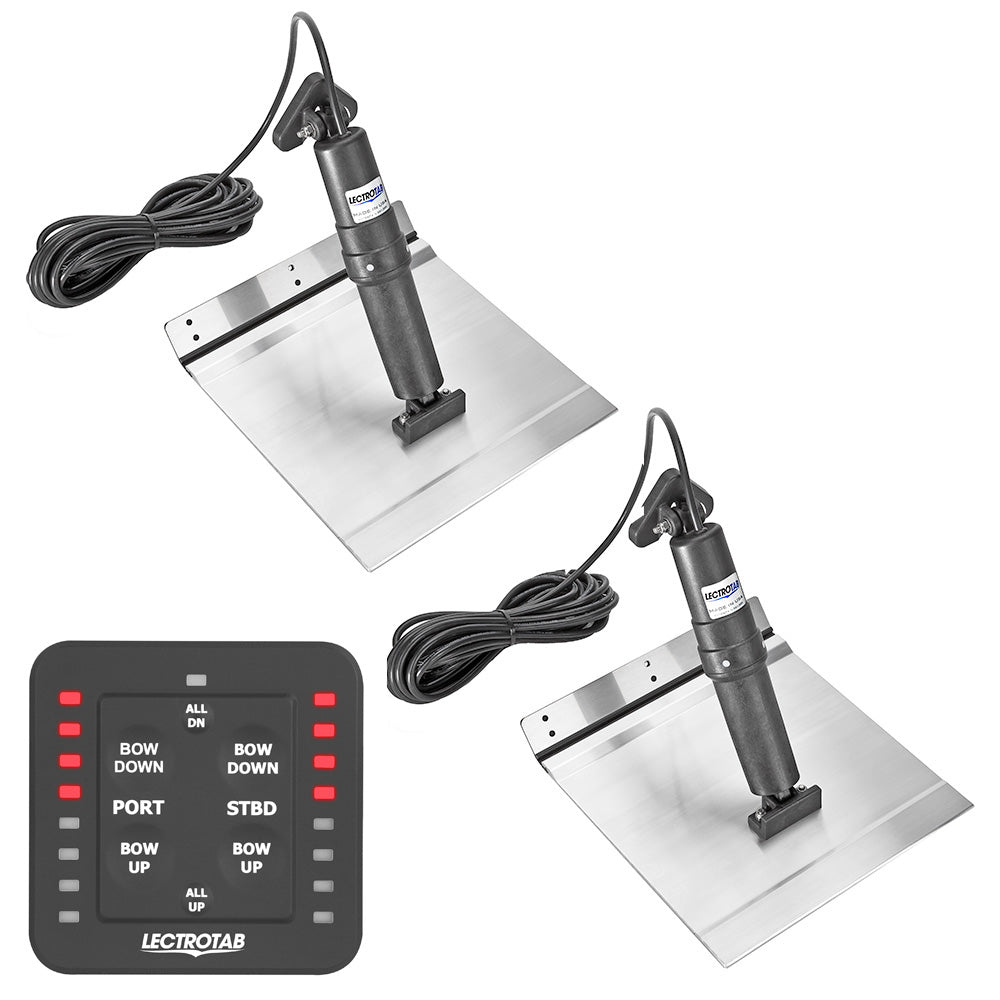

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 12 x 12

The XKA Aluminum Alloy Trim Tab Kit with One-Touch Control is engineered for superior performance and durability, making it the ideal choice for aluminum-hulled boats of all sizes. This 12 x 12 trim tab kit ensures precise leveling and enhanced maneuverability, allowing you to enjoy a smoother and more controlled boating experience.

Exceptional Build Quality

Crafted from marine-grade 6005-T5 Aluminum Alloy, the XKA trim tabs offer unparalleled strength and longevity. The "no-break" polypropylene hinge is rigorously tested to withstand over 300,000 cycles, ensuring reliable performance even under extreme conditions. Additionally, all trim tabs are sealed with a corrosion-resistant epoxy coating, providing robust protection against the harsh marine environment.

Advanced Actuation System

The precision-engineered actuator in this kit delivers quiet, maintenance-free operation without the need for hydraulic systems. Key benefits include:

• Corrosion-Free Design: The actuator assembly is housed in a non-metallic, permanently sealed casing, preventing corrosion and eliminating the risk of oil leaks associated with hydraulic systems.
• Accurate Positioning: Ensures precise tab alignment for optimal boat performance.
• High Lift Force: Capable of pushing up to 1000 lbs of force, providing substantial lift and control.
• Easy Installation: Completely self-contained unit with no need for internal mounting inside the boat.

One-Touch Leveling Control

Take full command of your trim tabs with Lectrotab's intuitive LED control system. The one-touch leveling feature allows for effortless adjustments, giving you quick access to fine-tune your boat's trim with just a single press.

Key Features

• All trim tabs feature a corrosion-resistant epoxy coating
• Equivalent strength to 10-gauge stainless steel
• "No Break" polypropylene hinge tested for over 300,000 cycles
• Protected upper ram seal to prevent damage from fouling or barnacles
• Internal pressure equalization system
• Built-in brake system to prevent unwanted tab movement
• Silent and smooth operation
• Actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure resists corrosion and UV degradation

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 12" (30 x 30 cm)
Suitable Boat Length	18' to 32' (5.5 to 9.5 m)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 to 64 mm)
Rocker Switch Operating Voltage	12 or 24 V

Package Includes

• One (1) One-Touch Control Unit
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Comprehensive Instruction Manual

*Sold as a Kit

Additional Specifications

Specification	Details
Actuator Type	Electro-Mechanical
Construction	Aluminum Alloy
Box Dimensions	2"H x 5"W x 6"L
Weight	15.25 lbs

Resources

• Owner's Manual (PDF)
• Brochure (PDF)
