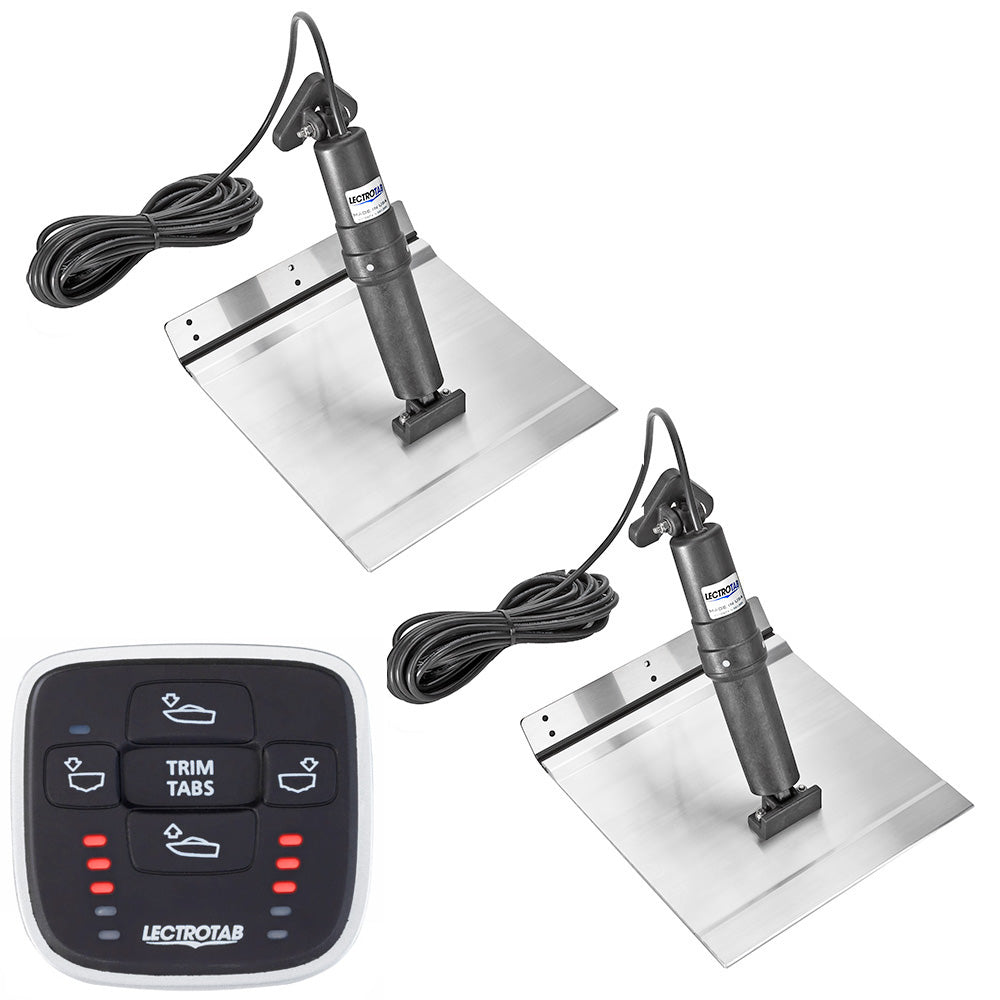

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/MLC-1 Control - 9 x 24

Enhance the performance and reliability of your aluminum-hulled boat with the XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control. Designed for durability and precision, this kit offers a maintenance-free, non-hydraulic solution to optimize your boating experience.

Product Overview

The XKA Aluminum Alloy Trim Tab Kit is specifically engineered for aluminum boats, providing an economical and robust solution for improving boat stability and handling. Featuring a "no-break" polypropylene hinge and a corrosion-resistant epoxy coating, these trim tabs are built to withstand harsh marine environments. The precision-engineered actuator ensures quiet operation and accurate tab positioning, all within a self-contained, easy-to-install unit that requires no internal installations or hydraulic systems.

Key Features

• Corrosion Resistant: All tabs are sealed with a durable epoxy coating to prevent corrosion.
• High Strength: Equivalent to 10 gauge stainless steel for maximum durability.
• Long-Lasting Hinges: "No Break" polypropylene hinges tested over 300,000 cycles to a 90° bend without failure.
• Protected Ram Seal: Upper ram seal location is safeguarded against damage from fouled rams or barnacle growth.
• Pressure Equalization: Utilizes an internal pressure equalization system for smooth operation.
• Secure Tab Positioning: Internal brake system prevents unwanted tab movement when underway or backing down.
• Quiet Operation: Actuators operate smoothly and silently for a better boating experience.
• Powerful Actuators: Fully load-tested to push up to 1000 lbs of force.
• Non-Metallic Structure: External components are non-metallic, ensuring no corrosion and resistance to sun and water damage.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 24" (23 x 61 cm)
Suitable Boat Length	24' to 37' (7 to 11 m)
Material	Marine Grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

MLC-1 Control Unit

The Lectrotab MLC-1 microprocessor-based trim tab control allows you to operate both tabs simultaneously with the press of a single button. Equipped with LED tab position indicators, the control unit automatically adjusts brightness in response to ambient lighting conditions, ensuring visibility without distraction.

What's Included

• One (1) Manual Leveling Control
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 4"H x 5"W x 6"L
• Weight: 20.9 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
