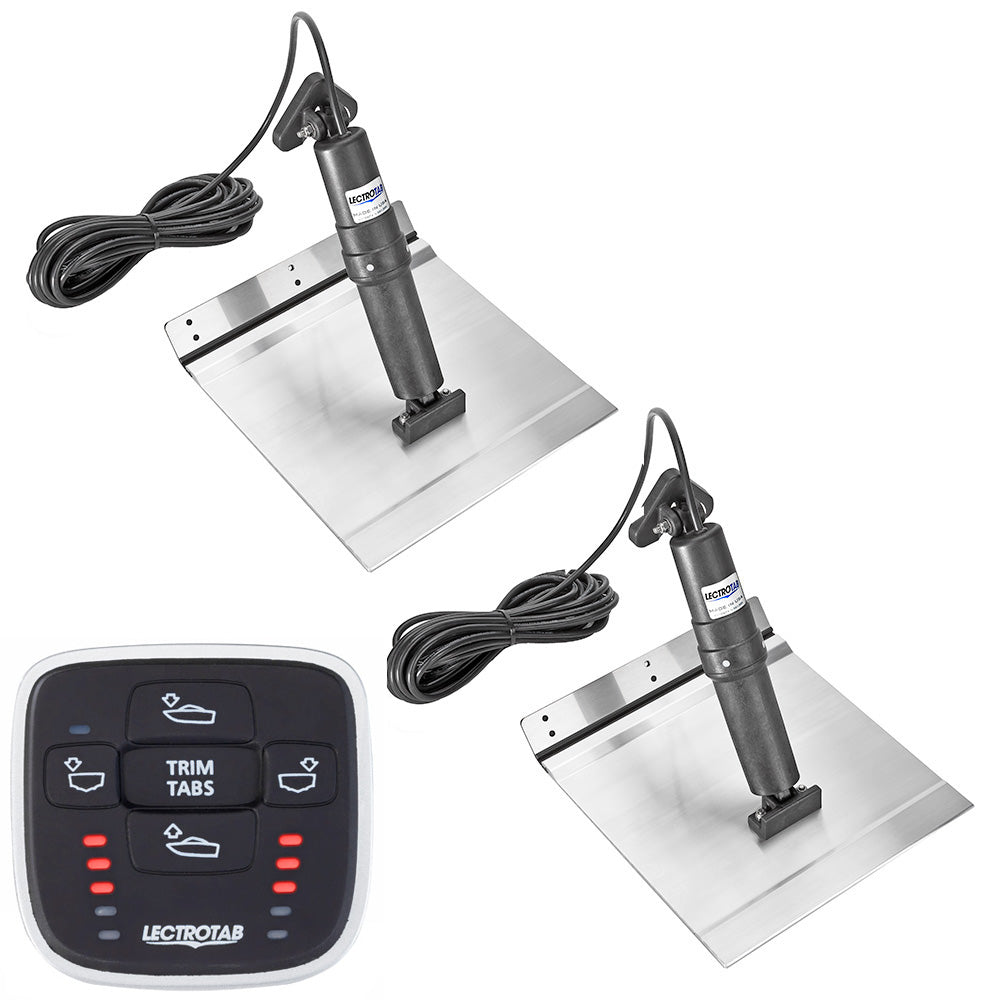

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/MLC-1 Control - 9 x 18

Enhance your aluminum-hulled boat's performance with the XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control. Designed for durability and precision, this kit ensures smooth and reliable trim tab operations, providing maximum lift force without the hassle of hydraulic systems.

Product Overview

The XKA Aluminum Alloy Trim Tab Kit is specifically engineered for aluminum boats, offering an economical solution without compromising on strength or reliability. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs feature a "no-break" polypropylene hinge tested over 300,000 cycles, ensuring long-lasting performance. The corrosion-resistant epoxy coating guarantees longevity in harsh marine environments.

Key Features

• Corrosion-resistant epoxy-coated aluminum tabs
• Equivalent strength to 10 gauge stainless steel
• Durable "no-break" polypropylene hinge with 300,000+ cycle testing
• Protected upper ram seal against fouling and barnacle growth
• Internal pressure equalization system for optimal performance
• Integrated brake system to prevent unwanted tab movement
• Quiet, maintenance-free operation
• Actuators capable of pushing up to 1000 lbs of force
• Non-metallic external structure resistant to corrosion and UV damage

Advanced Control System

The Lectrotab MLC-1 microprocessor-based trim tab controller allows simultaneous movement of both tabs with a single button press. Equipped with LED position indicators, the system automatically adjusts brightness based on ambient light, ensuring visibility at all times.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 18" (23 x 46 cm)
Suitable Boat Length	21' to 30' (6.5 to 9 M)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

What's Included

• One (1) Manual Leveling Control
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

Note: Sold as a Kit

Additional Specifications

Specification	Details
Actuator Type	Electro-Mechanical
Construction	Aluminum Alloy
Box Dimensions	4"H x 5"W x 6"L
Weight	17.9 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
