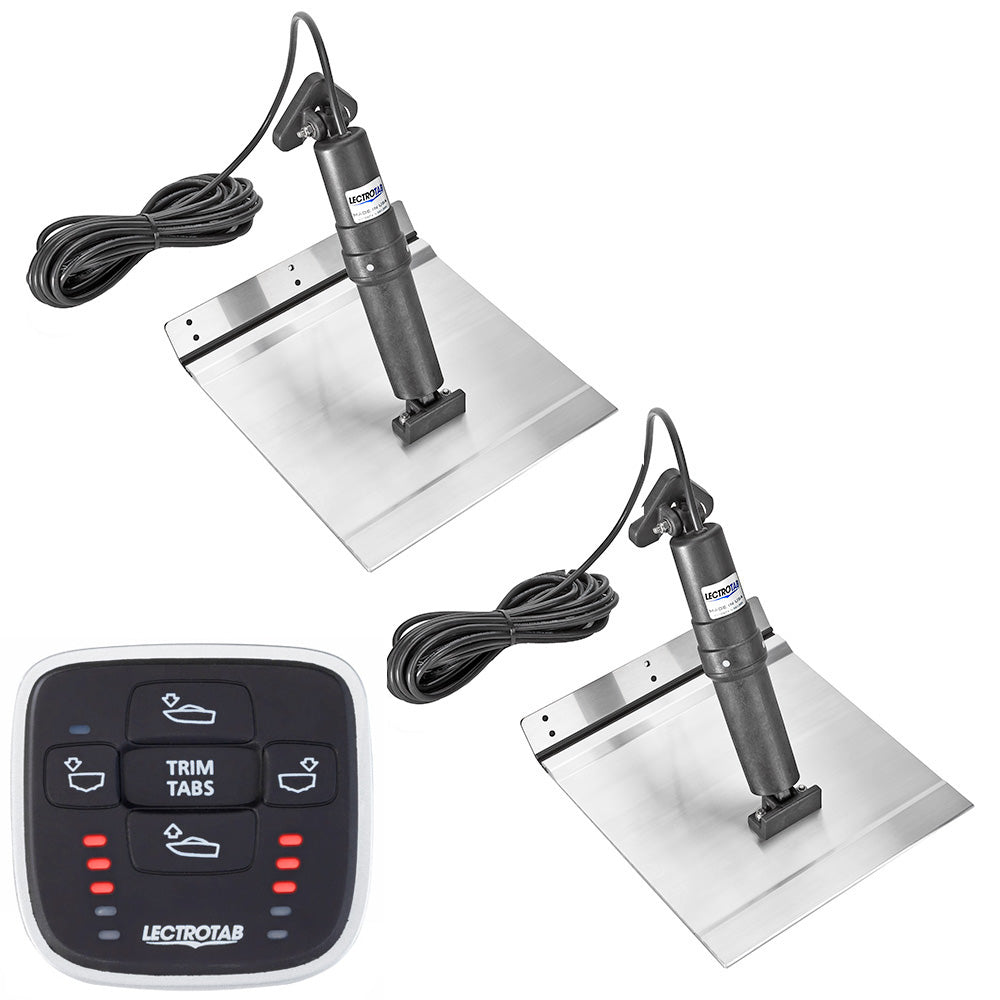

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/MLC-1 Control - 12 x 24

The XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control is engineered specifically for aluminum-hulled boats, providing a reliable and cost-effective solution to enhance your vessel's performance. This kit combines durable construction with advanced technology, ensuring precise tab positioning and maximum lift force without the maintenance issues associated with hydraulic systems.

Product Features

• All tabs are sealed with a corrosion-resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure
• Upper ram seal is protected against damage from fouled ram or barnacle growth
• Internal pressure equalization system for consistent performance
• Integrated brake system prevents unwanted tab movement when underway or reversing
• Quiet, non-hydraulic operation
• Actuators fully load tested to push 1,000 lbs of force
• Non-metallic external structure resists corrosion and UV degradation

Advanced Control: MLC-1

The Lectrotab MLC-1 is a microprocessor-based trim tab controller that allows simultaneous movement of both tabs with the touch of a single button. It features LED tab position indicators that automatically adjust brightness based on ambient light conditions, ensuring visibility without being obtrusive.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 24" (30 x 61 cm)
Boat Length Compatibility	28' to 48' (8.5 to 14.5 m)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

Included in the Kit

• One (1) Manual Leveling Control
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 4" H x 5" W x 6" L
• Weight: 24 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
