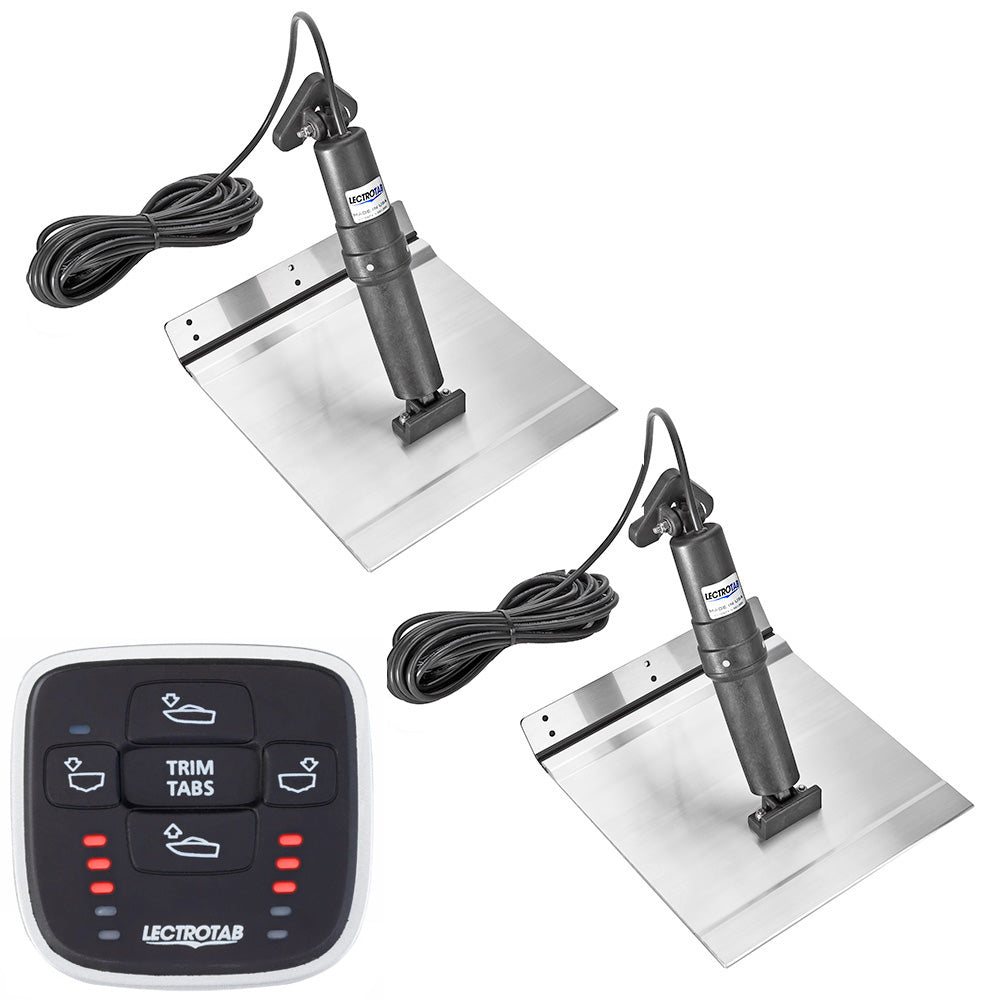

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/MLC-1 Control - 12 x 18

The XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control is engineered for aluminum-hulled boats, offering a robust and economical solution to enhance your vessel's performance. Crafted with high-quality materials and precision engineering, this trim tab kit ensures reliable operation, corrosion resistance, and easy installation, making it an essential upgrade for marine enthusiasts.

Product Overview

The Lectrotab Aluminum Alloy trim tabs are specifically designed to cater to the unique requirements of aluminum-hulled boats. Constructed with an exceptionally strong "no-break" polypropylene hinge and sealed with a corrosion-resistant epoxy coating, these trim tabs provide durability and longevity in marine environments. The kit includes a precision-engineered actuator that delivers quiet, non-hydraulic, and maintenance-free operation. The entire unit is housed in a non-metallic, permanently sealed casing, eliminating the need for any components inside the boat and preventing oil leaks typical of hydraulic systems.

MLC-1 Microprocessor Control

The Lectrotab MLC-1 control system allows seamless operation of both trim tabs with the touch of a single button. Equipped with LED position indicators, the system automatically adjusts brightness based on ambient light conditions, ensuring visibility day and night. The MLC-1 control enhances user experience by providing accurate tab positioning and maximizing lift force, all within a self-contained unit that simplifies installation.

Key Features

• Corrosion Resistant: All tabs are sealed with a corrosion-resistant epoxy coating, ensuring longevity in harsh marine environments.
• Superior Strength: Equivalent strength to 10 gauge stainless steel for reliable performance.
• Durable Hinge: "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure.
• Protected Ram Seal: Upper ram seal location is safeguarded against damage from fouled ram or barnacle growth.
• Pressure Equalization: Utilizes an internal pressure equalization system for smooth operation.
• Internal Brake System: Prevents unwanted tab movement when underway or reversing.
• Quiet Operation: Designed for silent performance, enhancing your boating experience.
• High-Force Actuators: Actuators are fully load tested to push 1000 lbs of force.
• Non-Metallic Structure: External structure is non-metallic, preventing corrosion and deterioration from sun or water exposure.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 18" (30 x 46 cm)
Suitable Boat Length	20' to 40' (6 to 12 M)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

What's Included

• One (1) Manual Leveling Control
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 4"H x 5"W x 6"L
• Weight: 20.3 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
