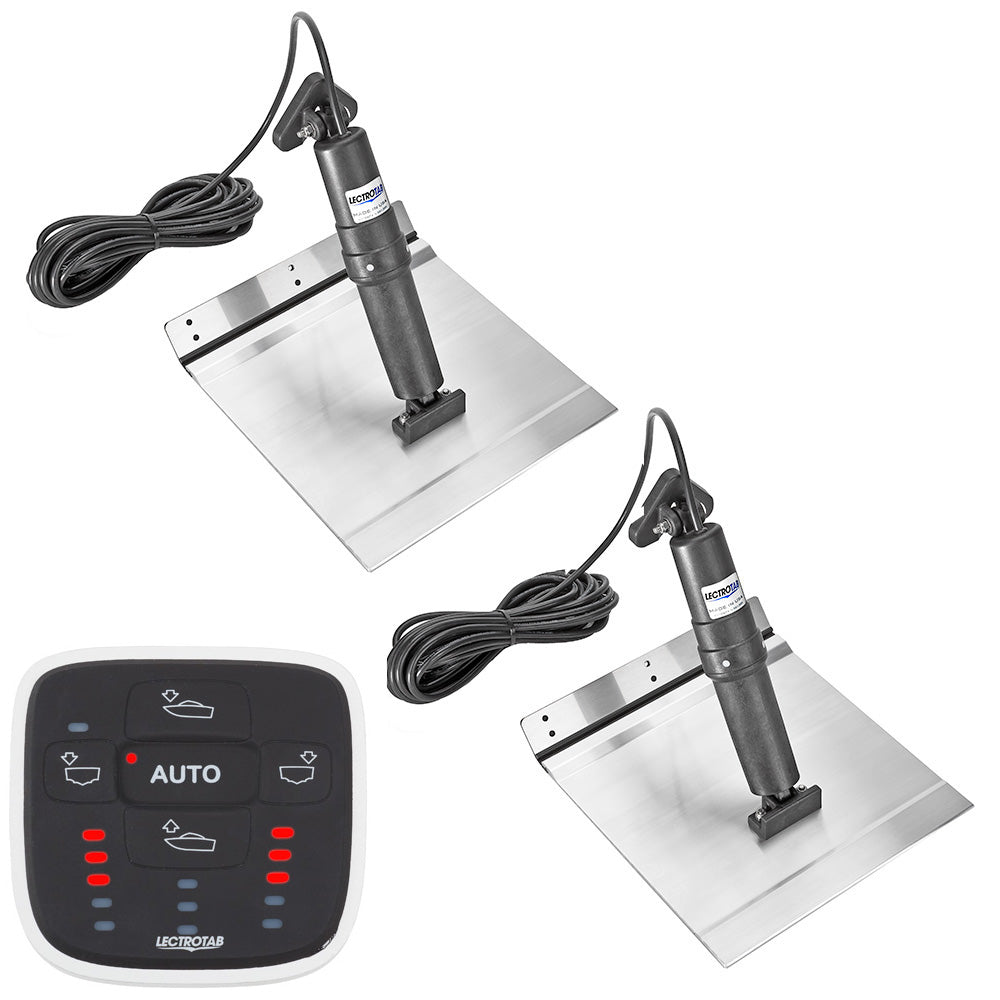

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control - 9 x 9

The XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control is meticulously engineered to enhance the performance and stability of aluminum-hulled boats. This 9" x 9" trim tab kit offers a robust, maintenance-free, and non-hydraulic solution, making it an economical and reliable choice for a wide range of marine vessels.

Product Overview

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to cater to the specific needs of aluminum-hulled boats while also being an excellent option for other types of boats. Crafted from high-grade marine aluminum alloy, these trim tabs ensure long-lasting performance and resilience against harsh marine environments.

Key Features

• Sealed with a corrosion-resistant epoxy coating to prevent deterioration
• Equivalent strength to 10 gauge stainless steel for superior durability
• “No Break” polypropylene hinge tested over 300,000 cycles to a 90° bend without failure
• Protected upper ram seal location, immune to damage from fouled rams or barnacle growth
• Internal pressure equalization system for consistent performance
• Integrated internal brake system prevents unwanted tab movement during operation
• Quiet, smooth operation to enhance your boating experience
• Actuators are fully load tested to deliver up to 1000 lbs of force
• Non-metallic external structure resists corrosion and withstands sun and water exposure

Automatic Leveling Control (ALC-1)

The ALC-1 control system automatically adjusts the trim tabs to maintain a level boat, ensuring a more comfortable and enjoyable ride. It adeptly corrects roll from side to side and pitch from fore to aft, enhancing both your boating experience and fuel economy.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 9" (23 x 23 cm)
Suitable Boat Length	14' to 19' (4 to 6 m)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

What's Included

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) cables
• Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 2" H x 4" W x 6" L
• Weight: 13.05 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
