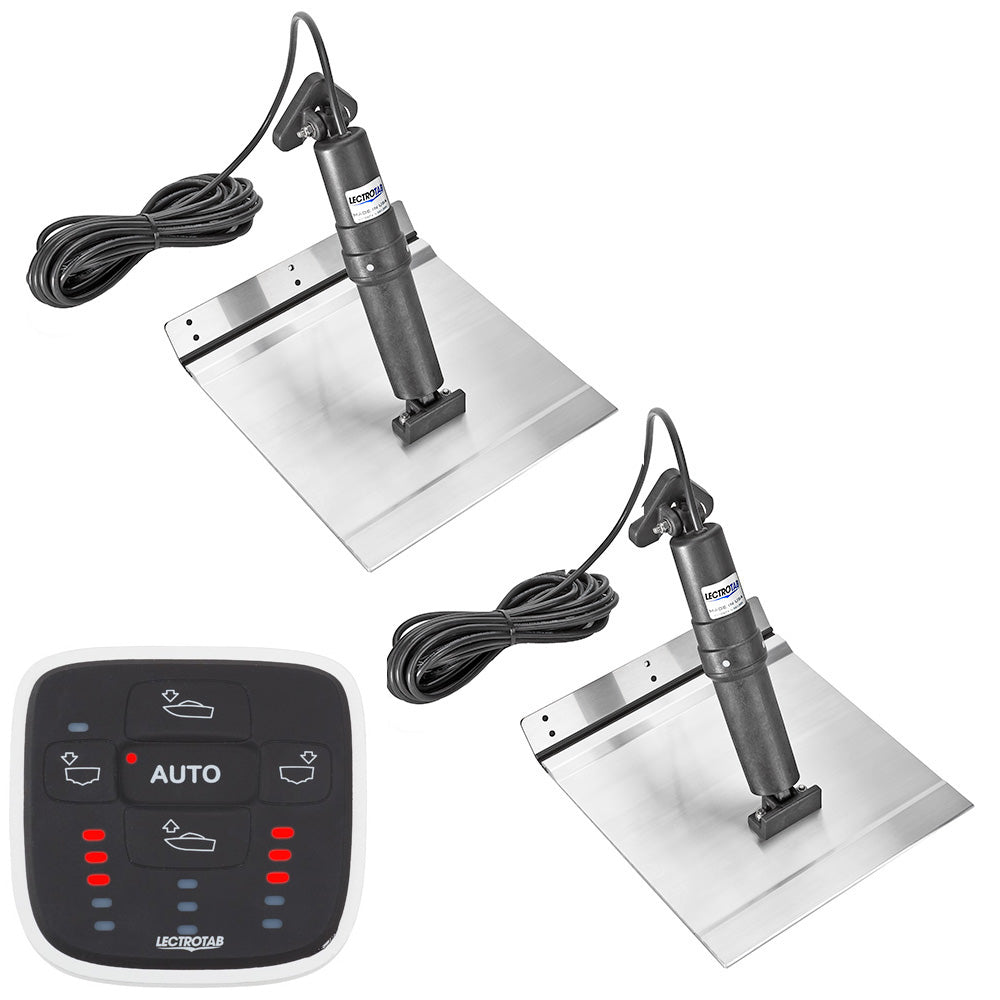

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control - 9 x 24

The XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control is a high-performance solution designed specifically for aluminum-hulled boats, offering enhanced stability and control during your marine adventures. Engineered for durability and ease of use, this kit ensures your boat maintains optimal trim in various conditions, providing a smoother and more efficient boating experience.

Key Features

• All tabs are sealed with a corrosion-resistant epoxy coating, ensuring longevity in harsh marine environments.
• Constructed with marine-grade 6005-T5 Aluminum Alloy, equivalent in strength to 10 gauge stainless steel.
• Durable "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure.
• Upper ram seal location protected from damage caused by fouled ram or barnacle growth.
• Internal pressure equalization system for reliable performance.
• Integrated internal brake system prevents unwanted tab movement when underway or reversing.
• Quiet operation ensures a peaceful boating experience.
• Actuators are fully load tested to push up to 1,000 lbs of force.
• Non-metallic external structure resists corrosion and withstands sun exposure and underwater conditions.

Automatic Leveling Control (ALC-1)

The ALC-1 automatically adjusts your trim tabs to maintain a level boat, enhancing comfort and stability. It corrects roll from side to side and pitch from fore to aft, improving your boating experience and fuel economy. This intelligent system ensures precise tab positioning without the need for hydraulic maintenance.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 24" (23 x 61 cm)
Boat Length Compatibility	24' to 37' (7 to 11 m)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

What's Included

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

Note: Sold as a Kit.

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 2"H x 4"W x 6"L
• Weight: 20.85 lbs

Resources

Owner's Manual (PDF)
Brochure (PDF)
