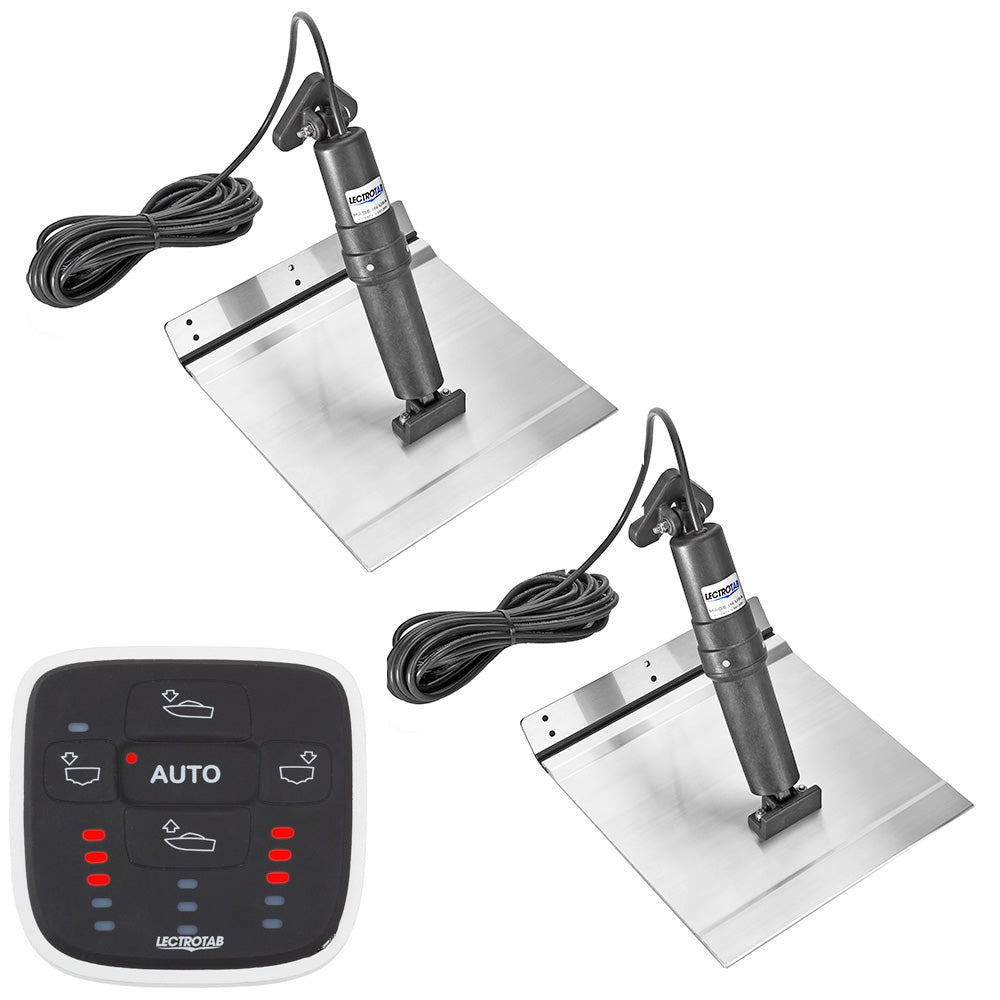

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control - 9 x 18

The XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control is the perfect upgrade for your aluminum-hulled boat, offering superior performance and durability without the hassle of hydraulic systems. Designed for boats ranging from 21' to 30', this kit ensures optimal trim tab positioning, enhancing your boating experience with better stability, fuel efficiency, and ease of installation.

Product Overview

The Lectrotab Aluminum Alloy trim tabs are specifically engineered to cater to the unique needs of aluminum hull boats, providing an economical yet robust solution for all types of boats. Crafted from marine-grade 6005-T5 Aluminum Alloy, these trim tabs feature a "no-break" polypropylene hinge that withstands over 300,000 cycles without failure. Each tab is sealed with a corrosion-resistant epoxy coating, ensuring longevity and reliability in marine environments.

Advanced Actuation System

Equipped with a precision-engineered actuator, the kit delivers quiet operation and a maintenance-free design. The non-hydraulic actuator ensures corrosion-free performance with highly accurate tab positioning. Capable of pushing up to 1000 lbs of force, the actuator is housed in a non-metallic, permanently sealed casing, simplifying installation as no components need to be placed inside the boat.

Automatic Leveling Control (ALC-1)

The integrated Automatic Leveling Control (ALC-1) automatically adjusts the trim tabs to maintain a level boat, promoting a smoother and more enjoyable ride. Additionally, the ALC-1 compensates for roll from side to side and pitch from fore to aft, enhancing your boating experience and improving fuel economy.

Key Features

• Corrosion Resistance: All tabs are sealed with a corrosion-resistant epoxy coating.
• Durable Construction: Equivalent strength to 10-gauge stainless steel.
• Reliable Hinges: "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure.
• Protected Ram Seal: Upper ram seal location is safeguarded against damage from fouled ram or barnacle growth.
• Pressure Equalization: Utilizes an internal pressure equalization system for optimal performance.
• Internal Brake System: Prevents unwanted tab movement when underway or reversing.
• Quiet Operation: Designed for minimal noise during operation.
• High-Force Actuators: Actuators are fully load tested to push 1000 lbs of force.
• Non-Metallic Structure: Resistant to corrosion and deterioration from sun and water exposure.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 18" (23 x 46 cm)
Suitable Boat Length	21' to 30' (6.5 to 9 M)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

Box Contents

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 2"H x 4"W x 6"L
• Weight: 17.85 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
