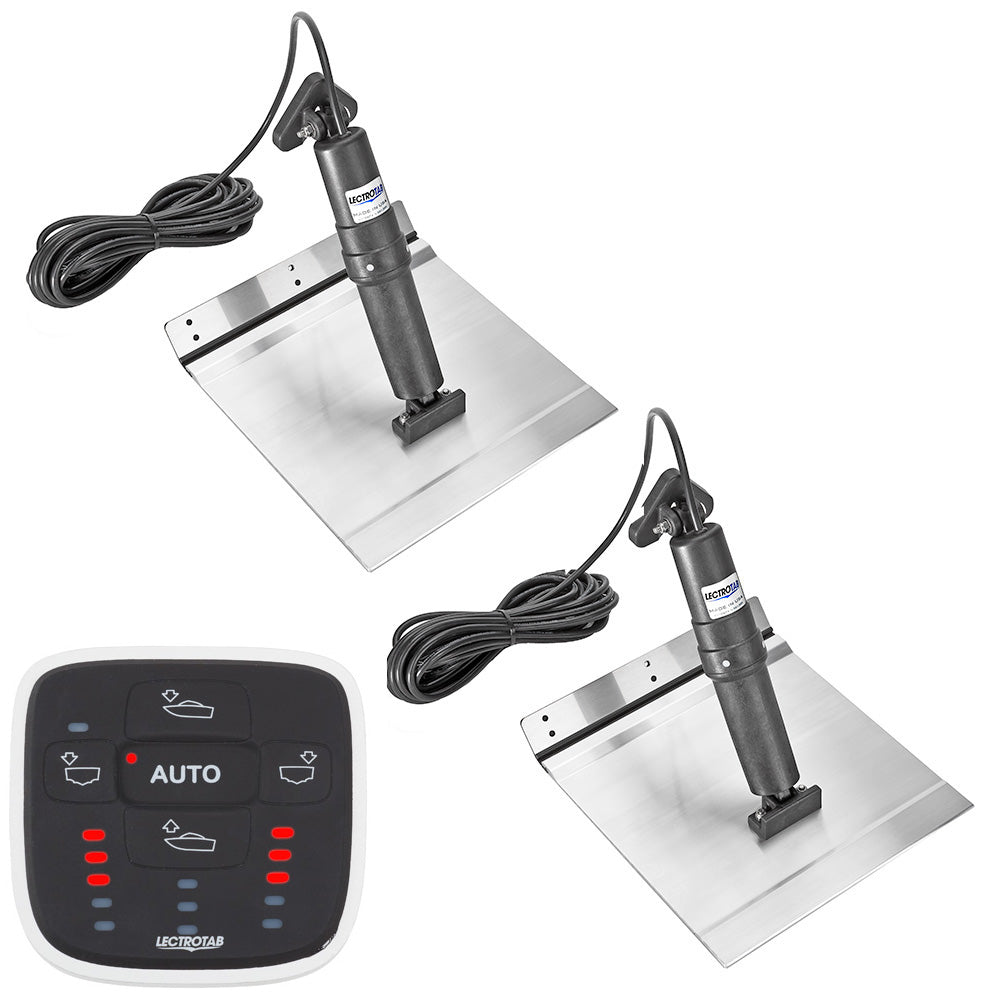

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control - 9 x 12

Enhance your aluminum-hulled boat's performance and reliability with the XKA Aluminum Alloy Trim Tab Kit featuring the innovative ALC-1 Control system. Designed for durability and precision, this kit ensures smooth, maintenance-free operation while maintaining optimal trim and balance on the water.

Key Features

• Durable aluminum alloy tabs sealed with a corrosion-resistant epoxy coating
• Robust "no-break" polypropylene hinge tested for over 300,000 cycles
• Precision-engineered actuator for quiet, non-hydraulic operation
• Corrosion-free, non-metallic external structure resistant to sun and water damage
• Automatic Leveling Control (ALC) for maintaining a level boat and enhancing fuel economy
• Internal brake system to prevent unwanted tab movement during operation
• Actuators fully load tested to push up to 1000 lbs of force
• Easy installation with no components required inside the boat

Technical Specifications

Parameter	Specification
Trim Tab Size (L x W)	9" x 12" (23 x 30 cm)
Suitable Boat Length	16' to 25' (5 to 7.5 m)
Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

What's Included

• One (1) Automatic Leveling Control (ALC-1)
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Comprehensive Instruction Manual

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Package Dimensions: 2"H x 4"W x 6"L
• Package Weight: 14.15 lbs

Resources

• Owner's Manual (PDF)
• Brochure (PDF)

Sold as a Kit
