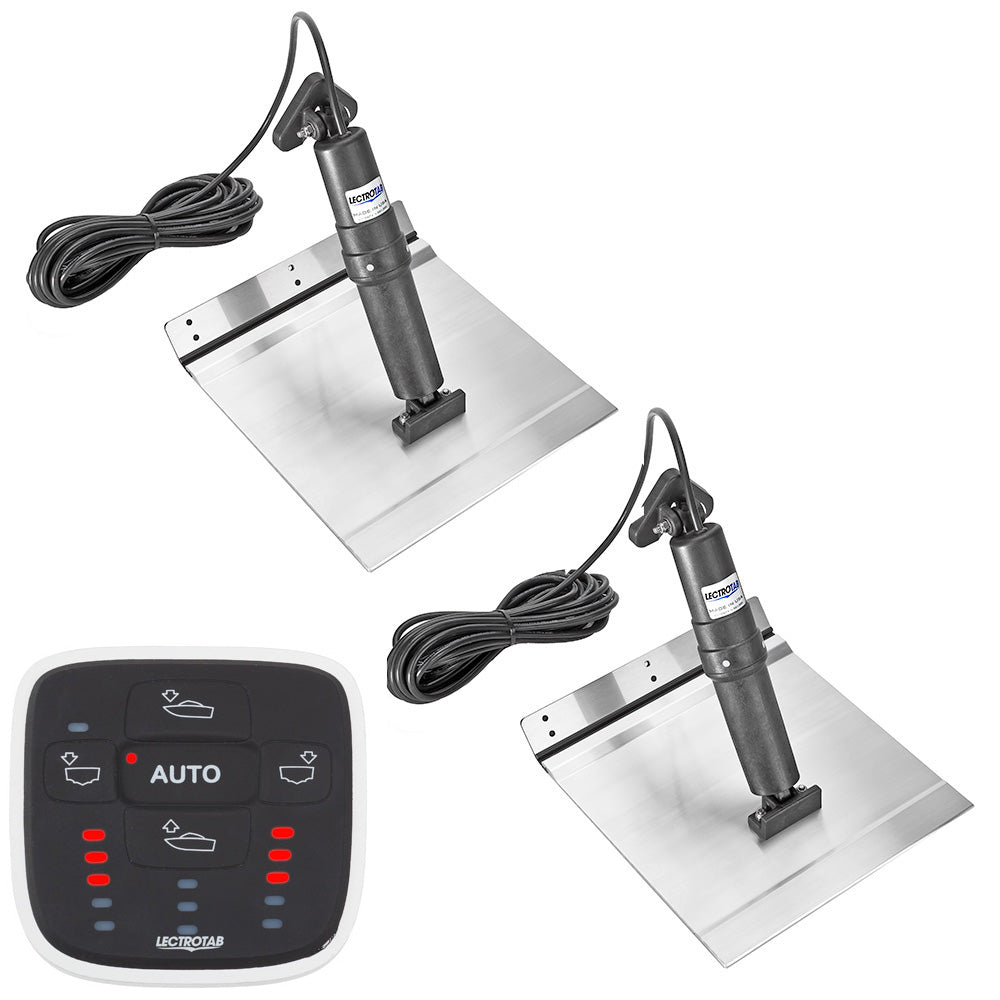

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control - 12 x 9

Enhance your boating experience with the XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control. Specifically designed for aluminum-hulled boats, this kit offers superior durability, precision, and effortless maintenance, ensuring your vessel remains level and responsive in various conditions.

Key Features

• Corrosion Resistant: All trim tabs are sealed with a high-quality epoxy coating to prevent corrosion, ensuring longevity even in harsh marine environments.
• Exceptional Strength: Manufactured from marine-grade 6005-T5 Aluminum Alloy, these trim tabs offer strength equivalent to 10-gauge stainless steel.
• Durable Hinges: Equipped with "no-break" polypropylene hinges tested over 300,000 cycles to a 90° bend without failure.
• Secure Actuation: The precision-engineered actuator provides maximum lift force with quiet, non-hydraulic, maintenance-free operation.
• Corrosion-Free Actuators: Packaged in non-metallic, permanently sealed housings, preventing any internal corrosion and eliminating the risk of oil leaks.
• Automatic Leveling Control (ALC): Automatically adjusts trim tabs to maintain a level boat, correcting roll and pitch to enhance ride comfort and fuel efficiency.
• Internal Pressure Equalization: Utilizes an internal system to maintain consistent performance without external pressure issues.
• Brake System: Prevents unwanted tab movement when underway or reversing, ensuring stability and safety.
• Easy Installation: No components need to be installed inside the boat, simplifying the setup process.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 9" (30 x 23 cm)
Suitable Boat Length	18' to 29' (5.5 to 8.5 m)
Material	Marine grade 6005-T5 Aluminum Alloy
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V
Construction	Aluminum Alloy
Box Dimensions	2"H x 4"W x 6"L
Weight	14.35 lbs

What’s Included

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Comprehensive Instruction Manual

Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 2"H x 4"W x 6"L
• Weight: 14.35 lbs

Resources

• Owner's Manual (PDF)
• Brochure (PDF)
