Lectrotab  |  SKU: LOS-96346

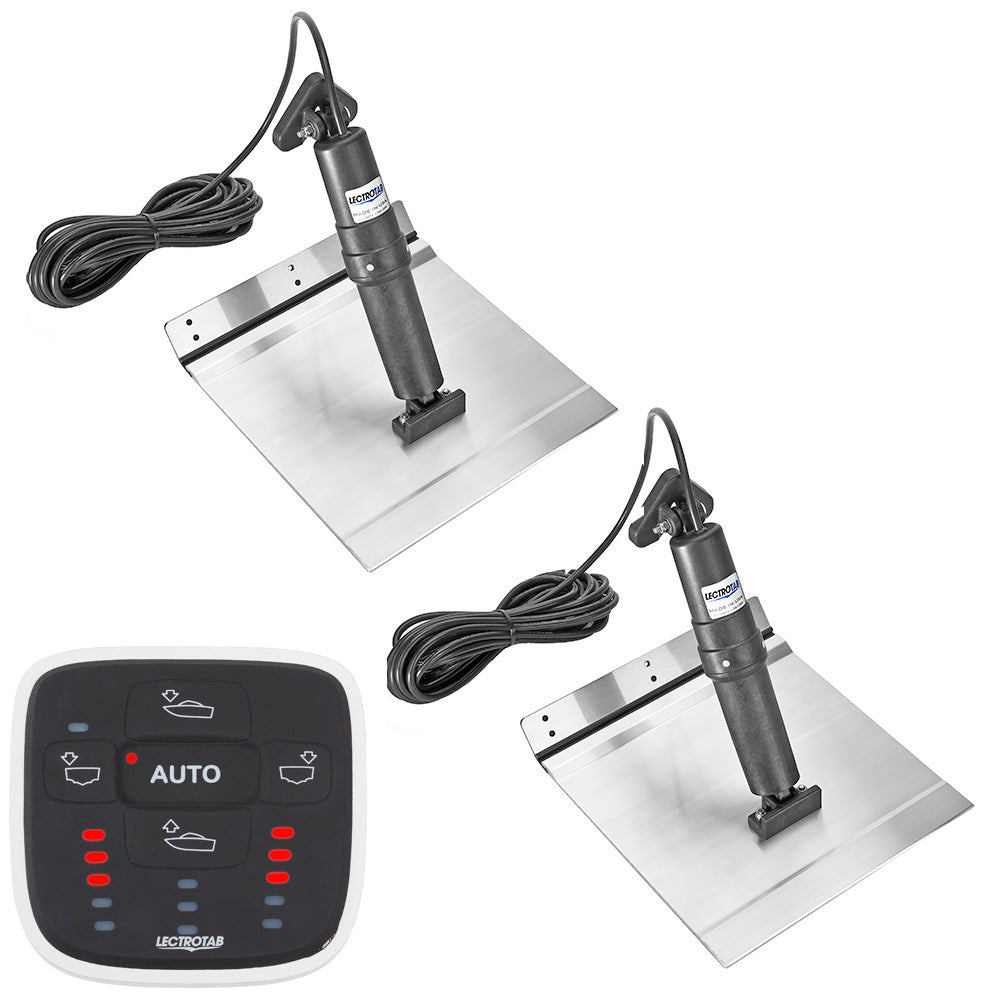

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control - 12 x 24

$1,920.15 USD $2,259.00

Product Description

The XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control enhances the performance and stability of aluminum-hulled boats, providing a reliable and maintenance-free solution for optimal trim adjustments. Engineered for durability and precision, this kit ensures a smoother and more efficient boating experience.

Product Features

  • All trim tabs are sealed with a corrosion-resistant epoxy coating, ensuring longevity in marine environments.
  • Constructed with marine-grade 6005-T5 Aluminum Alloy, offering strength equivalent to 10 gauge stainless steel.
  • Durable "no-break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure.
  • Upper ram seal design prevents damage from fouled rams or barnacle growth.
  • Equipped with an internal pressure equalization system for consistent performance.
  • Integrated internal brake system prevents unwanted tab movement when underway or reversing.
  • Operates quietly, minimizing noise disturbance during use.
  • Actuators are fully load tested to deliver up to 1000 lbs of force.
  • Non-metallic external structure resists corrosion and withstands exposure to sun and water.

Automatic Leveling Control (ALC) Benefits

The ALC-1 Control system automatically adjusts the trim tabs to maintain a level boat, enhancing comfort and stability. It actively corrects side-to-side roll and fore-to-aft pitch, improving your boating experience and fuel efficiency.

Technical Specifications

Specification Details
Trim Tab Size (L x W) 12" x 24" (30 x 61 cm)
Suitable Boat Length 28' to 48' (8.5 to 14.5 M)
Material Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage 12 V
Actuator Stroke Length 2.25" (57 mm)
Actuator Cable Length 23' (7 M)
Actuator Vertical Height 11.875" (302 mm)
Control Dimensions (W x H) 3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout 2" (50 mm)
Control Operating Voltage 12 or 24 V
Actuator Type Electro-Mechanical
Construction Aluminum Alloy
Box Dimensions 2"H x 4"W x 6"L
Weight 23.95 lbs

What's Included

  • One (1) Automatic Leveling Control (ALC-1)
  • Two (2) Aluminum Alloy Trim Tabs
  • Two (2) Actuators with 23' (7 M) Cables
  • Instruction Manual

*Sold as a Kit
