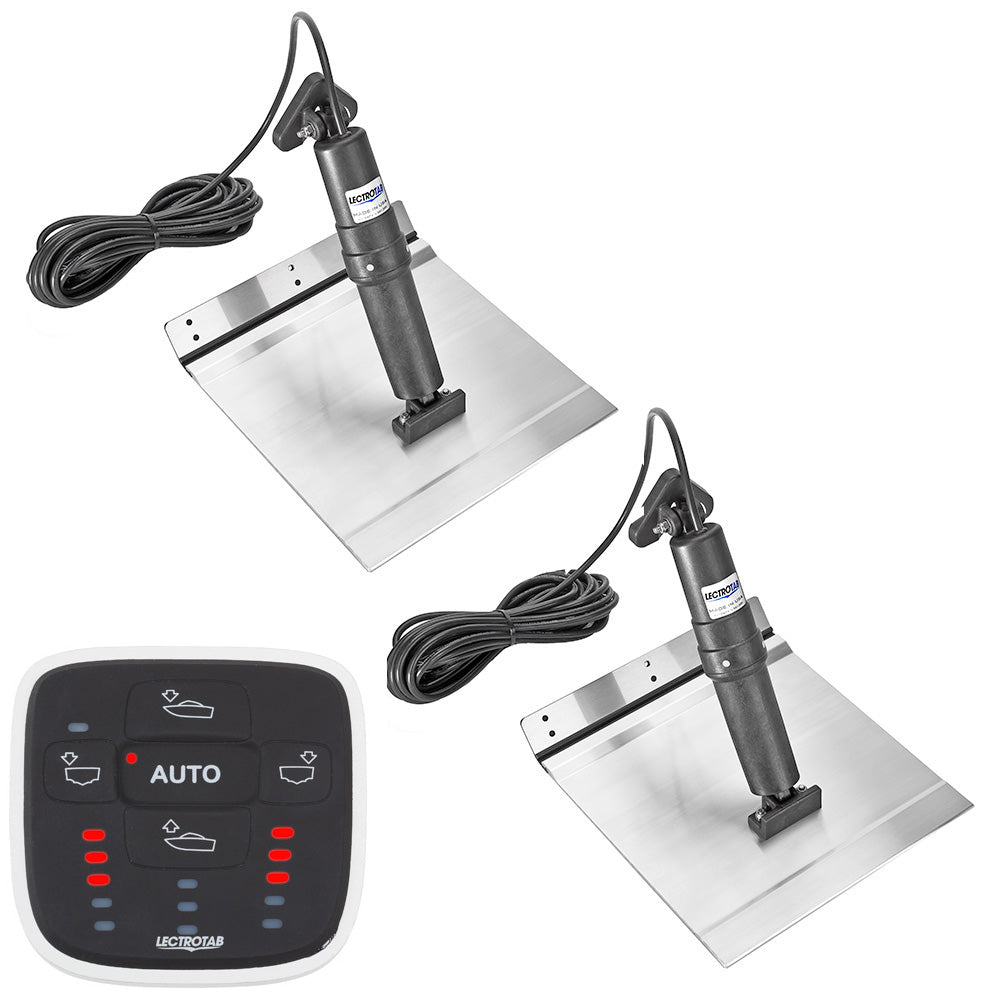

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control - 12 x 12

Enhance the performance and stability of your aluminum-hulled boat with the XKA Aluminum Alloy Trim Tab Kit featuring the advanced ALC-1 Control system. This comprehensive kit is designed to provide a smoother, more controlled boating experience while ensuring durability and ease of installation.

Durable Aluminum Alloy Construction

The XKA Aluminum Alloy Trim Tabs are specially engineered for aluminum-hulled boats, offering a robust and cost-effective solution for various marine applications. Crafted from marine-grade 6005-T5 Aluminum Alloy, these trim tabs are built to withstand harsh marine environments. The "no-break" polypropylene hinges are rigorously tested for over 300,000 cycles, ensuring long-lasting performance without failure.

Precision-Engineered Actuators

Equipped with precision-engineered electro-mechanical actuators, this kit delivers quiet and maintenance-free operation. The actuators are fully load tested to push up to 1000 lbs of force, providing reliable and powerful tab adjustments. The non-metallic external structure prevents corrosion, and the actuators are housed in a sealed, non-metallic casing to protect against water ingress. Installation is straightforward, requiring no internal components to be mounted inside the boat.

Advanced Automatic Leveling Control (ALC-1)

The ALC-1 system intelligently adjusts your trim tabs to maintain a level boat, enhancing comfort and stability during your ride. It automatically corrects roll from side to side and pitch from fore to aft, resulting in a more enjoyable boating experience and improved fuel efficiency. Unlike hydraulic systems, the ALC-1 ensures there are no oil leaks, offering a cleaner and safer operation.

Key Features

• Corrosion-resistant epoxy coating seals all trim tabs
• Equivalent strength to 10 gauge stainless steel for superior durability
• "No Break" polypropylene hinge tested for over 300,000 cycles to a 90° bend without failure
• Upper ram seal location protected against damage from fouled ram or barnacle growth
• Internal pressure equalization system for optimal performance
• Integrated brake system prevents unwanted tab movement during transit or reversing
• Quiet and smooth operation
• Actuators capable of pushing up to 1000 lbs of force
• Non-metallic exterior ensures no corrosion and withstands sun and water exposure

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 12" (30 x 30 cm)
Suitable Boat Length	18' to 32' (5.5 to 9.5 M)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V
Actuator Type	Electro-Mechanical
Construction	Aluminum Alloy
Box Dimensions	2"H x 4"W x 6"L
Weight	15.35 lbs

What's Included

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 M) cables
• Instruction Manual

*Sold as a Kit

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
