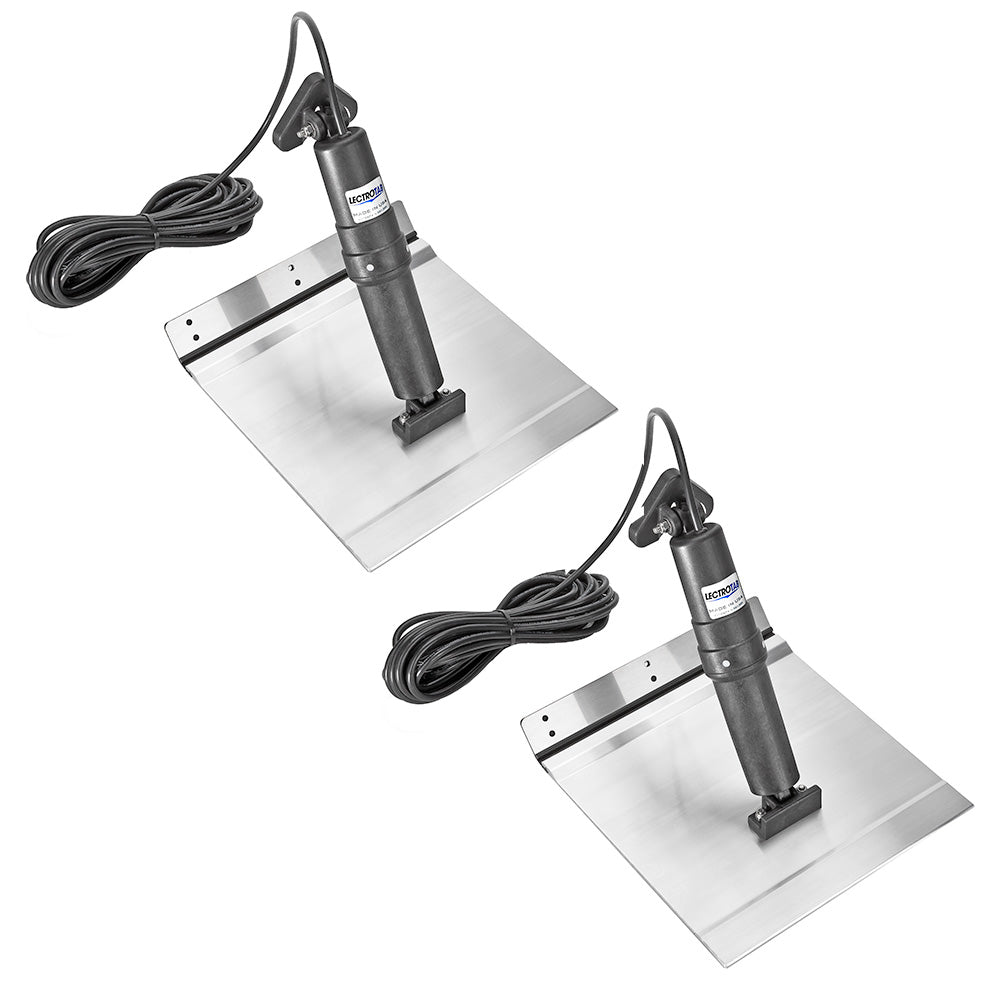

Lectrotab XKA Aluminum Alloy Trim Tab - 9x9

The XKA Aluminum Alloy Trim Tab - 9 x 9 is engineered for optimal performance on aluminum-hulled boats, offering a durable and cost-effective solution for enhancing your vessel's maneuverability and stability. Crafted from high-quality marine-grade aluminum alloy, these trim tabs ensure long-lasting performance in various marine environments.

Key Features

• Sealed with a corrosion-resistant epoxy coating for enhanced durability
• Equivalent strength to 10 gauge stainless steel for superior reliability
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure
• Protected upper ram seal location prevents damage from fouled ram or barnacle growth
• Internal pressure equalization system for consistent performance
• Integrated brake system prevents unwanted tab movement during operation
• Quiet, smooth operation for a better boating experience
• Actuators are fully load tested to push up to 1000 lbs of force
• Non-metallic external structure resists corrosion and withstands sun and water exposure

Advanced Actuator Design

The precision-engineered actuator in the XKA Trim Tab kit ensures quiet operation and a maintenance-free, non-hydraulic design. The actuator assembly is housed in a non-metallic, permanently sealed housing, eliminating the need for internal installations and preventing oil leaks common in hydraulic systems. Choose between a standard or low profile transom mounting bracket to suit your boat's configuration.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 9" (23 x 23 cm)
Suitable Boat Length	14' to 19' (4 to 6 M)
Material	Marine grade 6005-T5 Aluminum Alloy
Actuator Type	Electro-Mechanical
DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Construction	Aluminum Alloy
Box Dimensions	6"H x 15"W x 15"L
Weight	12.8 lbs
UPC	850046155444

What's Included

• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 M) cables
• Instruction Manual

Note: Control switch is not included. Sold as an individual unit.

Additional Specifications

• Internal brake system ensures tabs stay in place during operation
• Non-metallic external structure prevents corrosion and degradation

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
