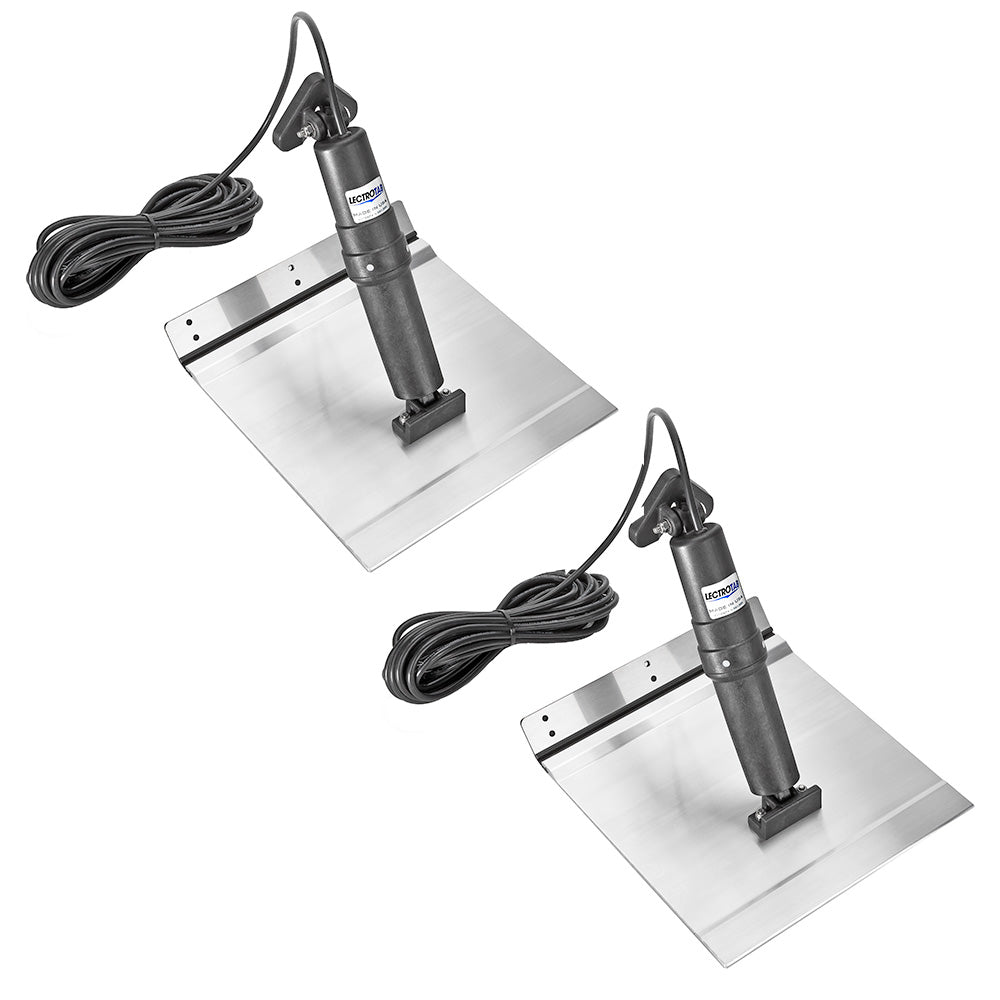

Lectrotab XKA Aluminum Alloy Trim Tab - 9x24

The XKA Aluminum Alloy Trim Tab - 9 x 24 is expertly engineered to enhance the performance and durability of aluminum-hulled boats. Designed for boaters seeking reliability and efficiency, these trim tabs offer a maintenance-free solution with superior corrosion resistance and robust construction.

Superior Features for Optimal Performance

• Corrosion-Resistant Coating: All tabs are sealed with a marine-grade epoxy coating to prevent corrosion.
• Exceptional Strength: Equivalent to 10 gauge stainless steel, ensuring long-lasting durability.
• Durable Hinges: "No Break" polypropylene hinges are tested over 300,000 cycles to a 90° bend without failure.
• Protected Ram Seals: Upper ram seal location is safeguarded against damage from fouled rams or barnacle growth.
• Internal Pressure Equalization: Utilizes an internal system to maintain optimal performance under varying conditions.
• Internal Brake System: Prevents unwanted tab movement while underway or reversing.
• Quiet Operation: Engineered for silent functionality, minimizing noise during use.
• High-Load Actuators: Actuators are fully load tested to provide up to 1000 lbs of force.
• Non-Metallic Structure: External components are made from materials that resist corrosion and do not deteriorate in sun or underwater environments.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 24" (23 x 61 cm)
Suitable Boat Length	24' to 37' (7 to 11 m)
Material	Marine grade 6005-T5 Aluminum Alloy
Actuator Type	Electro-Mechanical, DC Voltage 12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Box Dimensions	5"H x 15"W x 25"L
Weight	20.6 lbs

What's Included

• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

*Control switch not included

*Sold as an Individual

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 5"H x 15"W x 25"L
• Weight: 20.6 lbs

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
