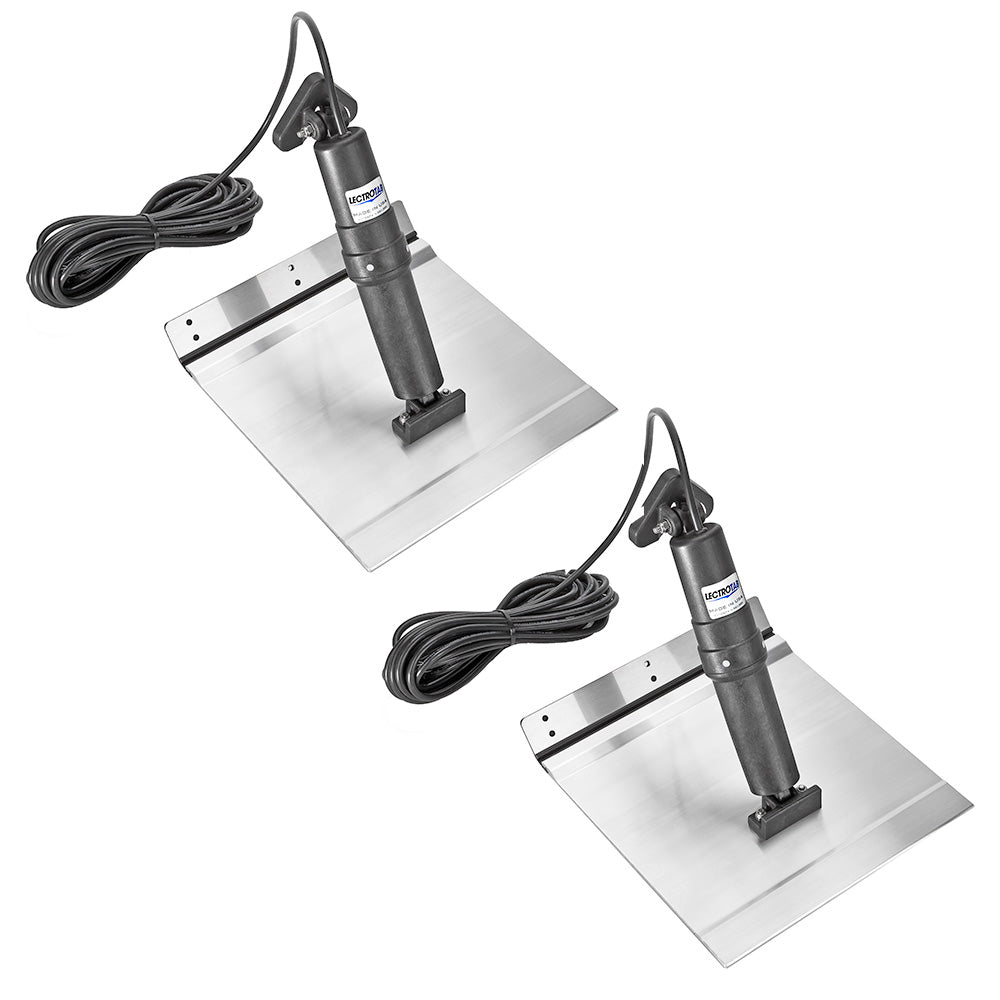

Lectrotab XKA Aluminum Alloy Trim Tab - 9x18

The XKA Aluminum Alloy Trim Tab - 9" x 18" is engineered to enhance the performance and durability of your aluminum-hulled boat. Crafted with high-quality materials and precision engineering, this trim tab offers an economical and reliable solution for boaters seeking optimal lift and control without the maintenance hassles of hydraulic systems.

Key Features

• Corrosion-Resistant Coating: All trim tabs are sealed with a durable epoxy coating to prevent corrosion, ensuring longevity even in harsh marine environments.
• Exceptional Strength: Equivalent to 10 gauge stainless steel, providing robust support and performance.
• Durable Hinge: Features a "no-break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure, ensuring reliable operation.
• Protected Ram Seal: Upper ram seal location is safeguarded against damage from fouled rams or barnacle growth.
• Pressure Equalization: Incorporates an internal pressure equalization system for smooth and consistent performance.
• Brake System: An internal brake mechanism prevents unwanted tab movement while underway or reversing.
• Quiet Operation: Designed for minimal noise, ensuring a peaceful boating experience.
• High-Load Actuators: Actuators are fully load tested to push up to 1000 lbs of force, providing maximum lift power.
• Non-Metallic Structure: External components are made from non-metallic materials that resist corrosion and UV degradation, maintaining appearance and functionality over time.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 18" (23 x 46 cm)
Suitable Boat Length	21' to 30' (6.5 to 9 M)
Material	Marine-grade 6005-T5 Aluminum Alloy
Actuator Type	Electro-Mechanical, 12 V DC
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Box Dimensions	5"H x 16"W x 25"L
Weight	17.6 lbs

What's Included

• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Comprehensive Instruction Manual

Note: Control switch is sold separately.

Additional Specifications

• Actuator Construction: Non-metallic, permanently sealed housing to prevent corrosion and eliminate the need for internal installations.
• Installation: Easy to install with either a standard or low profile transom mounting bracket included.
• Maintenance-Free: Unlike hydraulic systems, there is no oil to leak, reducing maintenance requirements and environmental impact.
