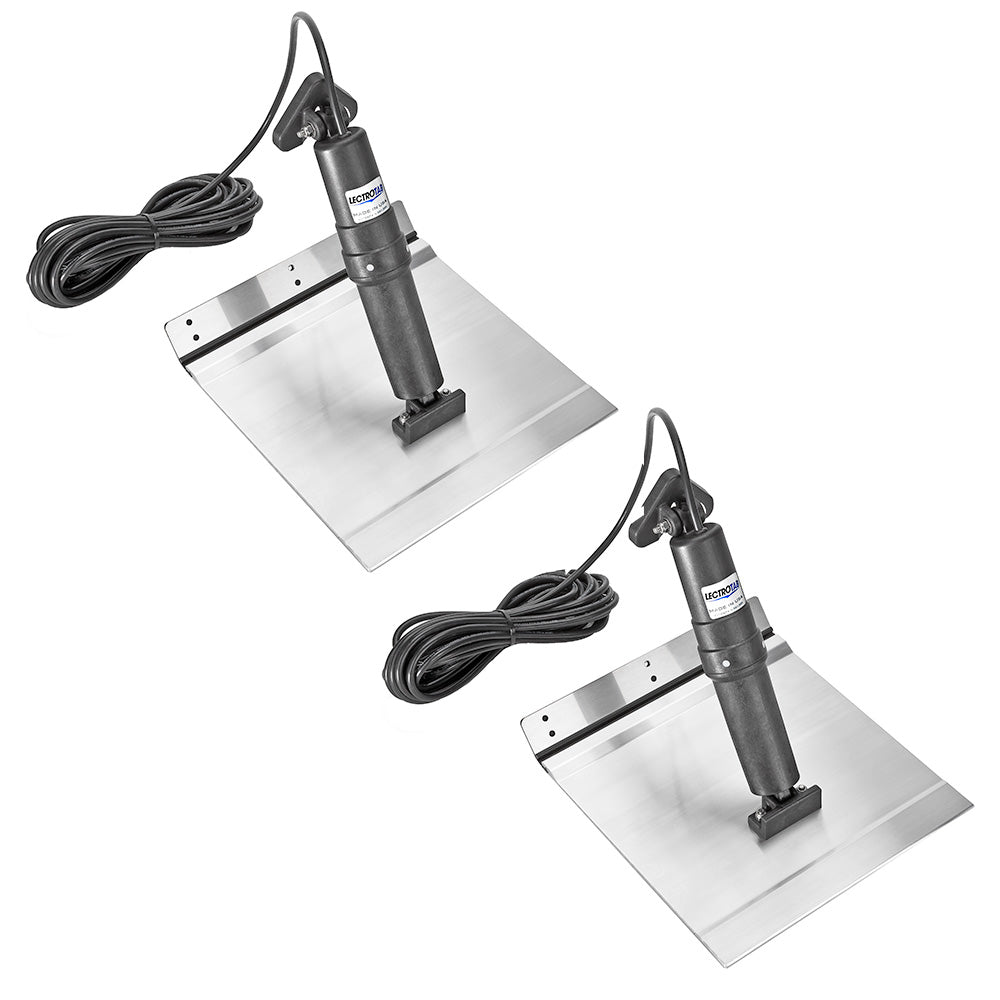

Lectrotab XKA Aluminum Alloy Trim Tab - 9x12

The XKA Aluminum Alloy Trim Tab - 9 x 12 is engineered specifically for aluminum-hulled boats, offering a robust and reliable solution to enhance your vessel's performance. Designed for durability and ease of maintenance, these trim tabs ensure your boat operates smoothly while resisting corrosion in harsh marine environments.

Key Features

• Corrosion-Resistant Coating: All tabs are sealed with a marine-grade, epoxy coating to prevent rust and degradation.
• Superior Strength: Crafted with aluminum alloy equivalent to 10 gauge stainless steel for maximum durability.
• Long-Lasting Hinges: Features a "no-break" polypropylene hinge tested over 300,000 cycles, ensuring reliable performance without failure.
• Protected Ram Seals: Upper ram seals are safeguarded against damage from fouled rams or barnacle growth.
• Pressure Equalization: Utilizes an internal pressure equalization system to maintain optimal performance.
• Internal Brake System: Prevents unwanted tab movement during operation or when reversing.
• Quiet Operation: Designed for noiseless functionality, improving your boating experience.
• High-Force Actuators: Actuators are fully load tested to push up to 1,000 lbs of force.
• Non-Metallic Structure: External components are non-metallic to resist corrosion and withstand sun and water exposure.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 12" (23 x 30 cm)
Suitable Boat Length	16' to 25' (5 to 7.5 m)
Material	Marine Grade 6005-T5 Aluminum Alloy
Actuator Voltage	12 V DC
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)

What's Included

• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Comprehensive Instruction Manual

Note: Sold as an individual unit.

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 6"H x 15"W x 15"L
• Weight: 13.9 lbs
• UPC: 850046155550

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Product Brochure (PDF)
