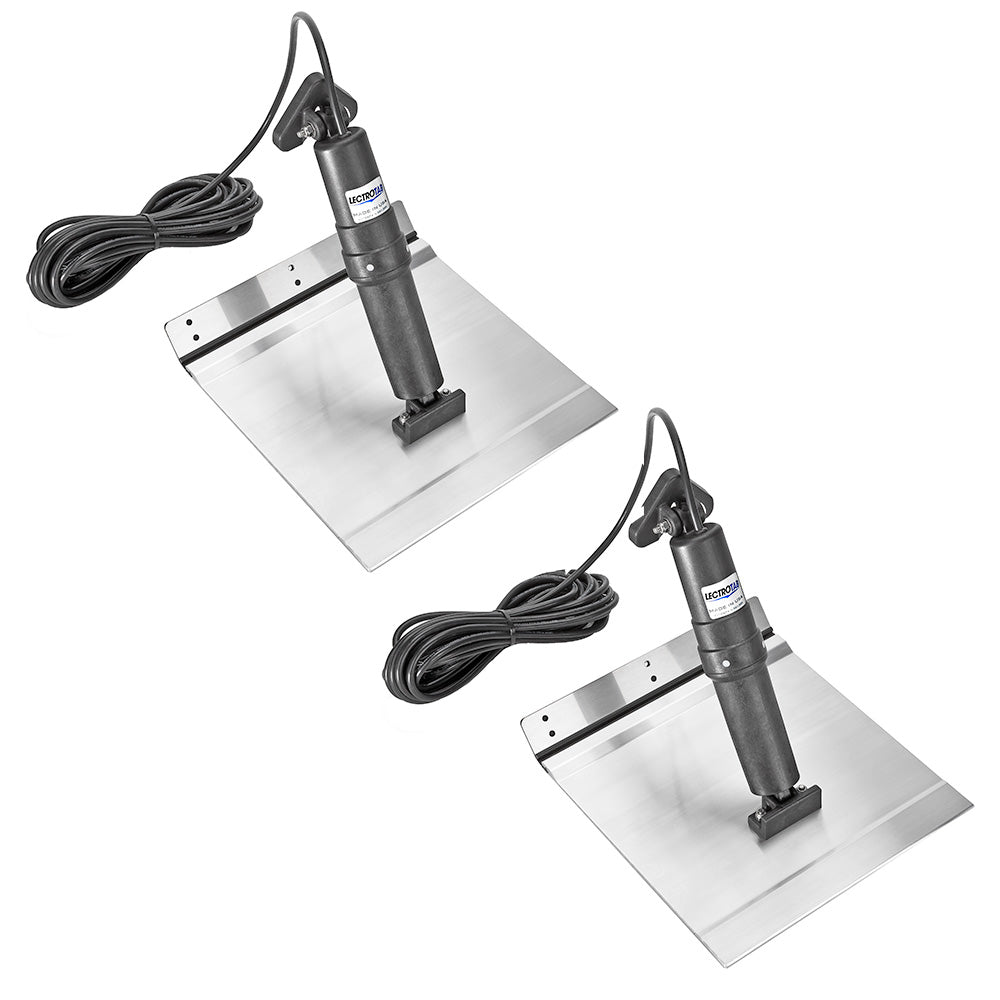

Lectrotab XKA Aluminum Alloy Trim Tab - 12x9

The XKA Aluminum Alloy Trim Tab (12 x 9) is the essential upgrade for aluminum-hulled boats, delivering superior durability, corrosion resistance, and effortless installation. Designed specifically for marine applications, this trim tab enhances your boat's performance while ensuring quiet operation and a maintenance-free experience.

Product Overview

The Lectrotab Aluminum Alloy trim tabs are expertly engineered to meet the rigorous demands of aluminum-hulled boats, providing an economical and reliable solution for all types of vessels. Crafted with a robust "no-break" polypropylene hinge and sealed with a corrosion-resistant epoxy coating, these trim tabs are built to withstand harsh marine environments and ensure long-lasting performance.

Key Features

• Corrosion-resistant epoxy-coated aluminum tabs
• Equivalent strength to 10 gauge stainless steel for enhanced durability
• "No Break" polypropylene hinge tested over 300,000 cycles at a 90° bend without failure
• Protected upper ram seal resistant to fouling and barnacle growth
• Internal pressure equalization system for improved longevity
• Integrated internal brake system prevents unwanted tab movement during navigation or reverse
• Whisper-quiet operation for a smoother boating experience
• Actuators fully load tested to deliver up to 1000 lbs of force
• Non-metallic external structure immune to corrosion and UV degradation

Technical Specifications

Trim Tab Size (L x W)	12" x 9" (30 x 23 cm)
Suitable Boat Length	18' to 29' (5.5 to 8.5 m)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)

What's in the Box

• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) cables
• Instruction Manual

Note: *Sold individually

Additional Specifications

Actuator Type	Electro-Mechanical
Construction	Aluminum Alloy
Box Dimensions	6"H x 15"W x 15"L
Weight	14.1 lbs
UPC	850046155611

Additional Information

Control switch not included.

Resources

Quick Guide (PDF)
Owner's Manual (PDF)
Brochure (PDF)
