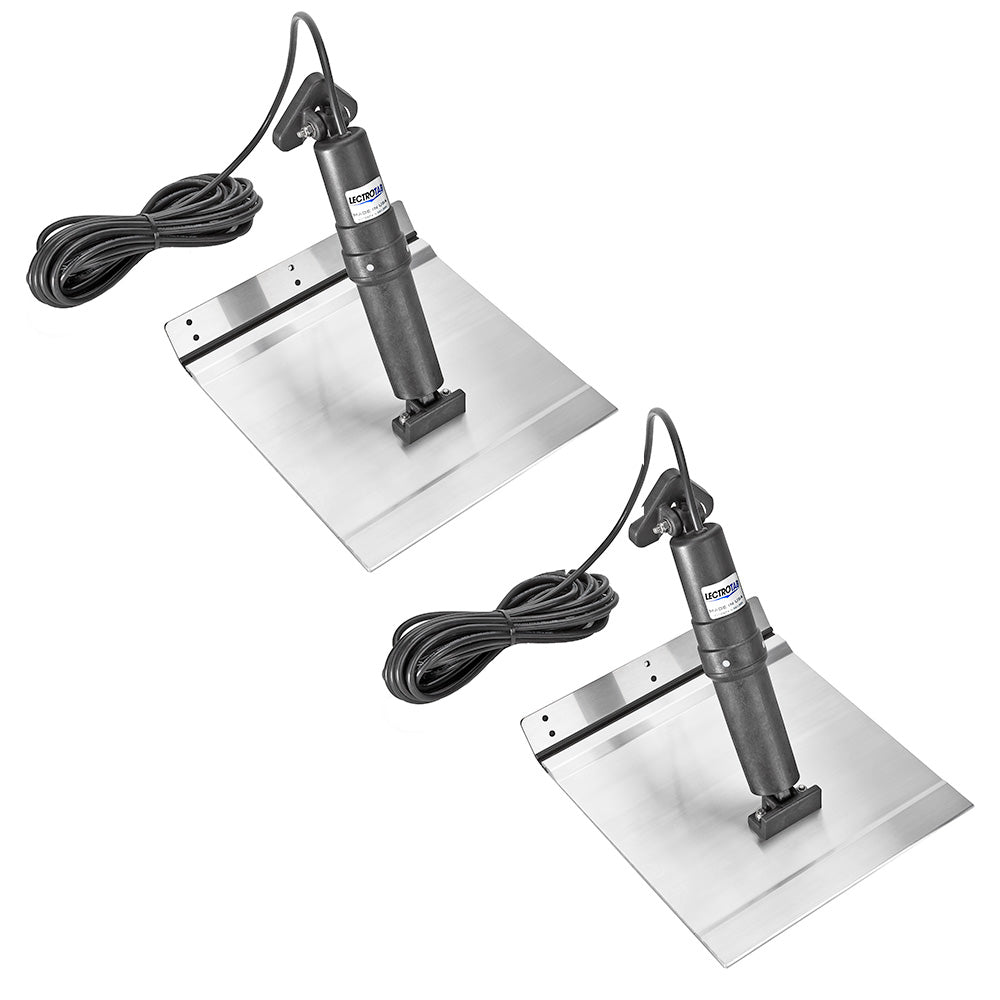

Lectrotab XKA Aluminum Alloy Trim Tab - 12x24

The XKA Aluminum Alloy Trim Tab - 12 x 24 is expertly engineered for aluminum-hulled boats, providing a robust and reliable solution for enhancing your vessel's performance. Designed for ease of installation and long-lasting durability, this trim tab system ensures smooth and efficient boat handling in various marine environments.

Features

• Sealed with a corrosion-resistant epoxy coating to withstand harsh marine conditions
• Equivalent strength to 10 gauge stainless steel for maximum durability
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure
• Protected upper ram seal location prevents damage from fouled ram or barnacle growth
• Internal pressure equalization system for consistent performance
• Integrated brake system prevents unwanted tab movement while underway or reversing
• Quiet, smooth operation minimizes noise and vibrations
• Actuators fully load tested to push up to 1000 lbs of force for reliable lift
• Non-metallic external structure resists corrosion and UV degradation, ensuring longevity

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 24" (30 x 61 cm)
Suitable Boat Length	28' to 48' (8.5 to 14.5 m)
Trim Tab Material	Marine-grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)

What's in the Box

• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

Note: Control switch sold separately.

Additional Specifications

Specification	Details
Actuator Type	Electro-Mechanical
Construction	Aluminum Alloy
Box Dimensions	5"H x 16"W x 24"L
Weight	23.7 lbs
UPC	850046155604

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
