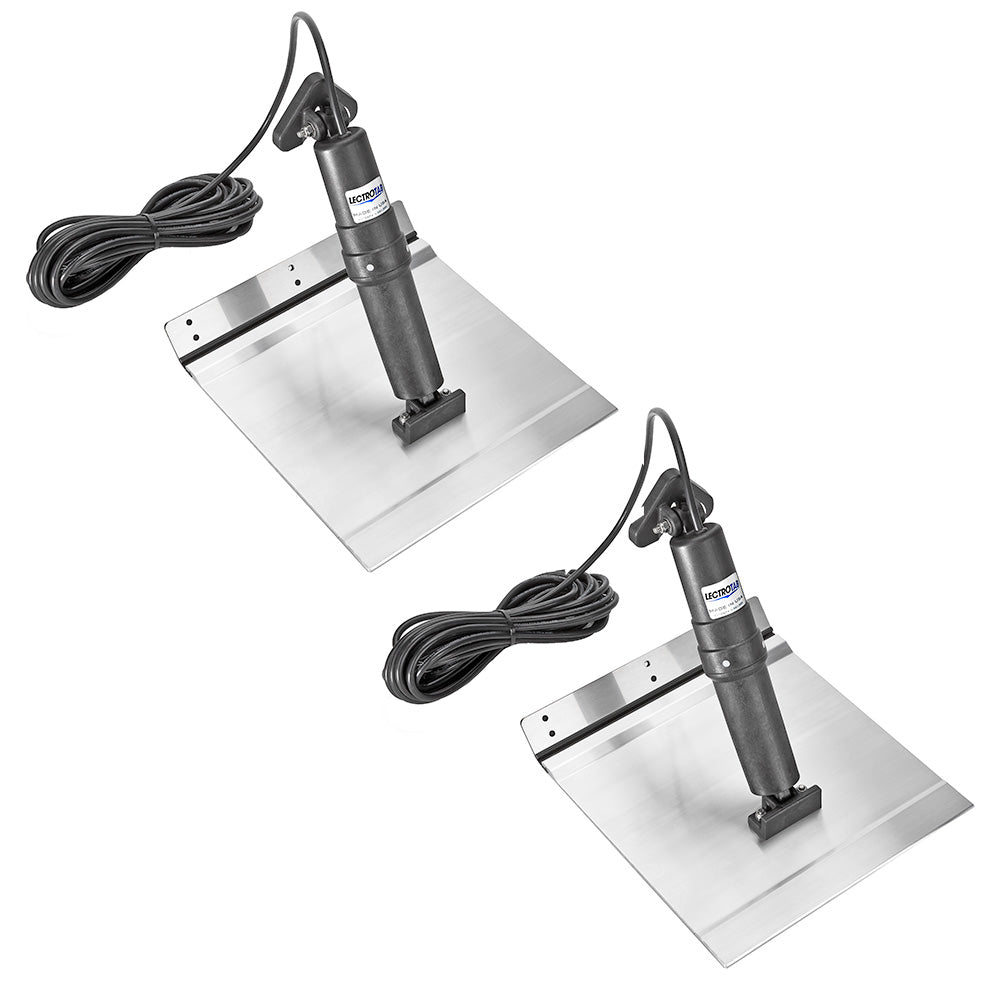

Lectrotab XKA Aluminum Alloy Trim Tab - 12x18

Upgrade your aluminum-hulled boat with the XKA Aluminum Alloy Trim Tab - 12 x 18, engineered for durability and performance. Designed specifically for marine environments, these trim tabs offer a maintenance-free, non-hydraulic solution that ensures precise tab positioning and maximum lift force without the risk of oil leaks.

Product Overview

The XKA Aluminum Alloy Trim Tabs are the ideal choice for boaters seeking a reliable and economical trim solution. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs feature an exceptionally strong "no-break" polypropylene hinge and a corrosion-resistant epoxy coating, ensuring longevity and resilience in harsh marine conditions.

Key Features

• Corrosion-Resistant Coating: All tabs are sealed with a durable epoxy coating to withstand the corrosive marine environment.
• Robust Construction: Equivalent in strength to 10 gauge stainless steel for enhanced durability.
• Long-Lasting Hinges: "No Break" polypropylene hinges tested over 300,000 cycles to a 90° bend without failure.
• Protected Ram Seal: Upper ram seal is safeguarded against damage from fouled rams or barnacle growth.
• Internal Pressure Equalization: Maintains optimal performance under varying pressure conditions.
• Brake System: Prevents unwanted tab movement while underway or reversing.
• Quiet Operation: Precision-engineered actuators ensure silent and smooth tab adjustments.
• High-Force Actuators: Capable of pushing up to 1000 lbs of force for reliable performance.
• Non-Metallic Structure: External components are made from non-metallic materials that resist corrosion and UV degradation.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 18" (30 x 46 cm)
Compatible Boat Length	20' to 40' (6 to 12 M)
Material	Marine grade 6005-T5 Aluminum Alloy
Actuator Type	Electro-Mechanical, 12 V DC
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)

What's Included

• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Comprehensive Instruction Manual

Note: Control switch is sold separately.

Sold as an Individual Unit

Additional Specifications

Specification	Details
Construction	Aluminum Alloy
Box Dimensions	5" H x 15" W x 24" L
Weight	20 lbs

Installation and Support

The XKA Aluminum Alloy Trim Tabs are designed for easy installation with either a standard or low-profile transom mounting bracket. The fully load-tested actuators ensure a seamless setup, and the self-contained unit simplifies the installation process by eliminating the need for internal components.

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
