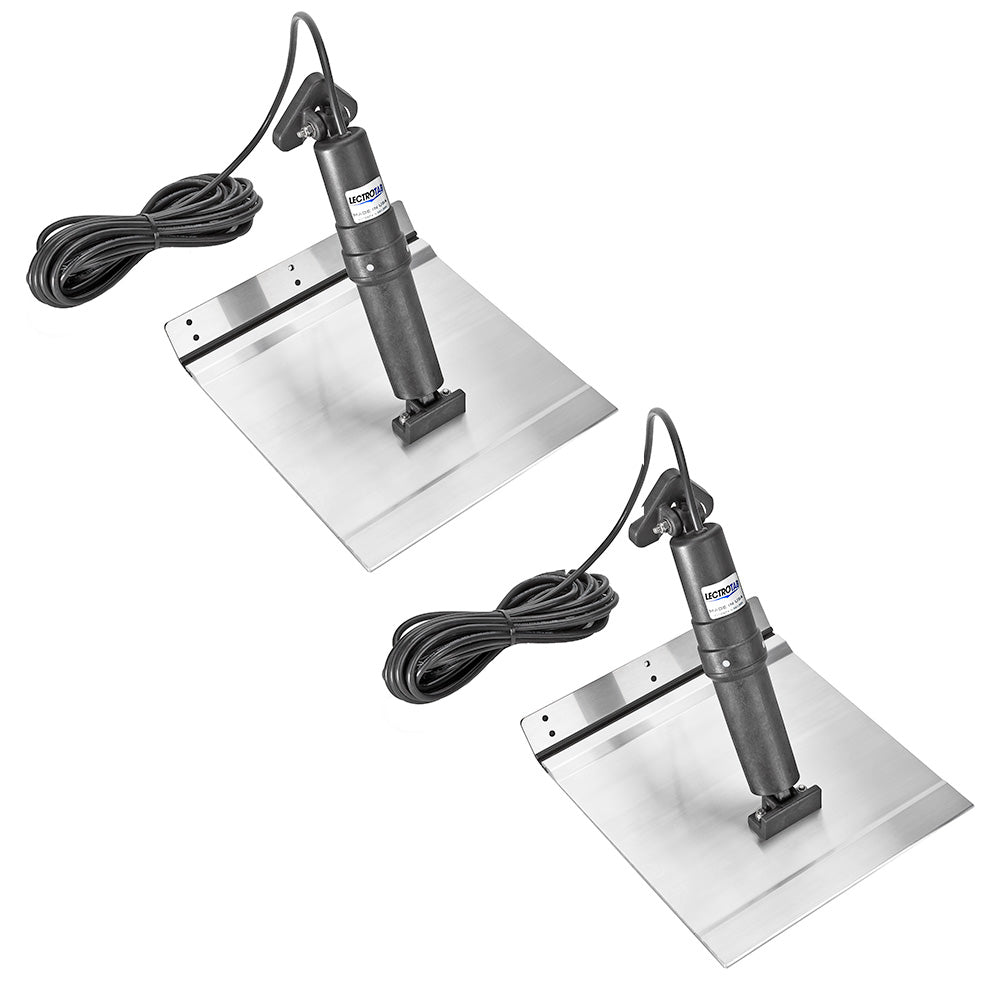

Lectrotab XKA Aluminum Alloy Trim Tab - 12x12

The XKA Aluminum Alloy Trim Tab - 12 x 12 is expertly engineered for aluminum-hulled boats, offering a cost-effective solution that enhances your vessel's performance and durability. Crafted from high-grade marine materials, these trim tabs deliver reliable, maintenance-free operation, ensuring smooth and quiet performance on the water.

Features

• Sealed with a corrosion-resistant epoxy coating to withstand harsh marine environments
• Equivalent strength to 10 gauge stainless steel for superior durability
• "No Break" polypropylene hinge tested over 300,000 cycles at 90° bends without failure
• Protective upper ram seal prevents damage from fouled rams or barnacle growth
• Internal pressure equalization system ensures optimal tab performance
• Integrated brake system prevents unwanted tab movement during operation
• Operates quietly, minimizing noise for a more enjoyable boating experience
• Actuators fully load tested to push 1000 lbs of force, providing maximum lift
• Non-metallic external structure resists corrosion and UV degradation, ensuring longevity

Technical Specifications

Specification	Description
Trim Tab Size (L x W)	12" x 12" (30 x 30 cm)
Compatible Boat Length	18' to 32' (5.5 to 9.5 m)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Construction	Aluminum Alloy
Box Dimensions	6"H x 15"W x 15"L
Weight	15.1 lbs
UPC	850046155567

What's Included

• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

Note: Control switch is not included. Sold as an individual unit.

Additional Specifications

• Internal brake system ensures tabs remain in position during operation
• Actuator assembly housed in a non-metallic, permanently sealed enclosure for added protection
• No components need to be installed inside the boat, simplifying the installation process
• Unlike hydraulic trim tabs, there is no risk of oil leakage, ensuring a cleaner and safer operation
• Actuators available with standard or low-profile transom mounting brackets to accommodate various boat designs
