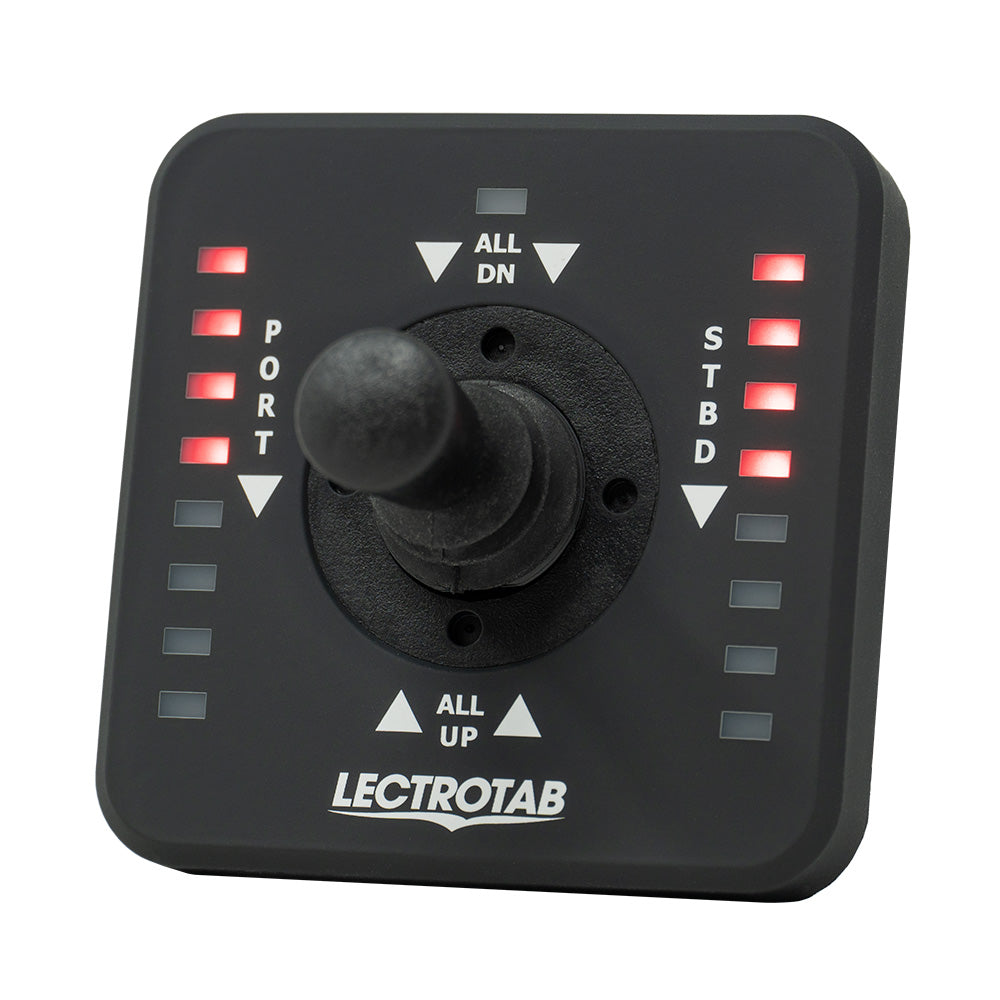

Lectrotab Joystick LED Trim Tab Control

The Joystick LED Trim Tab Control by Lectrotab provides boat owners with an advanced, user-friendly solution for managing trim tabs, enhancing both performance and the overall boating experience. Designed with marine enthusiasts in mind, this control system integrates seamlessly with your vessel's existing setup, offering reliability and ease of use on every journey.

Features

• Single, intuitive joystick control for precise trim tab adjustments
• Compatible with NMEA 2000 systems for seamless marine integration
• LED display for real-time monitoring of each trim tab position
• Microprocessor-based control ensures accurate trim tab operation with LED indicators
• Includes JLC-NMEA adapter for enhanced connectivity
• Synchronize both trim tabs’ movements up or down with a single joystick motion
• Dual station ready—expandable by adding a second JLC-11 and JR-* cable (sold separately)
• Automatically returns to the last trim tab position when the ignition is toggled off and back on
• Fully sealed and waterproof construction, resistant to UV degradation
• Automatic tab retraction and calibration when the key or accessory switch is turned off
• Effortless upgrade from any existing Lectrotab control system
• No external power module required, simplifying installation
• LED indicators automatically adjust brightness based on ambient light conditions
• Supports single or dual actuators per trim tab for flexible configurations
• Operates efficiently on both 12V and 24V DC electrical systems

Technical Specifications

Specification	Details
Display Color	Black
Number of Stations/Actuators	Single or Dual Station / 1 or 2 Actuators per Tab
Overall Width	3.0" (77mm)
Overall Height/Thickness	3.0" (77mm) / 2.0" (50mm)
Mounting Hole Cutout Diameter	2.625" (66.7mm)
DC Voltage	12V / 24V
Fuse Size Power Input (1 Actuator per Tab)	12V DC: 15 or 20 AMPs, 24V DC: 10 AMPs
Fuse Size Auxiliary (Must Connect)	1 to 2 AMPs

Quick Guide (PDF)
