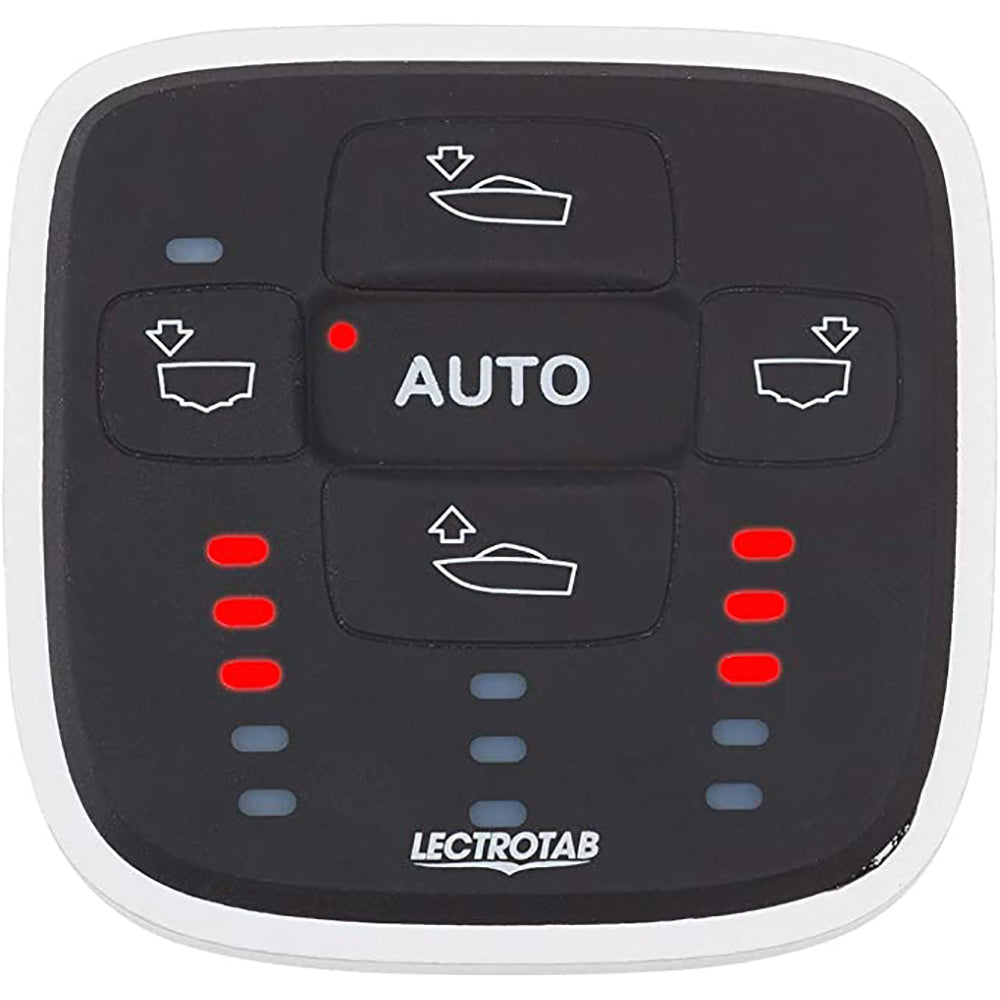

Lectrotab Automatic Leveling Control - Single Actuator

The Automatic Leveling Control (ALC) system is designed to provide boaters with a stable and level ride, regardless of changing wind conditions, water states, or passenger movements. By automatically adjusting your trim tabs, the ALC ensures optimal balance, enhancing both comfort and performance on the water.

Automatic Leveling Control - Single Actuator

The ALC system continuously monitors and adjusts your boat's trim tabs to counteract roll from side to side and pitch from bow to stern. This intelligent control not only smoothens your boating experience but also contributes to improved fuel efficiency by optimizing the vessel's balance.

Key Features

• Microprocessor-based control with LED indicators for trim tab positions
• Automates roll and pitch adjustments for stable navigation
• Integrated GPS functionality without the need for an external antenna or network
• Adapts swiftly to varying sea conditions for consistent performance
• Fully sealed and waterproof housing (IP68 rated) for durability
• UV-resistant materials prevent deterioration from sunlight exposure
• Disables automatic trim adjustments during turning to ensure safe maneuvering
• Compatible with planing and semi-displacement hulls over 20 feet
• Direct actuator connection to the ALC-1 display panel, eliminating the need for an external power module
• LED indicators automatically dim in low light and brighten in daylight
• Automatically retracts trim tabs when the boat is not in motion or via an optional key switch

Technical Specifications

Specification	Details
Display Color	Black
Actuators per Tab Plate	One (1)
Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Mounting Hole Cutout	2" (50 mm)
Operating Voltage	12 or 24 V

Sold as an individual unit.

Owner's Manual (PDF)

Brochure (PDF)
