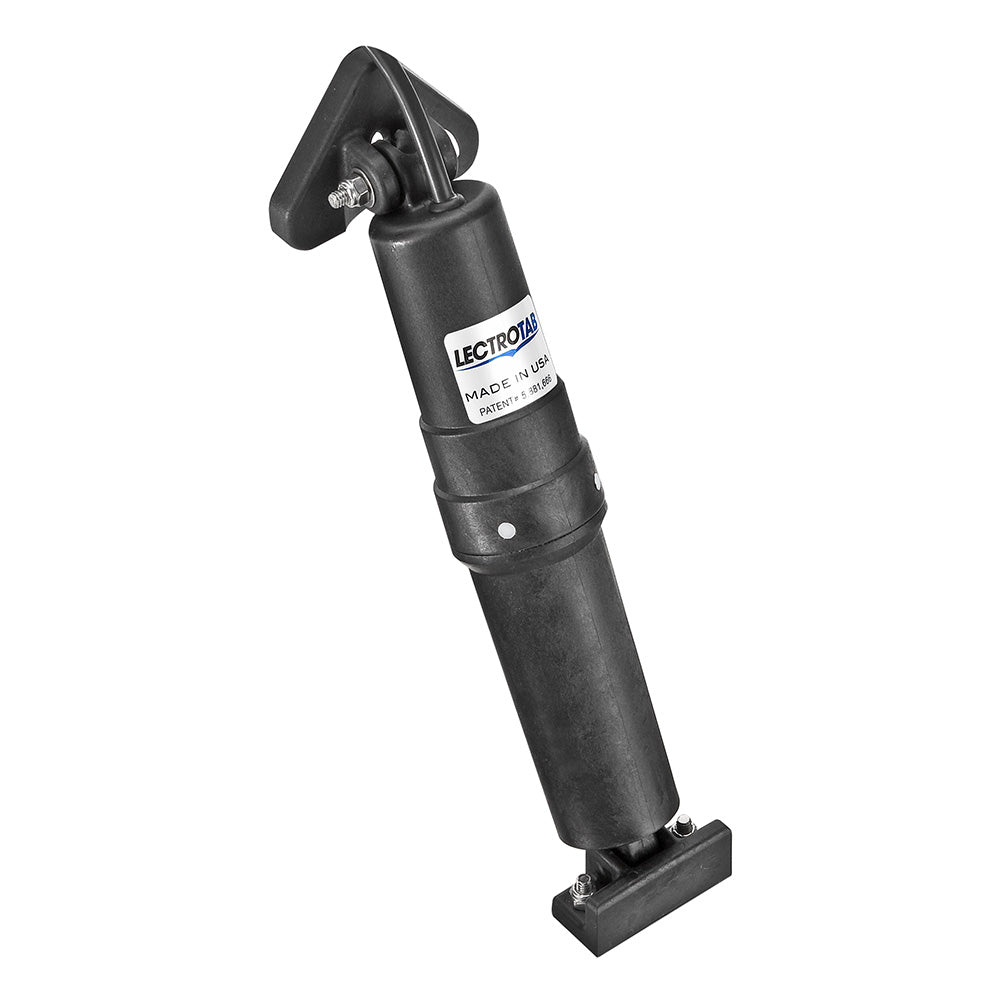

Lectrotab 12 V Trim Tab Actuator - 6 Cable

Enhance your boating experience with the 12 V Trim Tab Actuator featuring a robust 6' cable. Designed specifically for marine applications, this actuator ensures precise and reliable trim tab positioning, providing optimal performance and stability for your vessel without the hassle of hydraulic systems.

Exceptional Features for Superior Performance

• Durable Construction: The non-metallic external structure resists corrosion and withstands harsh marine environments, ensuring longevity and consistent performance.
• Maintenance-Free Design: Eliminate the need for hydraulic maintenance with a self-contained actuator that operates quietly and efficiently.
• High Load Capacity: Each actuator is fully load tested to push up to 1000 lbs of force, delivering maximum lift and precise control.
• Accurate Tab Positioning: Advanced engineering guarantees very accurate trim tab positioning for enhanced boat handling.
• Easy Installation: Includes a transom mounting bracket and requires no internal boat components, simplifying the installation process.
• Leak-Free Operation: Unlike hydraulic systems, this actuator has no oil to leak, ensuring a clean and safe operation.
• Quiet Operation: Enjoy a peaceful boating experience with an actuator designed for minimal noise during operation.
• Pressure Equalization: An internal pressure equalization system protects the actuator from damage due to fouling or barnacle growth.

Technical Specifications

Specification	Details
DC Voltage	12 V
Stroke Length	2.25" (57 mm)
Cable Length	6' (1.8 m)
Vertical Height	11.875" (302 mm)
Upper Mounting Bracket	Standard
Lower Mounting Bracket	Standard

Sold Individually

Owner's Manual (PDF)

Brochure (PDF)
