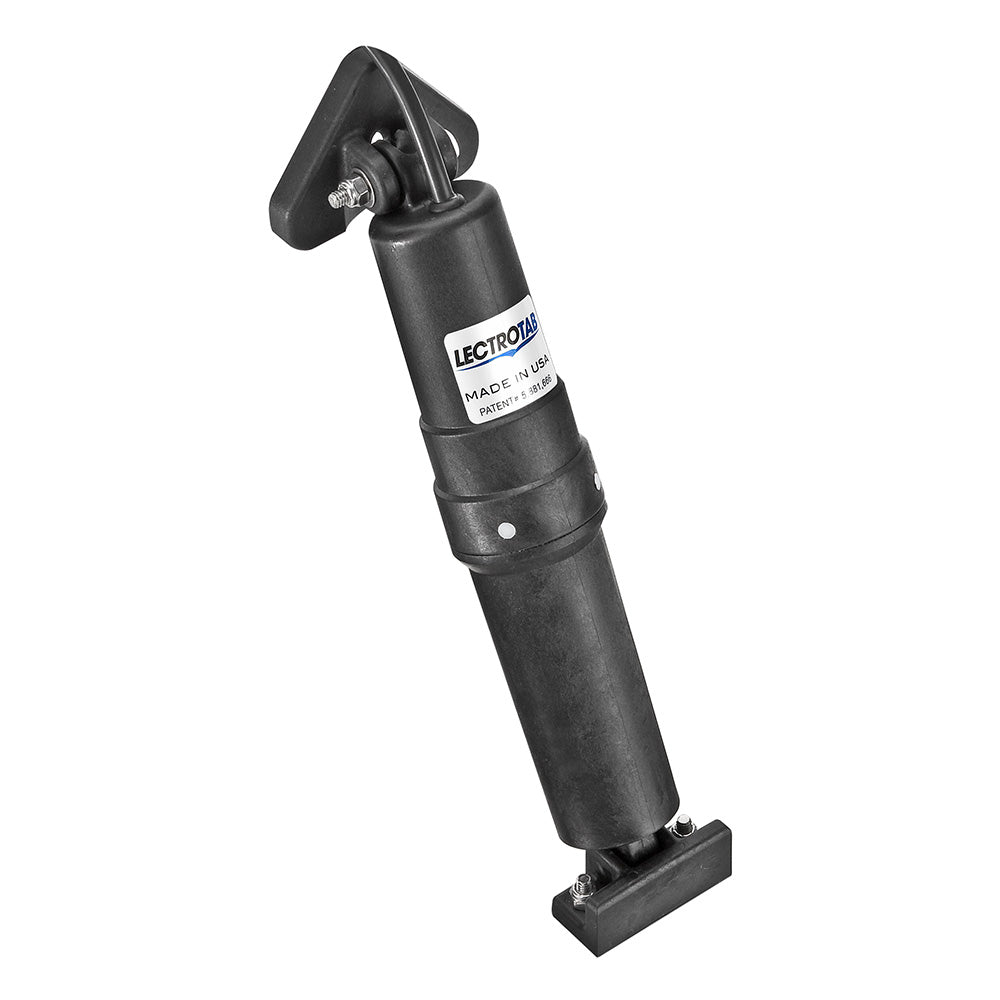

Lectrotab 12 V Trim Tab Actuator - 23 Cable

Enhance your boat's performance and handling with the 12 V Trim Tab Actuator featuring a 23' cable. Specifically engineered for marine environments, this precision actuator delivers quiet and reliable operation without the complexity of hydraulic systems. Its maintenance-free, corrosion-resistant design ensures long-lasting performance, providing boaters with an efficient and hassle-free solution for trim tab control.

Key Features

• Durable Construction: Non-metallic housing resists corrosion and withstands exposure to sun and water.
• Low Maintenance: Eliminates the need for hydraulic fluids, reducing the risk of leaks and simplifying upkeep.
• Precision Positioning: Ensures accurate trim tab placement for optimal boat handling and stability.
• High Lift Force: Capable of exerting up to 1000 lbs of force for maximum trim efficiency.
• Quiet Operation: Operates smoothly and silently, enhancing your boating experience.
• Internal Brake System: Prevents unwanted tab movement while underway or when reversing.
• Fouling Resistant: Upper ram seal protected from damage due to fouled conditions or barnacle growth.
• Pressure Equalization: Utilizes an internal pressure equalization system for enhanced performance.
• Easy Upgrades: Compatible with most popular hydraulic and electromechanical trim tab systems.

Technical Specifications

Specification	Details
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Upper Mounting Bracket	Standard
Lower Mounting Bracket	Standard

Note: Sold as an individual unit.

Owner's Manual (pdf)
Brochure (pdf)
