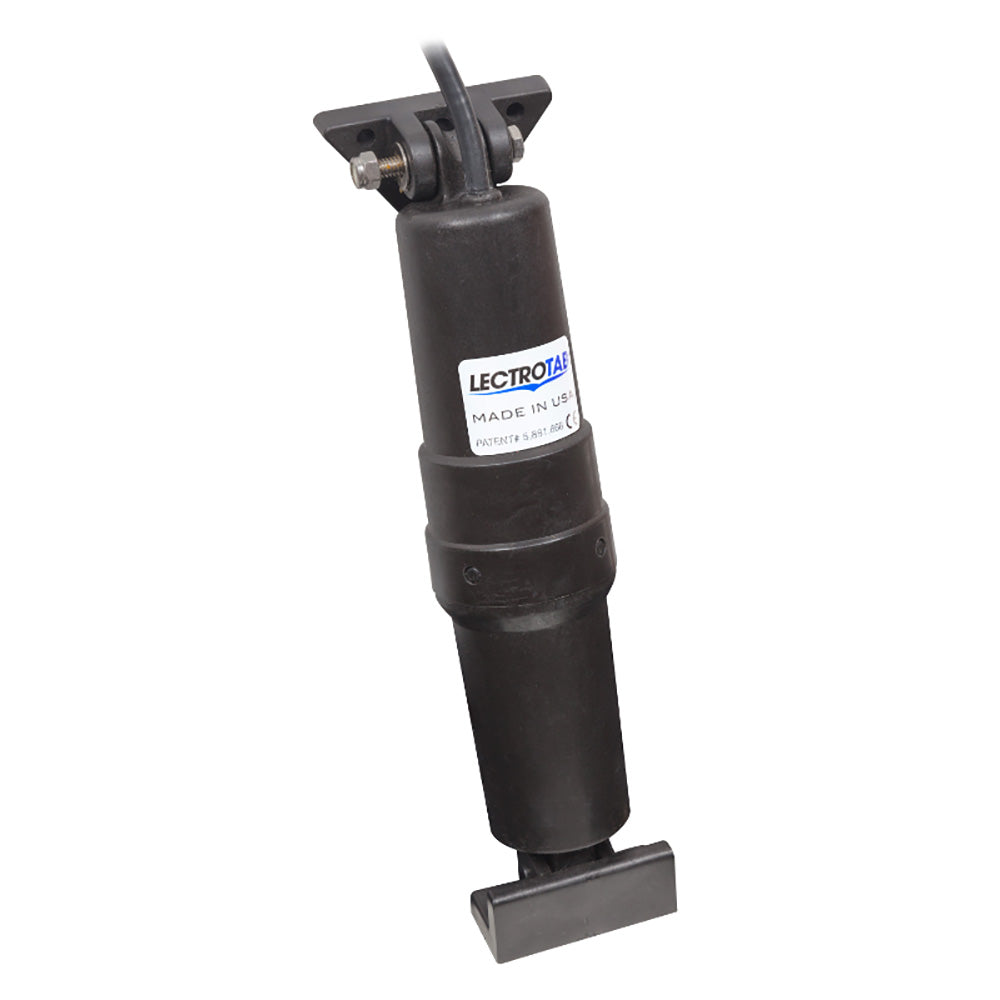

Lectrotab 12 V Short Trim Tab Actuator - 23 Cable

Enhance your boat’s performance with our 12 V Short Trim Tab Actuator, equipped with a durable 23' cable. Specifically designed for applications with limited vertical space, such as swim platforms, this trim tab actuator delivers precise control and reliable operation without the need for hydraulic systems. Enjoy a maintenance-free experience with corrosion-resistant construction and seamless installation, ensuring your trim tabs respond accurately and powerfully every time.

Key Features

• Perfect for swim platforms and areas with restricted vertical height
• Robust ram seal design prevents damage from fouled rams or barnacle growth
• Internal pressure equalization system for optimized performance
• Built-in brake system maintains tab position during navigation and reversing
• Quiet operation ensures a comfortable boating experience
• Generates up to 1000 lbs of push force for maximum lift
• Non-metallic exterior resists corrosion and withstands harsh marine environments

Technical Specifications

Specification	Details
Power Supply	12 V DC
Stroke Length	2.25" (57 mm)
Cable Length	23' (7 m)
Vertical Height	10" (254 mm)
Upper Mounting Bracket	Low Profile
Lower Mounting Bracket	Standard

Why Choose Our Trim Tab Actuator?

Unlike traditional hydraulic systems, our short trim tab actuator eliminates the risk of oil leaks, providing a cleaner and safer solution for your marine needs. The actuator is fully self-contained within a non-metallic, permanently sealed housing, ensuring longevity and durability without the need for additional components inside your boat. Installation is straightforward, thanks to the included mounting brackets, and the system's reliability guarantees precise tab positioning and consistent performance under all conditions.

Additional Information

Note: This actuator is sold individually.

Owner's Manual (PDF)
Brochure (PDF)
