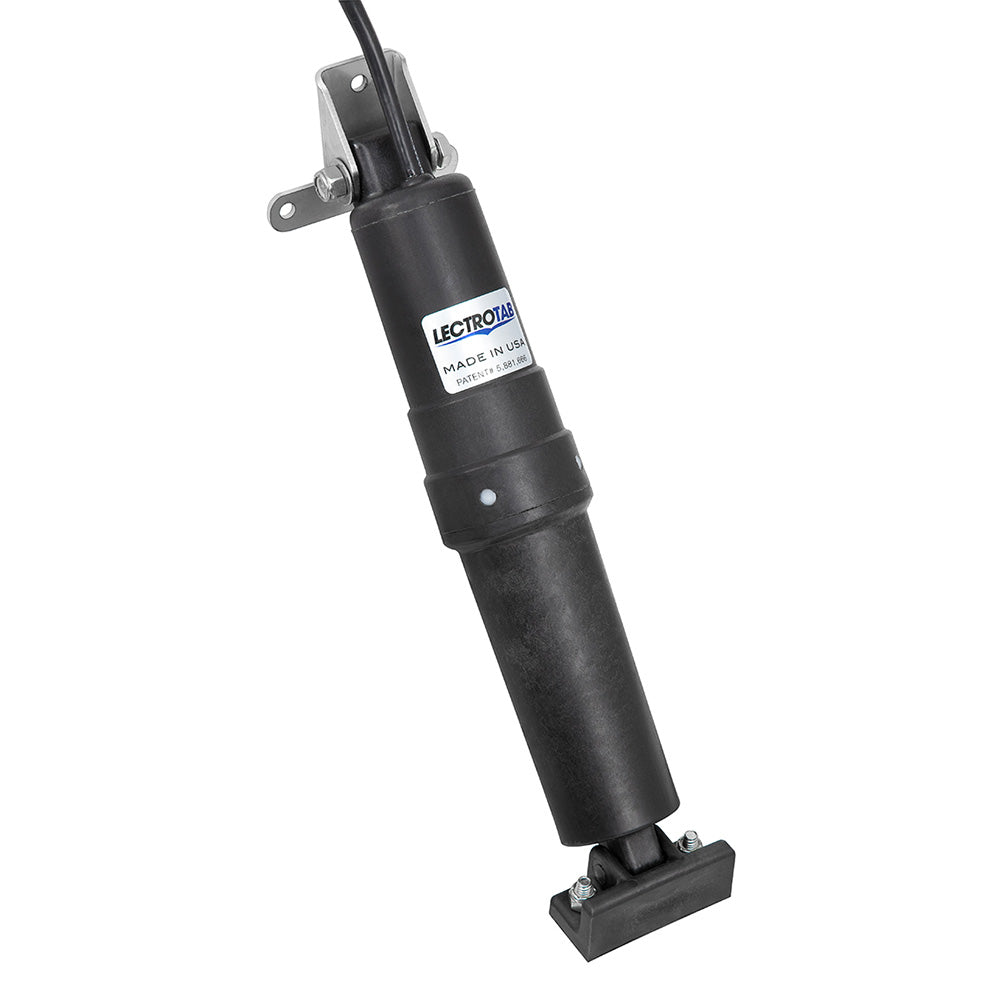

Lectrotab 12 V Heavy Duty Tab Actuator - 6 Cable

The Lectrotab 12V Heavy Duty Trim Tab Actuator with a 6-foot cable is engineered for high-performance marine applications. Whether you're navigating at high speeds or maneuvering in rough waters, this robust actuator ensures precise control and reliable operation, enhancing your boat's handling and stability.

Superior Construction for Demanding Marine Conditions

The heavy-duty actuator is built to withstand the harshest marine environments. Featuring a reinforced upper mounting boss and a 12-gauge stainless steel upper bracket, this actuator provides exceptional durability and strength. Its non-metallic external structure ensures corrosion resistance, preventing deterioration from sun exposure and prolonged contact with water.

Advanced Features for Optimal Performance

• Stainless Steel Upper Mounting Bracket: Provides additional strength and resistance against corrosion.
• Reinforced Actuator Upper Mounting Boss: Enhances durability and ensures secure attachment.
• Protected Ram Seal: The upper ram seal location is safeguarded against damage from fouled ram or barnacle growth.
• Internal Pressure Equalization System: Maintains consistent performance under varying pressure conditions.
• Integrated Brake System: Prevents unwanted tab movement when underway or reversing.
• Quiet Operation: Designed for minimal noise, ensuring a peaceful boating experience.
• High Load Capacity: Each actuator is fully load tested to handle up to 1000 lbs of force.
• Non-Metallic External Structure: Ensures long-lasting performance without corrosion or UV deterioration.

Maintenance-Free and Easy Installation

The Lectrotab trim tab actuator is designed for hassle-free installation and maintenance. Packaged in a non-metallic permanently sealed housing, the actuator is entirely self-contained, eliminating the need for internal boat components. Unlike hydraulic systems, there is no risk of oil leaks, making it a cleaner and more reliable choice for your vessel.

Technical Specifications

Specification	Details
DC Voltage	12 V
Stroke Length	2.25" (57 mm)
Cable Length	6' (1.8 m)
Vertical Height	11.875" (302 mm)
Upper Mounting Bracket	Stainless Steel - 12 gauge
Lower Mounting Bracket	Standard

Note: This actuator is sold individually.
