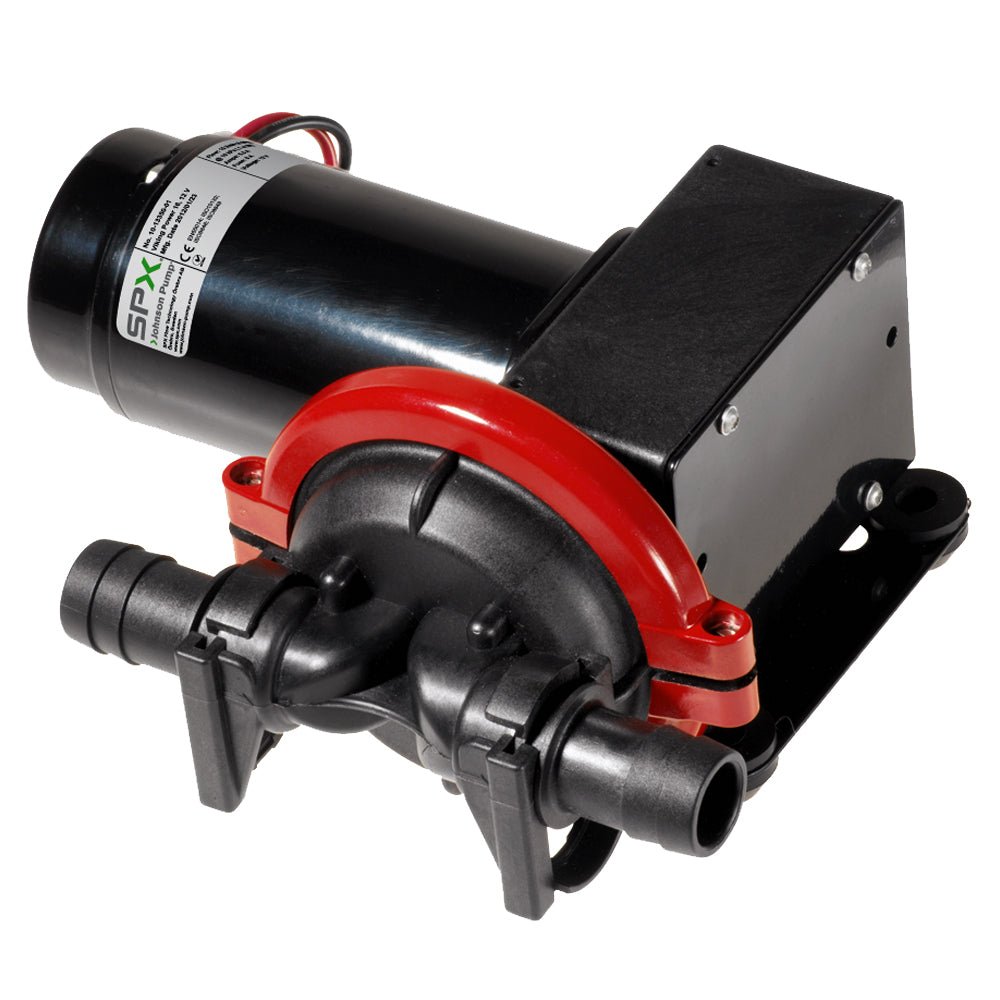

Johnson Pump Viking Power 16 Waste Pump - 24V

Ensure reliable wastewater management on your vessel with the Viking Power 16 - 24V, a high-performance diaphragm pump designed for marine and boating applications. Whether installed after the drain outlet in your wastewater system or serving as a bilge pump on any leisure craft, this versatile pump offers exceptional durability and ease of installation.

Key Features

• Modern, single-chamber, self-priming diaphragm pump with multiple pump/motor configurations
• Non-choke valves eliminate the need for in-line filters
• Operates dry and handles air-water mixtures with ease
• Self-priming capability up to 3 meters (9.8 feet)
• Quiet operation thanks to low pulse and muffled rubber bracket
• Engineered for longevity and easy maintenance
• Replaceable premium grade reinforced nitrile rubber diaphragm without system removal
• Comes with 1" hose, 3/4" hose, and 1/2" BSP KlickTite™ XL connectors
• Optional 90° KlickTite™ XL connectors available as accessories

Technical Specifications

Capacity, Open Flow	16 l/min (4.2 GPM)
Capacity at 0.1 bar	15 l/min (4.0 GPM)
Max Lift	3M (9.8')
Max Head	3M (9.8')
Connection	KlickTite™ XL connectors for 1" hose or 3/4" hose and 1/2" BSP threads; straight and 90° (optional)

Specifications

• Gallons Per Minute: 4.2 GPM
• Volts: 24V
• Type: Waste Pumps
• Box Dimensions: 5"H x 8"W x 10"L
• Weight: 5 lbs
• UPC: 7330717009014

Installation and Maintenance

The Viking Power 16 is designed for straightforward installation in various marine setups. Its self-priming feature allows for placement up to 3 meters above the pump, providing flexibility in your vessel's layout. The pump's design facilitates easy maintenance; you can replace the diaphragm without removing the pump from the system, ensuring minimal downtime.

Quiet and Efficient Operation

Enjoy peaceful journeys with the Viking Power 16’s low-pulse operation, achieved through its muffled rubber bracket. This pump maintains high efficiency while minimizing noise, making it an excellent choice for both new and used leisure crafts.

Included Accessories

The pump comes equipped with a 1" hose, a 3/4" hose, and 1/2" BSP KlickTite™ XL connectors. For added flexibility, 90° KlickTite™ XL connectors are available as an optional accessory.
