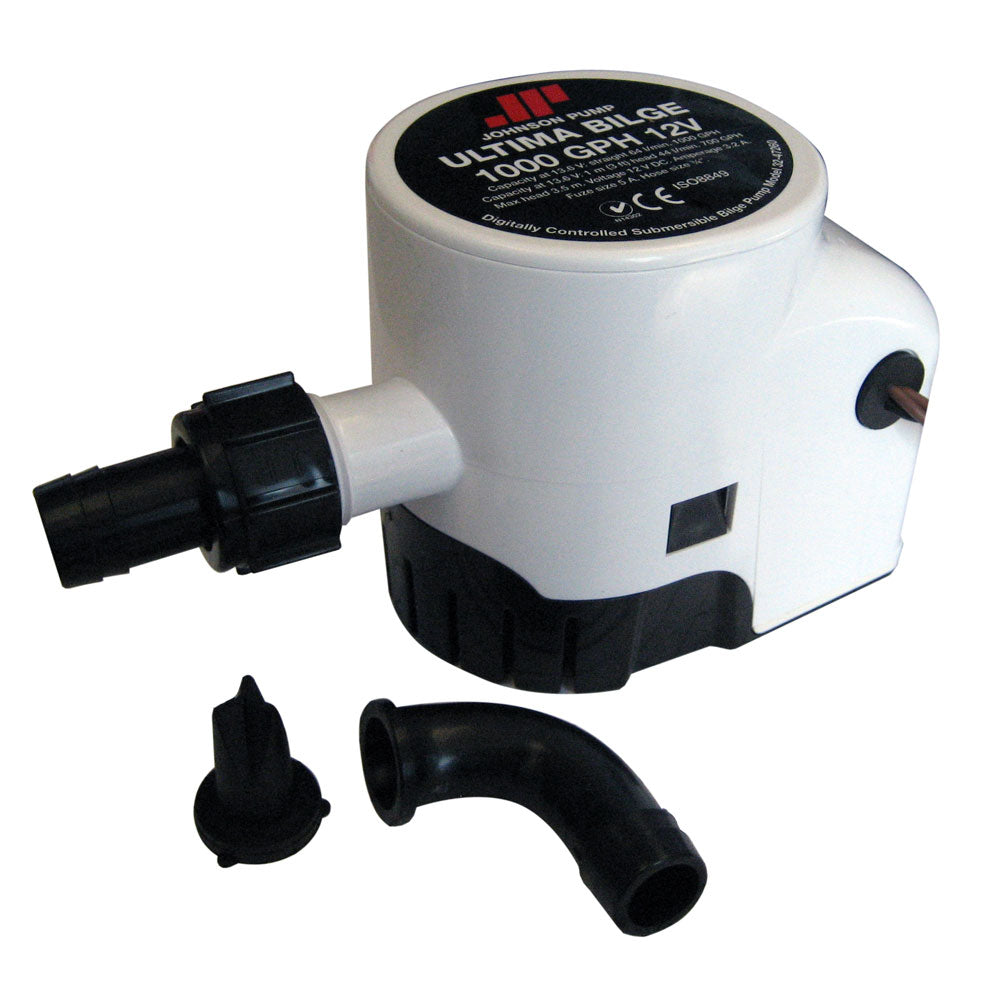

Johnson Pump Ultima Bilge 1000 GPH 3/4" Hose Dura Port

The Ultima Bilge Pump from Johnson Pump is the perfect solution for marine enthusiasts seeking reliability and efficiency in managing bilge water. Engineered with the advanced Ultima "field effect" sensing technology, this compact and sleek pump ensures seamless operation and longevity, making it an essential addition to any vessel. Available in multiple capacities of 600, 800, 1000, and 1250 GPH, the Ultima Bilge Pump operates on 12 V DC and is designed for easy installation and maintenance, providing peace of mind for years of dependable service.

Key Features

• Compact All-in-One Design: Streamlined unit that fits seamlessly into your boat's bilge area without taking up valuable space.
• Advanced Sensing Technology: Integrated Ultima Switch provides accurate water level detection directly within the pump body for automatic operation.
• Mercury-Free: Environmentally friendly design with no mercury components.
• Removable Clip-On Basket: Easily accessible basket for hassle-free debris removal and maintenance.
• Easy Clean-Out: Removable impeller cover allows for straightforward cleaning and maintenance without tools.
• Flexible Operation Modes: 3-wire configuration supports both automatic and manual override modes to suit your preferences.
• Tool-Free Maintenance: Designed for effortless upkeep, requiring no specialized tools.
• Energy Efficient: Optimized for minimal power consumption, ensuring longer battery life.
• Durable Water-Cooled Motor: Extended service intervals thanks to effective water cooling, enhancing motor longevity.

Technical Specifications

Specification	Details
Pump Body Material	ABS Plastic
Shaft Seal	Lip Seal
Shaft Material	Stainless Steel (SS2343)
Voltage	12 V DC
Flow Capacity	600 GPH - 44 l/min at 3 ft head (13.6 V) 800 GPH 1000 GPH - 64 l/min straight at 13.6 V 1250 GPH
Amperage	3.2 A
Fuse Size	5 A
Connection Size	3/4"
Dimensions	142 mm (6") L x 82 mm (3.2") W x 105 mm (4.1") H
Weight	0.66 kg (23.3 oz.)
Operation Type	Automatic
Outlet Size	3/4"
UPC	729321472609
Box Dimensions	4"H x 8"W x 9"L
Weight	1.4 lbs

Installation and Accessories

The Ultima Bilge Pump is designed for straightforward installation on your vessel. For models ranging from 600 GPH to 1000 GPH, we include easy-to-install Dura-Port discharge ports that prevent stress cracking from over-tightened hose clamps. Each pump comes with both a straight and a 90-degree smooth elbow Dura-Port, providing flexibility to fit various installation scenarios.

All versions include a removable check valve to ensure unidirectional flow and prevent backflow, enhancing the pump's reliability and performance.

Maintenance and Operation

Maintaining your Ultima Bilge Pump is effortless, thanks to its removable clip-on basket and impeller cover, which allow for quick clean-outs without the need for tools. The water-cooled motor and lip seal shaft ensure the pump operates smoothly with minimal maintenance, extending its service life.

Additionally, the pump can be manually operated via the Johnson Pump bilge control panel, providing you with full control over your bilge management system.

Certifications

CE-Approved

Additional Resources

Owner's Manual (PDF)
