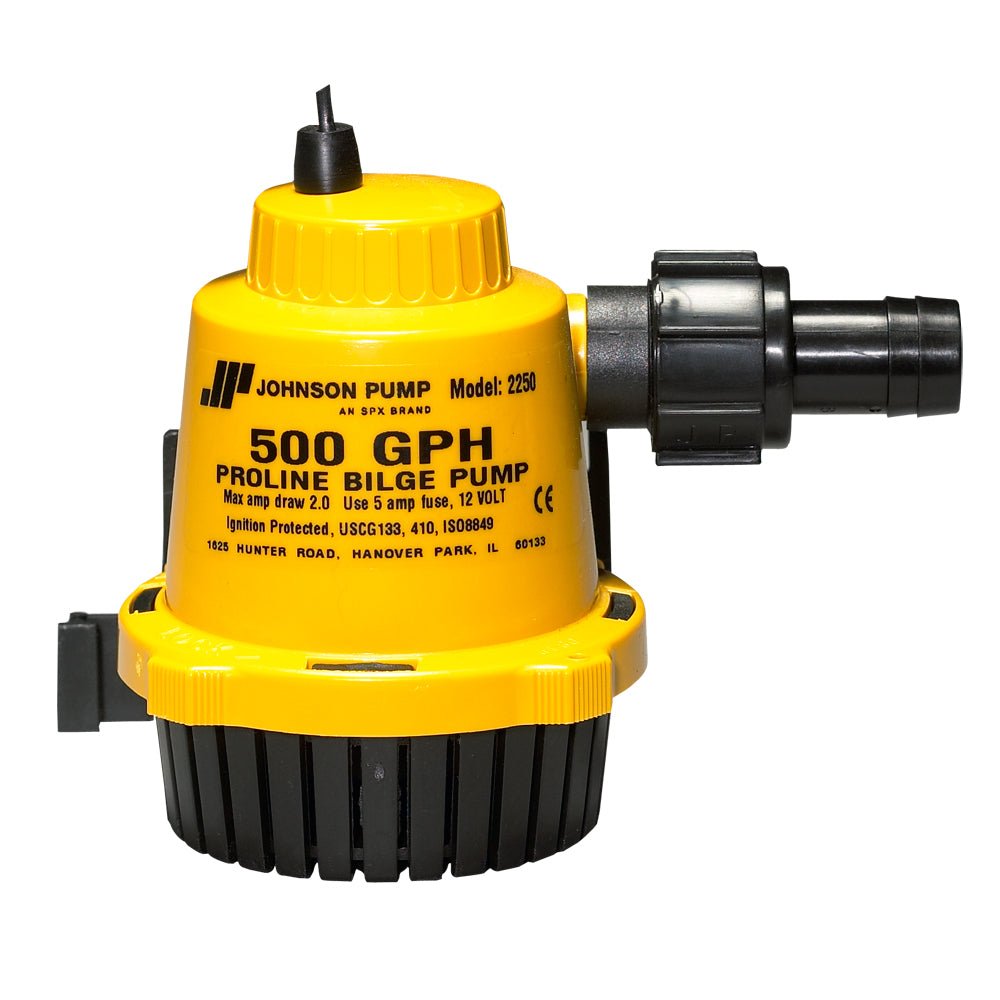

Johnson Pump Proline Bilge Pump - 500 GPH

The Proline Bilge Pump is a reliable and efficient solution for keeping your vessel dry. Designed specifically for marine and boating applications, this electric bilge pump ensures optimal performance even in challenging conditions. With its robust construction and automatic operation, the Proline Bilge Pump offers peace of mind by effectively removing water from your boat's bilge, preventing potential damage and maintaining your vessel's integrity.

Key Features

• High Capacity: Delivers up to 630 Gallons Per Hour (GPH) to quickly remove water from your vessel.
• Automatic Operation: Equipped with a float switch that activates the pump when water levels rise, ensuring continuous protection without manual intervention.
• Durable Construction: Built with high-quality materials to withstand the harsh marine environment, ensuring long-lasting performance.
• DuraPorts Included: Comes with DuraPorts for secure and leak-proof connections, enhancing the overall reliability of the pump.
• Compact Design: Its compact size allows for easy installation in tight spaces, making it suitable for various boat types.

Specifications

Attribute	Details
Gallons Per Hour	500 GPH
Capacity (3' Head, 13.6V)	33 L/M - 525 GPH
Capacity Straight (13.6V)	40 L/M - 630 GPH
Amperage	2.5A
Fuze Size	5A
Connection	3/4"
Operation	Automatic
Volts	12V
Type	Electric
Box Dimensions	4"H x 6"W x 7"L
Weight	0.85 lbs
UPC	729321225021

Installation Guide

Installing the Proline Bilge Pump is straightforward and can be accomplished with minimal tools. Follow these steps to ensure a secure and efficient setup:

1. Select Installation Location: Choose a dry area within the bilge of your vessel where the pump can operate without obstruction.
2. Mount the Pump: Secure the pump using the included hardware, ensuring it is firmly attached to prevent movement during operation.
3. Connect the Hoses: Attach the inlet hose to the pump's inlet port and the outlet hose to the discharge port. Use the provided DuraPorts for a leak-proof connection.
4. Electrical Connection: Connect the pump to your vessel's 12V electrical system, ensuring proper amperage and fuse size as specified.
5. Test the Pump: Activate the pump to verify proper operation and check for any leaks or issues in the connections.

Why Choose Proline Bilge Pump?

The Proline Bilge Pump stands out in the marine market due to its exceptional performance, durability, and ease of installation. Whether you're a seasoned mariner or a recreational boater, this bilge pump provides the reliability you need to keep your vessel safe and dry. Invest in the Proline Bilge Pump for unmatched quality and dependability on every voyage.
