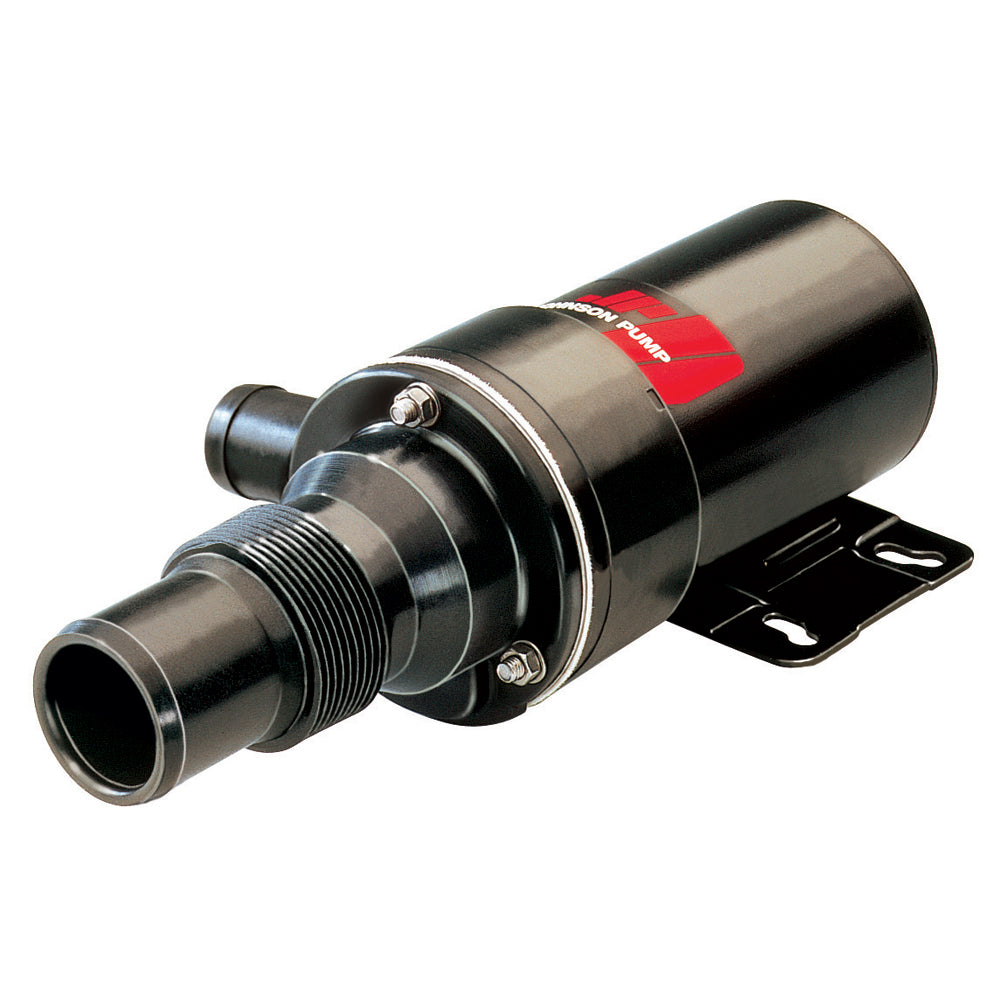

Johnson Pump Macerator Pump 12V

The Johnson Pump TA3P10-19 12V Macerator Pump is a reliable solution for managing toilet and livewell waste on your vessel. Engineered for marine and boating applications, this pump effectively shreds waste before pumping it to or from the holding tank, ensuring smooth and hygienic operations onboard.

Product Overview

The TA3P10-19 Macerator Pump is designed to be installed as close as possible to the holding tank discharge outlet or the bowl discharge outlet. Its robust construction and efficient performance make it an essential component for maintaining waste management systems on boats and marine vessels. For optimal performance and longevity, it is recommended to use only unbleached lavatory paper.

Key Features

• Ignition protected motor, conforming with ISO 8846 Marine standards
• Easy installation and replacement with the included mounting bracket
• Highly energy-efficient for prolonged use
• Durable rotary cutter casing made from PET (thermoplastic polyester)
• Direct connection capability to sewage lines or holding tanks
• High capacity: 37 liters per minute (10 GPM) at 0.2 bar (6.7 ft)

Technical Specifications

Voltage	12V DC (with built-in thermal protection)
Motor	Ignition protected
Pump Body	Phenol Plastic (PF)
Impeller	Nitrile
Cutter Casing	Thermoplastic Polyester (PET)
Shaft	Stainless Steel
Seal	Lip Seal
Inlet Connection	1-1/2" (38 mm) hose or 1-1/2" NPT
Outlet Connection	1" (25.4 mm) hose
Amperage	15 A
Fuse Size	20 A
Capacity	37 l/min (10 GPM) at 0.2 bar (6.7 ft)
Dimensions	230 mm L x 108 mm W x 82 mm H (9.06" x 4.25" x 3.23")
Weight	1.9 kg (4.2 lbs)
Box Dimensions	4" H x 6" W x 11" L
Box Weight	4.75 lbs
UPC	787766709018

Certification: CE-Approved

Installation Guide

To ensure optimal performance, install the TA3P10-19 Macerator Pump as close as possible to the holding tank discharge outlet or the bowl discharge outlet. Secure all connections properly and adhere to marine installation standards to prevent leaks and ensure efficient waste management.

Maintenance Tips

Regular maintenance is crucial for the longevity and efficiency of your macerator pump. Periodically inspect the impeller and cutter casing for any signs of wear or blockage. Always use unbleached lavatory paper to minimize clogs and reduce strain on the pump. Additionally, check the motor and seals regularly to ensure they remain in good working condition.

Watch the Pump in Action
