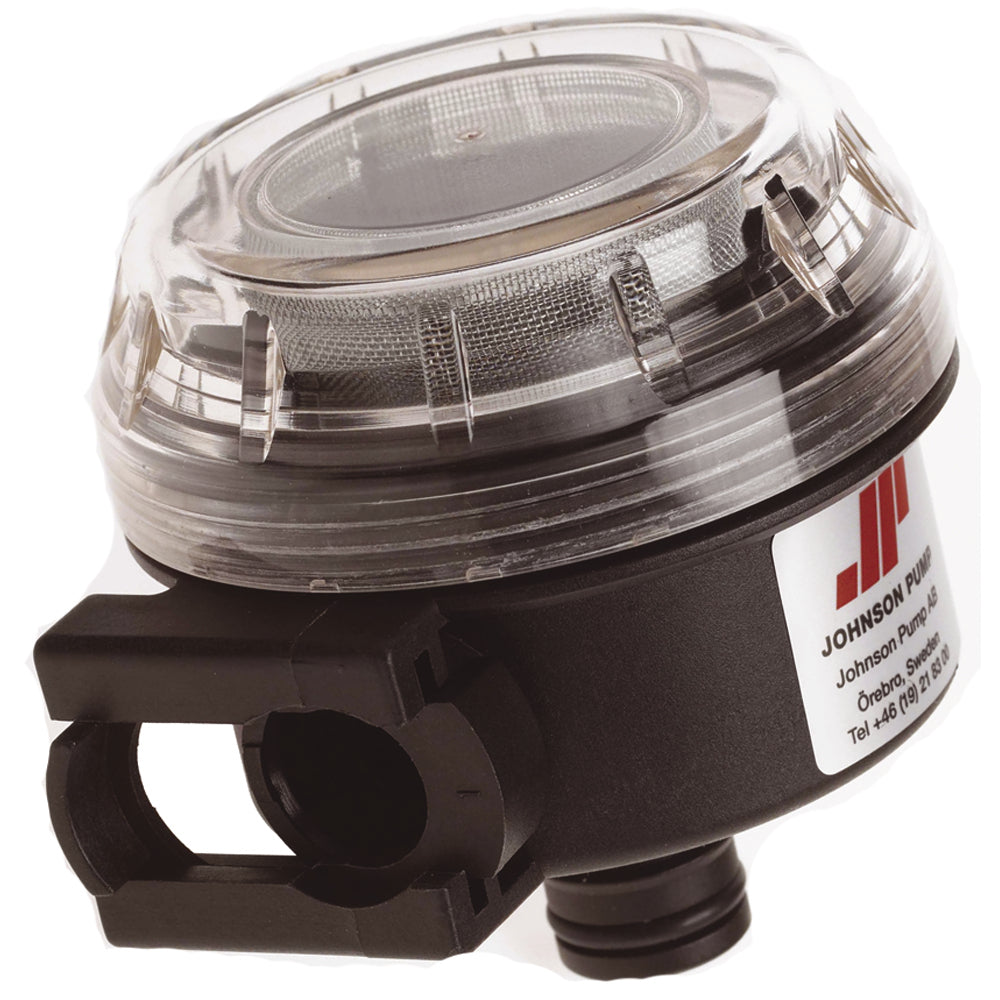

Johnson Pump Inlet Strainer - 40 Mesh Screen

PUMProtector™ Strainer is an essential component for marine and boating applications, designed to ensure your vessel's water intake remains free from debris and contaminants. Its user-friendly design allows for easy installation, inspection, and maintenance, providing reliable performance even in the most demanding marine environments.

Features

• Transparent Covers: Allows for quick and easy inspection of the strainer, ensuring optimal performance without the need for disassembly.
• KlickTite™ Connectors: Offers a wide variety of port connectors for effortless installation and removal, enabling you to detach the entire unit for thorough cleaning wherever it's most convenient.
• High-Quality Materials: Constructed from durable materials to withstand harsh marine conditions, ensuring longevity and minimal maintenance.

Material Composition

Component	Material	Details
Strainer	Polyamide 66	Black
Cover	Acrylic	Clear, Part No. 01-36012 P02
Screen	Stainless Steel	40 Mesh
O-rings	Silicone and EPDM	Reliable Sealing

Specifications

Dimensions

Dimension	Measurement
Diameter	80 mm / 3.15"
Height	60 mm / 2.35"
Weight	0.15 kg / 0.33 lbs
Mesh Size	40

Temperature Ratings

Temperature Type	Max Temperature
Max Liquid Temperature	+50°C / +120°F
Max Temperature for Drinking Water	+30°C / +85°F

KlickTite™ Connectors

Equipped with built-in KlickTite™ connectors, the PUMProtector™ Strainer supports:

• 1 x 1/2" Hose / 3/8" NPT
• 1 x 3/4" Hose / 1/2" NPT

Installation and Maintenance

The PUMProtector™ Strainer's design facilitates straightforward installation with its KlickTite™ connectors. To maintain optimal performance, the unit can be easily removed for thorough cleaning, ensuring your marine systems remain efficient and reliable.

Owner's Manual (PDF)
