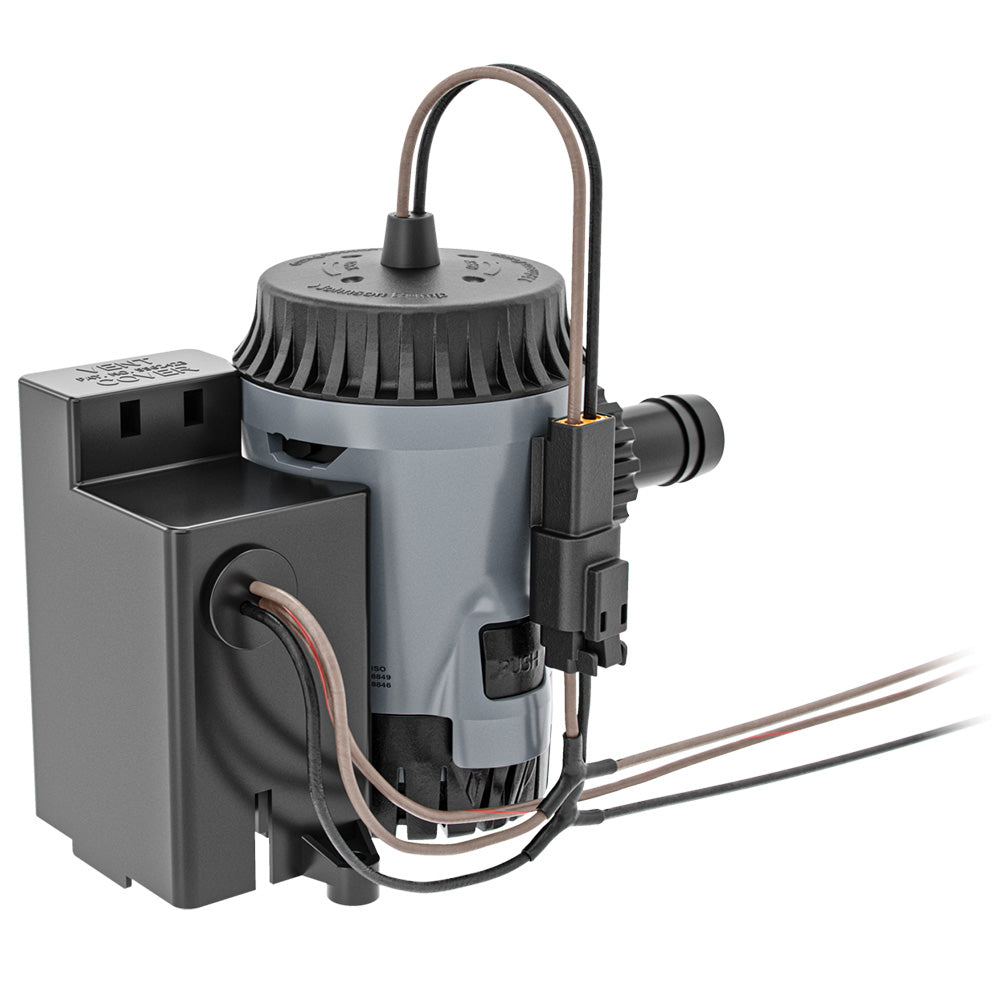

Johnson Pump Aqua Void Electro-Magnetic Combo 800 GPH Bilge Pump - 12V

The Aqua Void Electro-Magnetic Combo 800 GPH Bilge Pump is your ultimate solution for keeping your boat's bilge dry and ensuring a safe, worry-free boating experience. Designed specifically for marine environments, this 12V bilge pump combines advanced features with robust construction to deliver exceptional performance and reliability under any condition.

Advanced Quick-Change Motor Connection

Experience the industry's first quick-change motor connection, allowing you to effortlessly swap out cartridge motors or upgrade capacity without the hassle. This innovative feature makes maintenance and scalability simpler than ever, ensuring your bilge pump adapts to your boating needs with ease.

Effortless Installation and Maintenance

The Aqua Void Bilge Pump is engineered for convenience, especially in tight bilge spaces. Its single-handed access design and reinforced click-in basket allow for easy installation, cleaning, and inspection. Plus, with no tools required for maintenance, you can keep your pump running smoothly without complete disassembly.

Superior Efficiency and High Flow Rate

Powered by an enhanced motor and a high-flow impeller, the Aqua Void delivers a remarkable 800 GPH flow rate while maintaining energy efficiency. This ensures rapid water removal from your bilge, conserving energy and enhancing overall performance during your marine adventures.

Reliable Performance in Demanding Conditions

Built with durability in mind, the Aqua Void Bilge Pump features a stainless steel (316) shaft and robust ABS body to withstand harsh marine environments. Johnson Pump Marine's reputation for reliability shines through in this meticulously engineered pump, providing peace of mind on every voyage.

Automatic Operation with Electro-Magnetic Float Switch

Equipped with a non-clogging electro-magnetic float switch, the Aqua Void operates automatically based on the bilge water level. This intelligent feature ensures the pump activates and deactivates precisely when needed, enhancing convenience and preventing potential water accumulation.

Comprehensive Features

• Enhanced efficiency with a high-flow impeller design for increased flow rate
• Quick-change motor connection for easy cartridge motor swaps and capacity upgrades
• Water-cooled motor ensures long service intervals
• Compact, all-in-one motor/impeller unit with a stainless steel (316) shaft
• Tool-free maintenance with pump casing remaining attached to the boat and hoses
• Durable dura-port discharge ports prevent stress cracking from over-tightened hose clamps
• Includes both straight and 90-degree smooth elbow dura-ports, plus a removable check valve
• Complies with ISO 8849 marine standards
• Molded T-Slot for easy installation with switches

Technical Specifications

Specification	Details
Pump Size	800 GPH
Capacity Straight (12V)	785 GPH (50 I/min)
Voltage	12V
Current	3.7A
Fuse	5A
Hose Connection	3/4 in.
Wire Size	16 GA, TAC
Weight	17.3 oz (0.49 kg)
Body Material	ABS
Dura Port Material	PA66/GF - Nylon
Shaft Material	316 Stainless Steel
Shaft Seal	Nitrile Rubber
Motor Cartridge	PC-ABS
Pump Dimensions (W x H x L)	3.88 x 4.69 x 6.17 inches (99 x 120 x 157 mm)
Gallons Per Hour	800 GPH
Operation	Automatic
Outlet Size	3/4"
Type	Pumps/Drives
Box Dimensions	4"H x 6"W x 6"L
Weight	1.2 lbs
UPC	7330717017965

Additional Resources

For more information, download the Quick Guide (PDF).
