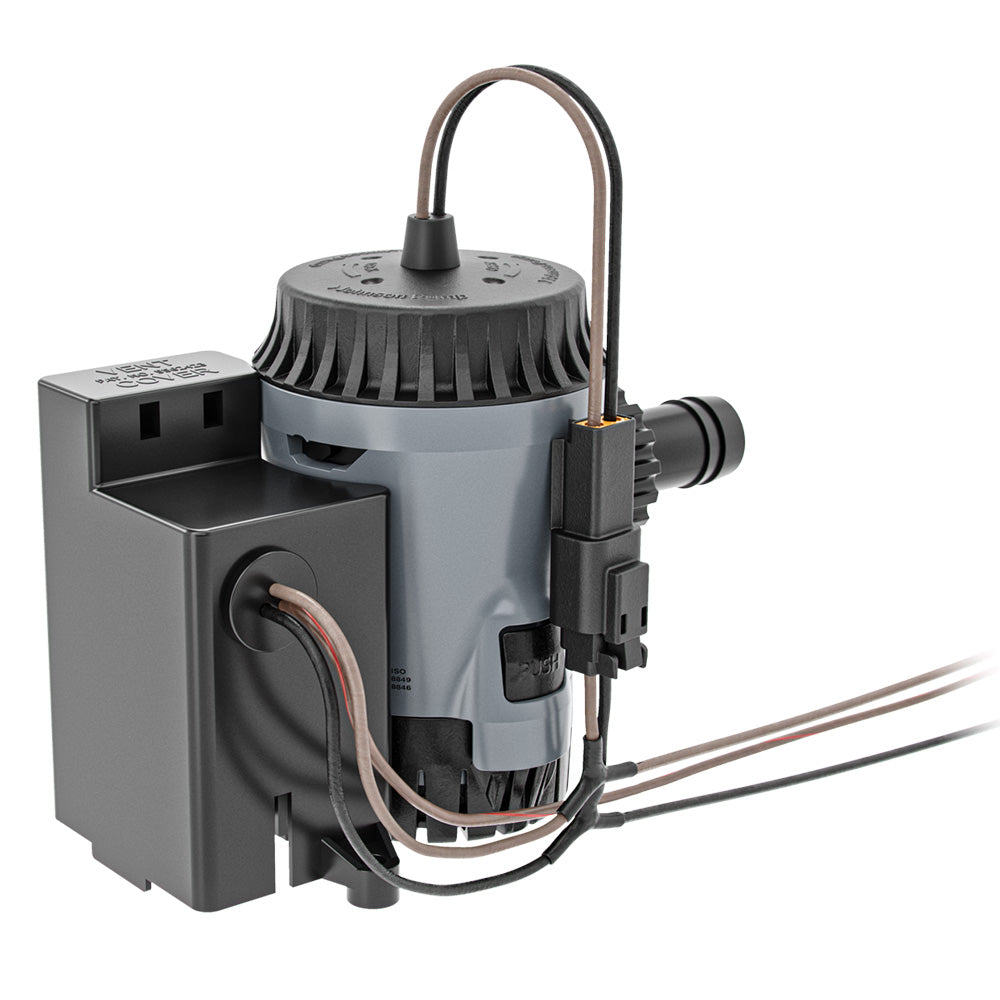

Johnson Pump Aqua Void Electro-Magnetic Combo 500 GPH Bilge Pump - 12V

The Aqua Void Electro-Magnetic Combo 500 GPH Bilge Pump is an essential component for any boating enthusiast, combining innovative features with reliable performance to keep your vessel's bilge dry and your boating experience worry-free.

Automated Bilge Management

Equipped with a non-clogging electro-magnetic float switch, the Aqua Void Bilge Pump ensures seamless automatic operation. The switch intelligently monitors the water level in the bilge and activates the pump when necessary, providing continuous protection without manual intervention.

Industry-First Quick-Change Motor Connection

Experience unprecedented ease with the Aqua Void's quick-change motor connection. This groundbreaking feature allows for hassle-free cartridge motor replacements or capacity upgrades. As the only cartridge motor pump with an included harness connection, it eliminates the need for cutting and splicing wires, simplifying maintenance and upgrades.

Enhanced Efficiency and High Flow Rate

Powered by an advanced motor and a high-flow impeller, the Aqua Void delivers an impressive 500 GPH, ensuring rapid water removal while maintaining energy efficiency. This design not only boosts performance but also extends the pump's operational lifespan.

Durable and Reliable Construction

Johnson Pump Marine is synonymous with reliability, and the Aqua Void is no exception. Crafted with robust materials, including a stainless steel (316) shaft and a water-cooled motor, this bilge pump is built to withstand demanding marine environments, providing dependable performance you can trust.

Compact Design for Easy Installation

Designed for tight bilge spaces, the Aqua Void features a compact, all-in-one motor and impeller unit. Its single-handed access and reinforced click-in basket make installation, cleaning, and inspection straightforward, saving you time and effort.

Simple Maintenance and Long Service Intervals

Maintenance is effortless with no need for complete disassembly. The pump casing remains attached to both the boat and the hoses, allowing for easy access and upkeep. Water cooling of the motor further contributes to longer service intervals, reducing the frequency of maintenance tasks.

Comprehensive Features

• Increased efficiency with a high-flow impeller design delivering 500 GPH
• Quick-change motor connection for easy cartridge motor swaps and capacity upgrades
• Water-cooled motor ensuring long service intervals
• Compact, all-in-one unit with a durable stainless steel (316) shaft
• Tool-free maintenance with the ability to leave the pump casing attached
• Easy-to-install dura-port discharge ports preventing stress cracking from over-tightened hose clamps
• Includes both straight and 90-degree smooth elbow dura-ports plus a removable check valve
• Meets ISO 8849 marine standards for international reliability
• Molded T-Slot for effortless installation with switches
• Integrated electro-magnetic float switch for automated operation

Technical Specifications

Attribute	Details
Pump Size	500 GPH
Capacity Straight (12V)	600 GPH (38 in³/min)
Voltage	12V
Current	2.7A
Fuse Rating	3.5A
Hose Connection	3/4 in.
Wire Size	16 GA, TAC
Weight	15.9 oz (0.45 kg)
Body Material	ABS
Dura Port Material	PA66/GF - Nylon
Shaft Material	316 Stainless Steel
Shaft Seal	Nitrile Rubber
Motor Cartridge Material	PC-ABS
Pump Dimensions (W x H x L)	3.88 x 4.69 x 6.17 inches (99 x 120 x 157 mm)
Operation	Automatic
Outlet Size	3/4"
Type	Pumps/Drives
Box Dimensions	4"H x 6"W x 6"L
Weight	1.2 lbs
UPC	7330717017958

Easy Access to Resources

For more detailed information, download the Quick Guide (PDF).

See It in Action

Why Choose Aqua Void Bilge Pump?

Choosing the Aqua Void Electro-Magnetic Combo Bilge Pump means investing in a product that offers unmatched reliability, ease of use, and advanced features tailored for the marine environment. Whether you're a seasoned boater or new to the waters, the Aqua Void ensures your vessel remains safe and dry, allowing you to focus on enjoying your time on the water.

Upgrade your bilge management system today with the Aqua Void Bilge Pump and experience the pinnacle of marine pump technology!
