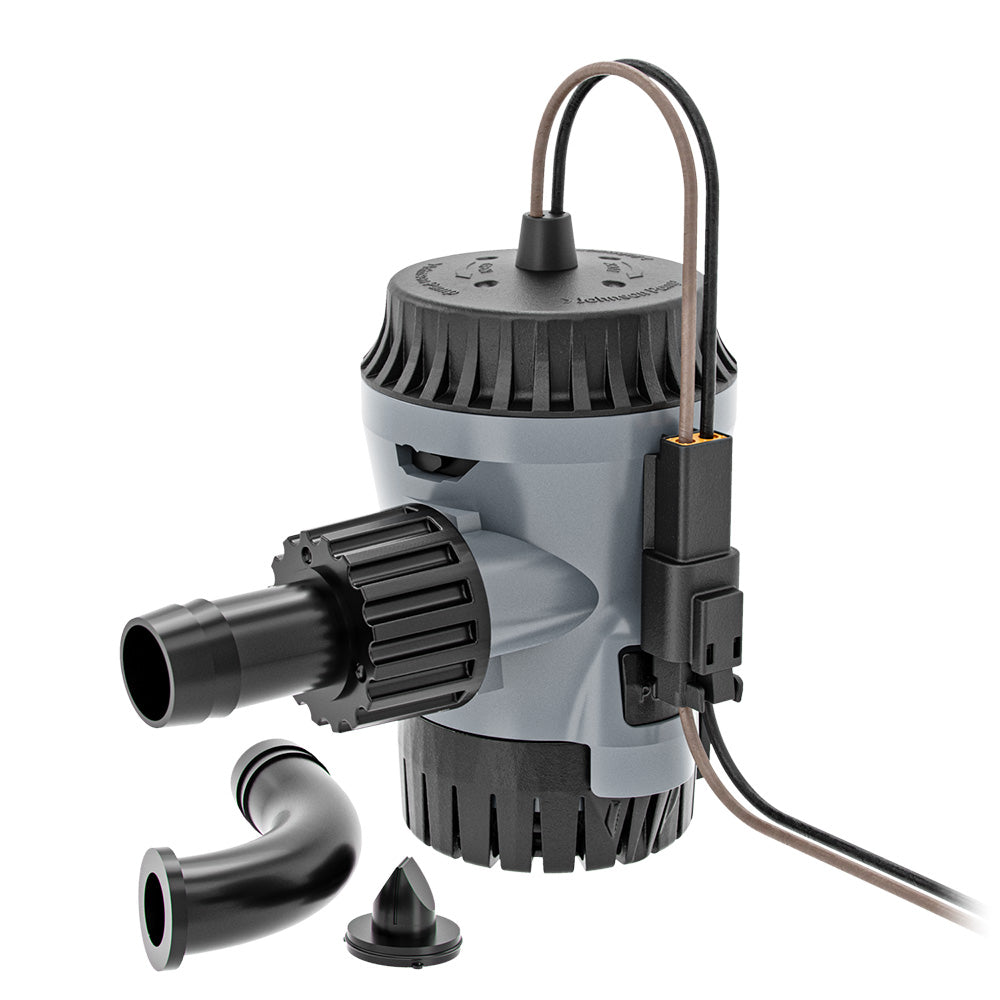

Johnson Pump Aqua Void Automatic 800 GPH Bilge Pump - 12V

The Aqua Void Automatic 800 GPH Bilge Pump by Johnson Pump Marine is engineered to deliver unparalleled performance and reliability for your boating needs. Designed with innovative features like a quick-change motor connection and a reinforced click-in basket, this 12V bilge pump ensures effortless installation, maintenance, and superior efficiency, making it an essential addition to any marine vessel.

Key Features

• High-Flow Impeller Design: Achieves an impressive 800 GPH, ensuring rapid water removal.
• Quick-Change Motor Connection: Industry-first feature allows for hassle-free cartridge motor changes or capacity upgrades without the need for cutting or splicing wires.
• Automatic Operation: Switchless design with low-amp resistance monitoring automatically activates the pump upon water detection.
• Reinforced Click-In Basket: Simplifies installation, cleaning, and inspection, enhancing durability and ease of use.
• Compact Design: Smaller profile fits seamlessly into tight bilge spaces, optimizing space utilization.
• Durable Construction: Made from corrosion-resistant materials including a 316 stainless steel shaft and ABS body for extended longevity.
• Flexible Hose Routing: Features straight or 90-degree dura port discharge ports with an included check valve to prevent backflow and reduce cycling.
• Water-Cooled Motor: Ensures reliable performance under demanding marine conditions.

Benefits

• Enhanced Efficiency: The high-flow impeller and enhanced motor deliver increased efficiency while conserving energy consumption.
• Easy Maintenance: Quick and hassle-free cartridge motor changes or capacity upgrades enable seamless maintenance and customization.
• Automatic Monitoring: Automatically detects water presence through low-amp draw impeller spin, ensuring prompt activation and operation.
• Versatile Compatibility: The common pump body allows for interchangeable motor cartridges, supporting both same and different size replacements.
• Space-Saving Design: Ideal for smaller bilge areas, providing effective water management without occupying excessive space.
• Reliable Performance: Corrosion-resistant components and robust engineering ensure long-lasting and dependable operation.

Competitive Advantages

• Top Performance: Offers the most efficient and highest flow rate within its GPH capacity category.
• Unique Motor Connection: The only cartridge motor pump in the industry with an included harness connection, eliminating the need for wire cutting and splicing.
• Extended Battery Support: Provides up to 100 days of service before critical battery drawdown, ensuring continued operation during extended periods.
• Ease of Installation & Maintenance: Designed for straightforward setup and upkeep, reducing installation time and effort.

Specifications

Attribute	Details
Gallons Per Hour	800 GPH
Operation	Automatic
Voltage	12V
Amperage	3.7A
Fuse	5A
Hose Connection	3/4 in.
Wire Size	16 GA, TINNED
Weight	12.6 oz (0.36 kg)
Body Material	ABS
Dura Port	PA66/GF - Nylon
Shaft	316 Stainless Steel
Shaft Seal	Nitrile Rubber
Motor Cartridge	PC-ABS
Pump Dimensions (W x H x L)	2.75 x 4.69 x 5.24 inches (70 x 119 x 133 mm)
Type	Pumps/Drives
Box Dimensions	4"H x 5"W x 6"L
Weight	1.2 lbs
UPC	7330717018191

Quick Access Resources

Download the Quick Guide (PDF)
