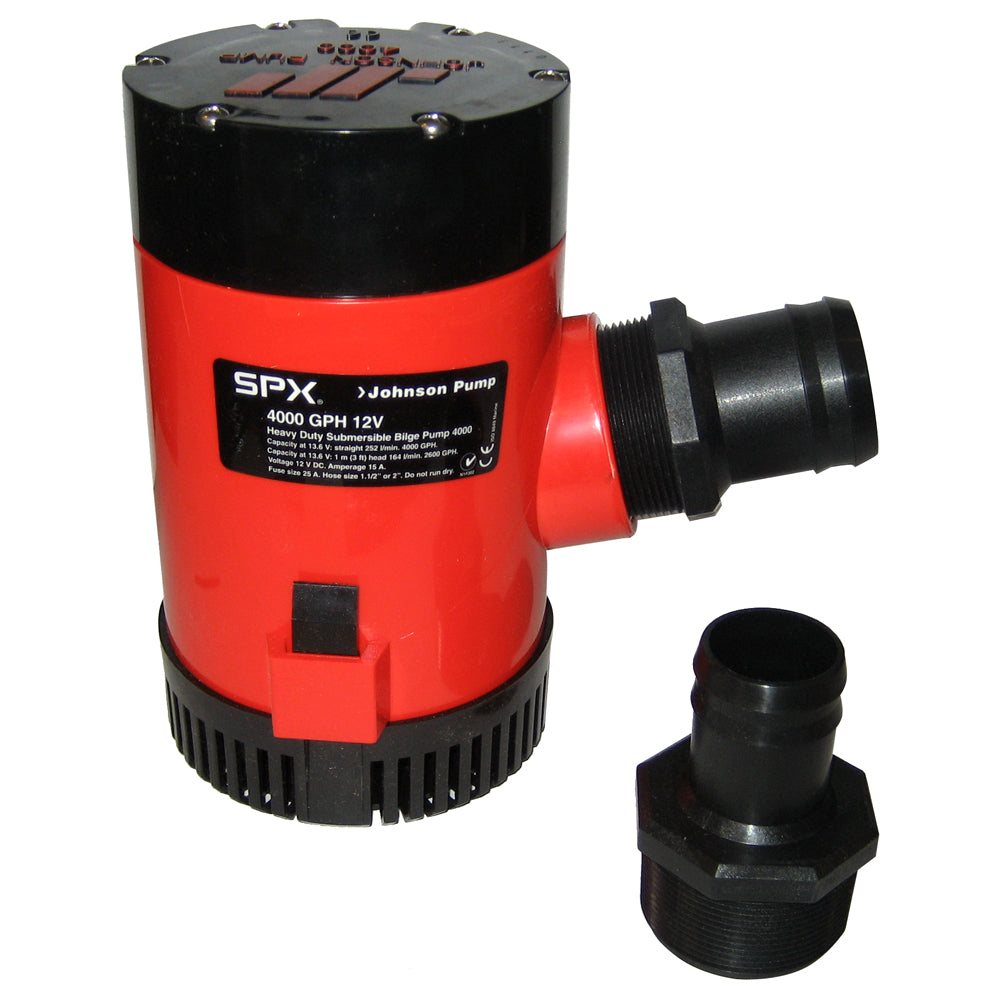

Johnson Pump 4000 GPH Bilge Pump 1-1/2" Discharge Port 12V

Ensure your vessel stays safe and dry with our Heavy Duty Bilge Pump 4000 Series 12V. Engineered for both commercial and recreational boating, this high-performance pump delivers reliable and efficient water removal, even in the harshest marine environments. With its robust construction and advanced cooling system, the 4000 Series is built to withstand demanding conditions while providing exceptional flow and head performance.

Key Features

• Powerful 12-Pole Motor: Equipped with a heavy-duty, liquid-cooled 12-pole motor featuring double ball bearings for extended durability and reliable performance.
• Advanced Sealing System: The 2200 model utilizes a mechanical seal design, while the 1600 model is fitted with a lip seal, ensuring maximum protection against leaks.
• Optimized Impeller Design: Carefully engineered impeller to maximize head and flow, providing efficient water removal.
• Durable Construction: High-impact ABS plastic pump body and stainless steel (SS2343) shaft offer superior strength and longevity.
• Easy Installation: Features a universal base plate with interchangeable ports (1-1/2" or 2"), allowing for quick and hassle-free setup.
• Removable Check Valve: Included check valve prevents backflow, ensuring continuous and effective pumping.
• Compliance: Meets ISO 8849 Marine and CE standards, guaranteeing quality and safety for marine applications.
• Versatile Connection Options: Compatible with most similar bilge pumps, making it a versatile addition to your marine equipment.

Technical Specifications

Specification	Details
Voltage	12 V
Capacity	1.0 m head (13.6 V/27 V): 164 l/min - 2600 GPH Straight (13.6 V/27 V): 252 l/min - 4000 GPH
Amperage	15 A
Fuse Size	25 A
Outlet Size	1-1/2" or 2"
Shaft	Stainless Steel (SS2343)
Wire Size	2 mm² - 14 GA
Maximum Height	216 mm - 8.5"
Weight	2.45 kg - 5.4 lbs
Box Dimensions	6"H x 9"W x 9"L
UPC	729321400046

Why Choose the 4000 Series Bilge Pump?

The Heavy Duty Bilge Pump 4000 Series is designed to provide peace of mind for boaters by ensuring that water is efficiently expelled from the bilge. Its robust motor and superior sealing mechanisms minimize the risk of failures, while the high-capacity impeller ensures quick water removal, keeping your vessel dry and safe.

Easy Installation

Installing the 4000 Series Bilge Pump is straightforward thanks to its universal base plate and interchangeable outlet ports. Whether you're upgrading an existing pump or installing a new one, the 1-1/2" and 2" port options provide flexibility to fit various setups seamlessly.

Compliance and Standards

Our bilge pump meets stringent ISO 8849 Marine and CE standards, ensuring that it adheres to the highest quality and safety requirements for marine equipment. This compliance guarantees that you receive a reliable product suitable for demanding marine applications.
