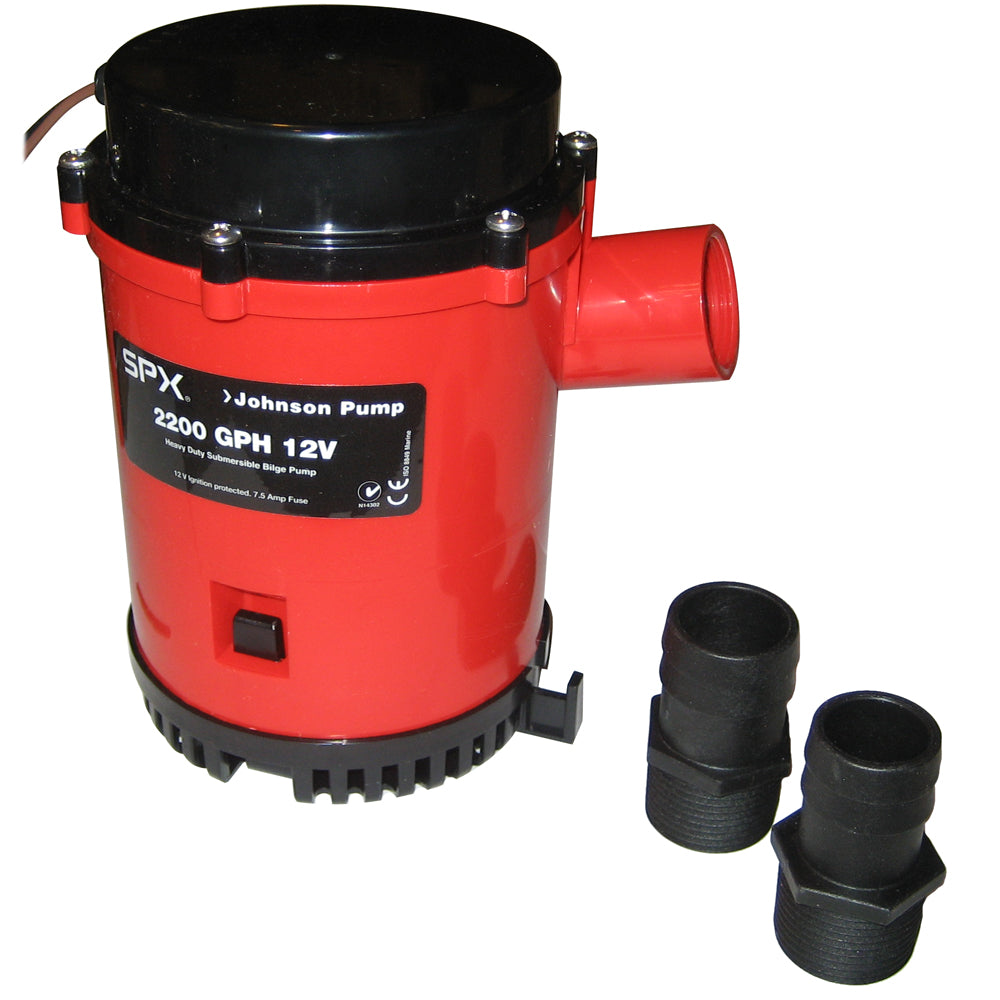

Johnson Pump 2200 GPH Bilge Pump 1-1/8" Hose 12V Threaded Port

The 2200 Series Heavy Duty Bilge Pump is the ideal solution for boat owners seeking unparalleled performance and reliability in managing bilge water. Designed to withstand the rigorous demands of both commercial and recreational marine applications, this pump ensures your vessel remains safe and dry under any conditions.

Key Features

• Robust Motor: Equipped with a liquid-cooled, 12-pole double ball bearing motor that delivers high performance and extended service life.
• Advanced Sealing: The 2200 model features a mechanical seal design for enhanced durability, while the 1600 model utilizes a lip seal.
• Optimized Impeller: Carefully designed and tested to maximize head and flow, ensuring efficient water removal.
• Durable Construction: High-impact ABS plastic pump body with a mechanical shaft seal and unique threaded port design.
• Easy Installation: Comes with a universal base plate and offers a choice of 1-1/2" or 2" ports for seamless integration into your existing setup.
• Included Check Valve: Ensures one-way flow to prevent backflow and maintain pump efficiency.
• CE-Approved: Meets ISO 8849 Marine and CE standards, guaranteeing quality and safety.

Technical Specifications

Specification	Details
Motor Type	12-pole double ball bearing
Cooling	Liquid cooled
Shaft Seal	Mechanical seal (2200 model)
Shaft Material	Stainless steel (SS2343)
Voltage	12 V
Capacity	1.0 m head (13.6 V/27 V): 120 l/min - 1900 GPH Straight: 130 l/min - 2060 GPH
Amperage	7.5 A
Fuse Size	12 A
Connection Sizes	1-1/8" and 1-1/4"
Wire Size	1.3 mm² - 16 GA
Max Height	177 mm - 7"
Weight	2.7 kg - 6 lbs
Gallons Per Hour	2200 GPH
Operation	Non-Automatic
Outlet Size	1-1/8"
Type	Electric
Box Dimensions	6"H x 7"W x 7"L
Package Weight	5.6 lbs
UPC	729321220040

Why Choose the 2200 Series Bilge Pump?

Whether you're navigating rough seas or cruising calm waters, the 2200 Series Bilge Pump provides the reliability you need to keep your vessel’s bilge dry. Its heavy-duty construction and high-capacity performance make it suitable for a wide range of marine applications, ensuring that your boat remains safe from unwanted water accumulation.

Installation

Installing the 2200 Series Bilge Pump is straightforward thanks to its universal base plate and versatile port options. Choose between 1-1/2" or 2" ports to match your existing setup, and securely mount the pump using the provided mounting hardware. Connect the electrical wires using the recommended 1.3 mm² - 16 GA wire size and ensure proper fuse sizing for optimal performance.

Certifications

This bilge pump is CE-Approved and complies with ISO 8849 Marine standards, ensuring it meets stringent quality and safety requirements for marine use.
