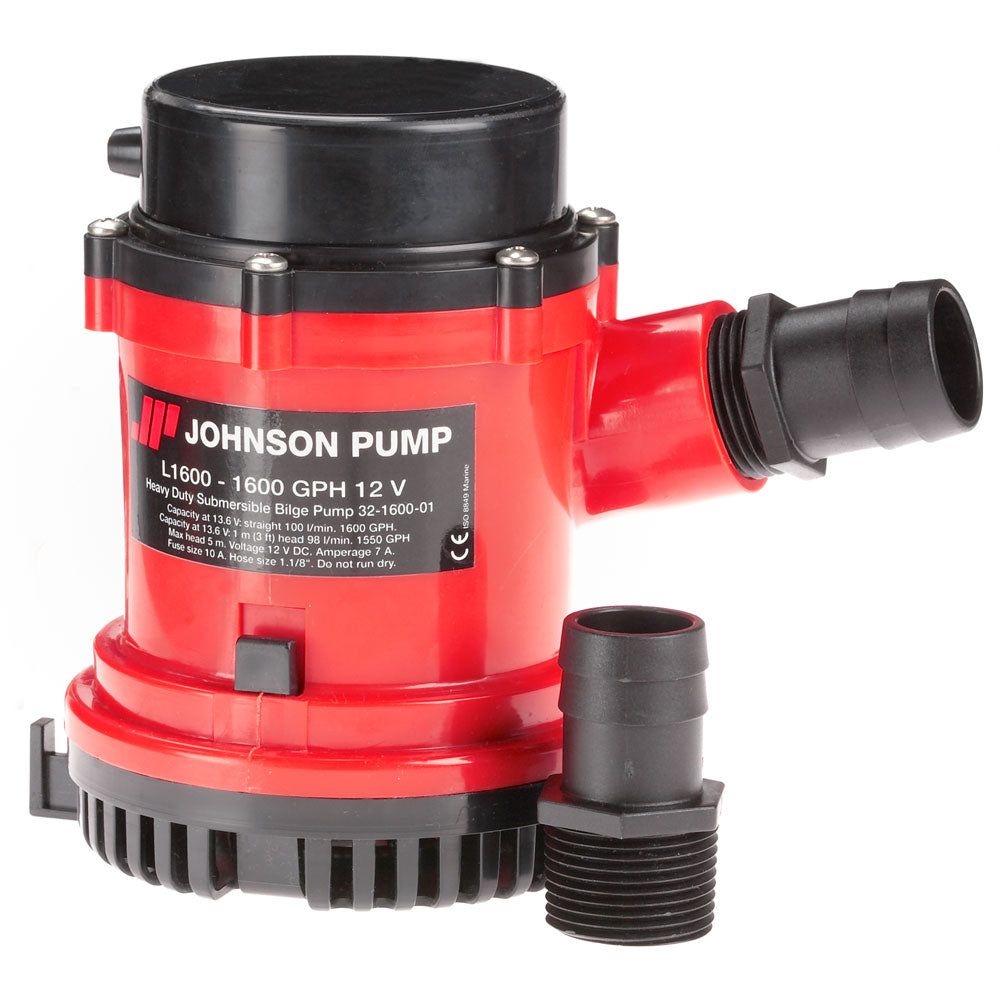

Johnson Pump 1600 GPH Bilge Pump 1-1/8" Hose 12V

Ensure your vessel stays dry and safe with our Heavy Duty Bilge Pump 1600 Series 12V. Designed specifically for marine and boating applications, this high-performance pump reliably handles both commercial and recreational demands. Its robust construction and advanced features provide peace of mind, making it an essential addition to your boat’s safety equipment.

Key Features

• Powerful Motor: Equipped with a heavy-duty, 12-pole double ball bearing motor for exceptional performance and longevity.
• Liquid Cooled: The liquid cooling system ensures extended motor life, even under continuous operation.
• Durable Sealing: Features a quality-engineered mechanical seal in the 2200 model and a reliable lip seal in the 1600 model to prevent leaks.
• Optimized Impeller: Carefully designed and tested impeller maximizes head and flow for efficient bilge water removal.
• Robust Construction: High-impact ABS plastic pump body and stainless steel shaft (SS2343) ensure durability in harsh marine environments.
• Easy Installation: Comes with a universal base plate and offers a choice of 1-1/2" or 2" ports for versatile mounting options.
• Interchangeable: Easily interchangeable with most similar bilge pumps, providing flexibility for various setups.
• Removable Check Valve: Included to prevent backflow and ensure smooth operation.
• CE-Approved: Complies with ISO 8849 Marine and CE standards for quality and safety.

Technical Specifications

Attribute	Details
Motor Type	12V Liquid Cooled, 12-Pole Double Ball Bearing
Seal Type	Mechanical Seal (2200) / Lip Seal (1600)
Impeller Material	Optimized for maximum head and flow
Pump Body	High Impact ABS Plastic
Shaft	Stainless Steel (SS2343)
Voltage	12V
Capacity (1.0m Head)	98 L/min / 1550 GPH
Capacity Straight	100 L/min / 1600 GPH
Amperage	7 A
Fuse Size	10 A
Connection Sizes	1-1/8" and 1-1/4"
Wire Size	1.3 mm² - 16 GA
Maximum Height	149 mm (5.86")
Weight	1.3 kg (2.75 lbs)
Box Dimensions	5"H x 6"W x 6"L
Package Weight	3.4 lbs
UPC	729321160049

Installation & Compatibility

The Heavy Duty Bilge Pump 1600 series is designed for easy installation on a wide range of marine vessels. Its universal base plate and versatile port options (1-1/2" or 2") allow for seamless integration with existing bilge systems. The pump is also interchangeable with most similar bilge pumps, offering flexibility and convenience for upgrades or replacements.

Certifications

This bilge pump meets ISO 8849 Marine and CE standards, ensuring reliable performance and safety in marine environments.
