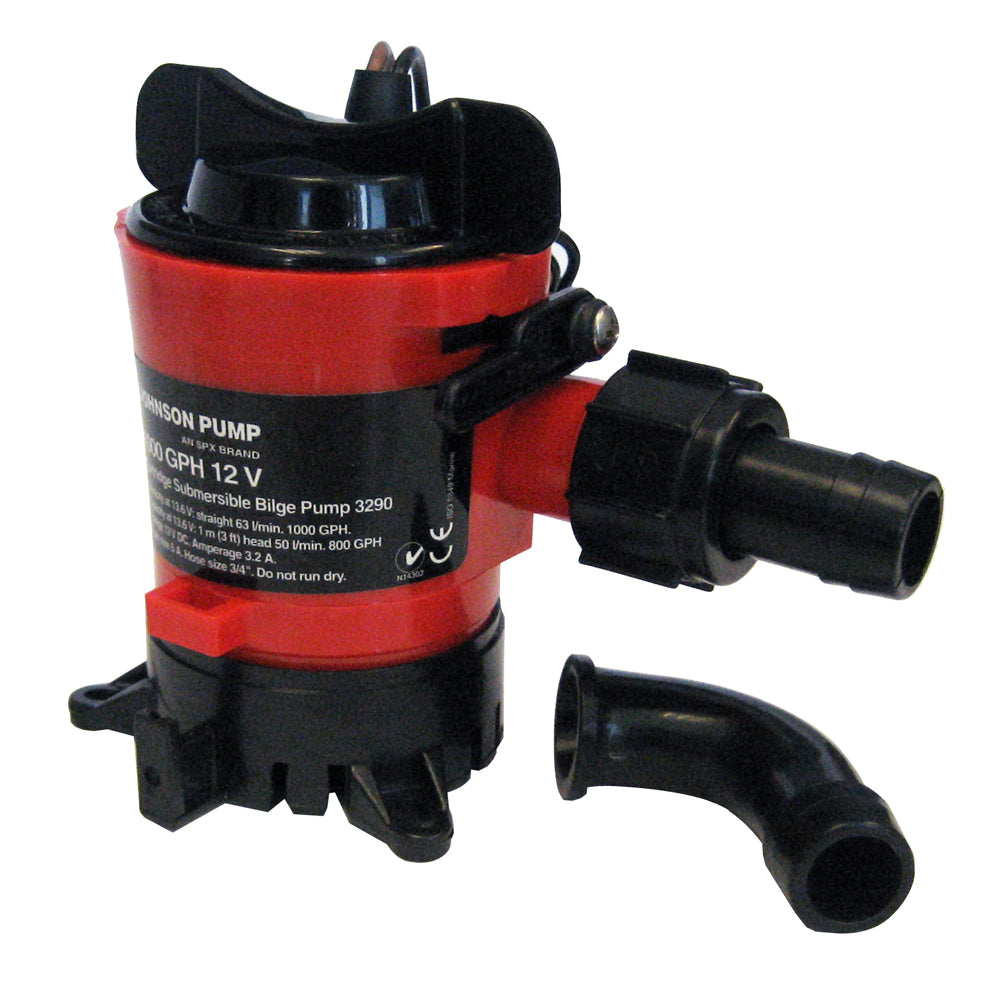

Johnson Pump 1000 GPH Bilge Pump 3/4" 12V Dura Ports

The Cartridge Bilge Pumps 1000 GPH are engineered with advanced features tailored for marine enthusiasts and professionals alike. Whether you're racing, cruising, sport fishing, or handling demanding commercial duties, these pumps deliver exceptional performance and reliability. Designed for easy installation and maintenance, they come equipped with Dura-Port discharge ports to prevent stress cracking and include both straight and 90-degree smooth elbow fittings along with a removable check valve. Additionally, the pumps can be manually operated via the Johnson Pump bilge control panel, ensuring versatility and ease of use on any vessel.

Key Features

• Compact, all-in-one motor and impeller unit for streamlined installation
• Tool-free maintenance for hassle-free upkeep
• Highly energy-efficient operation to conserve power
• Water-cooled motor ensures long service intervals
• Compliant with the international ISO 8849 marine standard
• Flexible discharge options with Dura-Port ports to prevent stress cracking
• Includes both straight and 90-degree smooth elbow fittings
• Removable check valve for added protection against backflow

Technical Specifications

Attribute	Details
Gallons Per Hour (GPH)	1000 GPH
Operation	Non-Automatic
Outlet Size	3/4"
Voltage	12V
Type	Electric
Capacity (3 ft Head, 13.6 V)	50 l/min - 800 GPH
Capacity (Straight)	63 l/min - 1000 GPH
Amperage	3.2 A
Fuse Size	5 A
Max Height	112 mm - 4.4"
Weight	0.27 kg - 9.6 oz.
Box Dimensions	4"H x 6"W x 8"L
Weight	0.9 lbs
UPC	729321329033

Compliance

CE-approved

Additional Resources

Owner's Manual (PDF)

Product Demonstration
