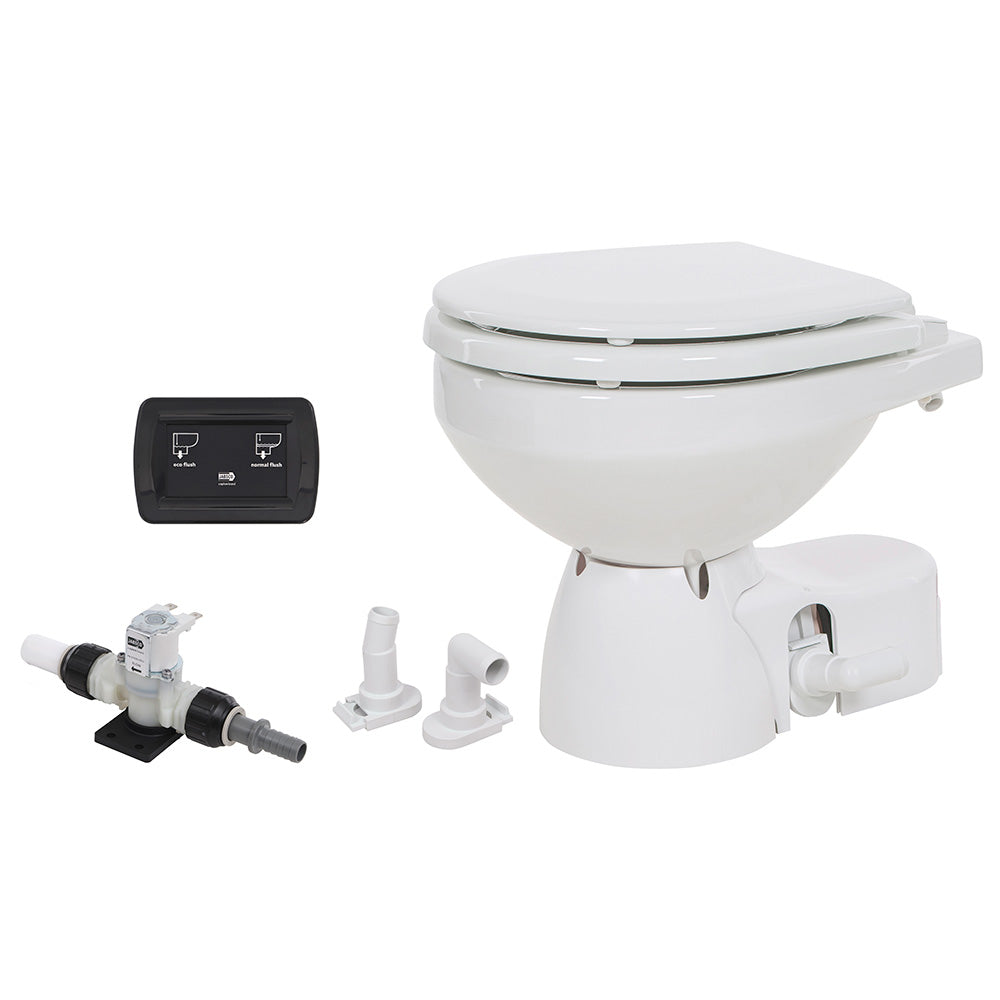

Jabsco Quiet Flush E2 Fresh Water Toilet Compact Bowl - 24V - Soft Close Lid

The Quiet Flush E2 Fresh Water Toilet Compact Bowl is the ultimate solution for marine waste management, designed specifically for charter boats, racing yachts, and a wide range of marine vessels. Combining award-winning technology with user-friendly features, the Quiet Flush E2 offers unparalleled convenience, reliability, and efficiency on the water.

Key Features

Effortless Installation

Installing the Quiet Flush E2 is straightforward, even for those new to marine toilet installations. The versatile base can be rotated to the left, right, or rear, providing maximum flexibility to fit tight spaces and various vessel layouts. Additionally, the discharge pump can be adjusted 180 degrees to accommodate different base orientations, ensuring seamless integration with your boat's plumbing system.

Superior Serviceability

Designed for both recreational and commercial use, the Quiet Flush E2 is built to endure rigorous conditions. The innovative quick-release system allows for rapid access to the macerator pump and discharge hose without the need for tools. The C-Clip design facilitates easy removal of the pump assembly from the toilet base, drastically reducing service time and maintenance efforts.

Intuitive Operation

Experience the comfort of home on the water with the Quiet Flush E2's sleek touch sensor panel. Users can effortlessly select from three flushing settings, including an eco-friendly cycle that conserves water. The toilet is equipped with a no-spill 'empty' feature, ensuring the bowl remains dry even when the vessel is in motion, enhancing both hygiene and convenience.

Technical Specifications

Feature	Details
Bowl Size	Compact
Seat & Lid	Wood
Slow Close Lid	No
Water Supply	On-board fresh water
Device	Solenoid valve
Flush Control	Touch panel
Voltage	24V DC
Recommended Fuse Size	15 AMP
Dimensions (H x W x D)	14 x 13.9 x 16.3 inches (355 x 352 x 415 mm)
Weight	34.2 lbs. (15.5 kg)
Color	White
Operation Method	Electric
Rinse Water	Fresh
Type	Toilet
Box Dimensions	22"H x 24"W x 24"L
Weight (Box)	43.35 lbs
UPC	671880640756

Installation Options

• Base rotation options: left, right, or rear
• Discharge pump rotatable 180 degrees
• Straight or 90-degree discharge port available

Service and Maintenance

• Quick-release system for easy pump and hose removal
• No tools required for pump assembly removal

User Controls

• Touch-sensitive control panel with a sleek, low-profile design
• Three flushing modes: eco flush, full flush, and empty
• Eco mode uses only 1 liter (1 quart) per flush
• Designed for wet room installations

Download the Quick Guide (PDF)
