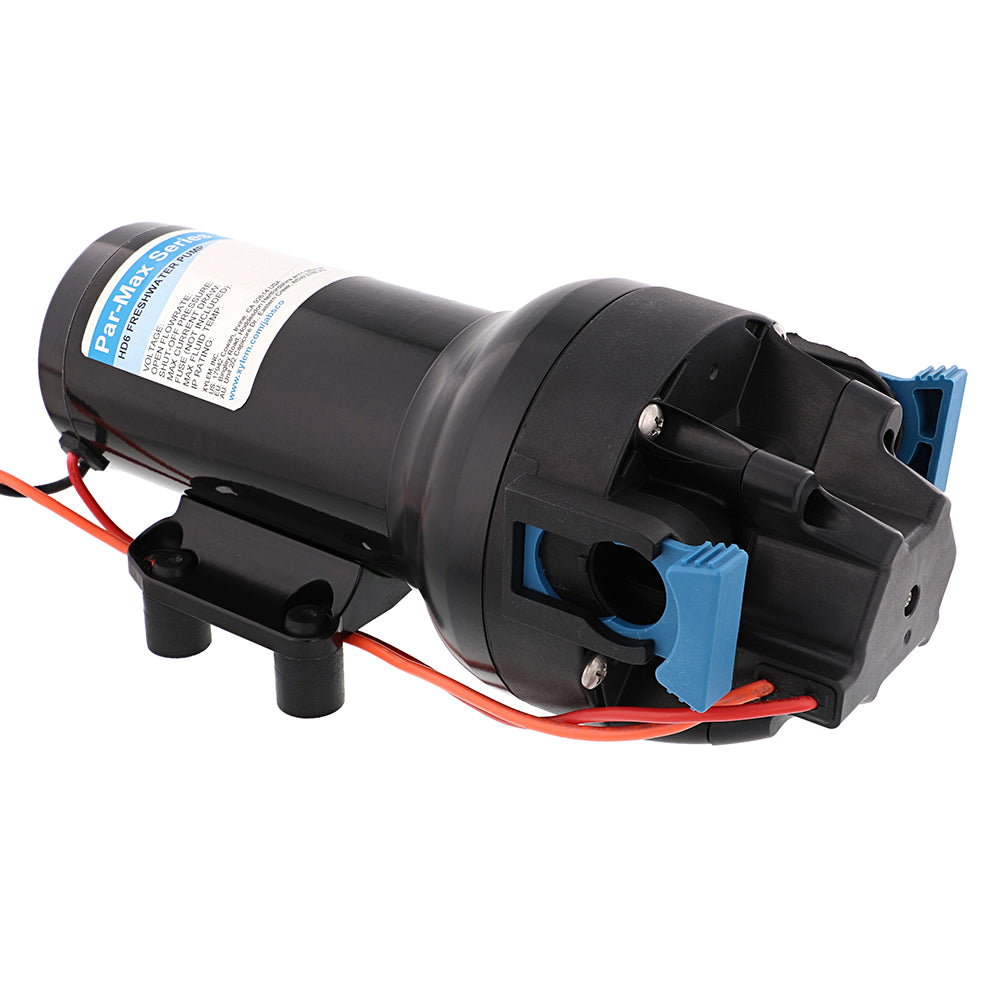

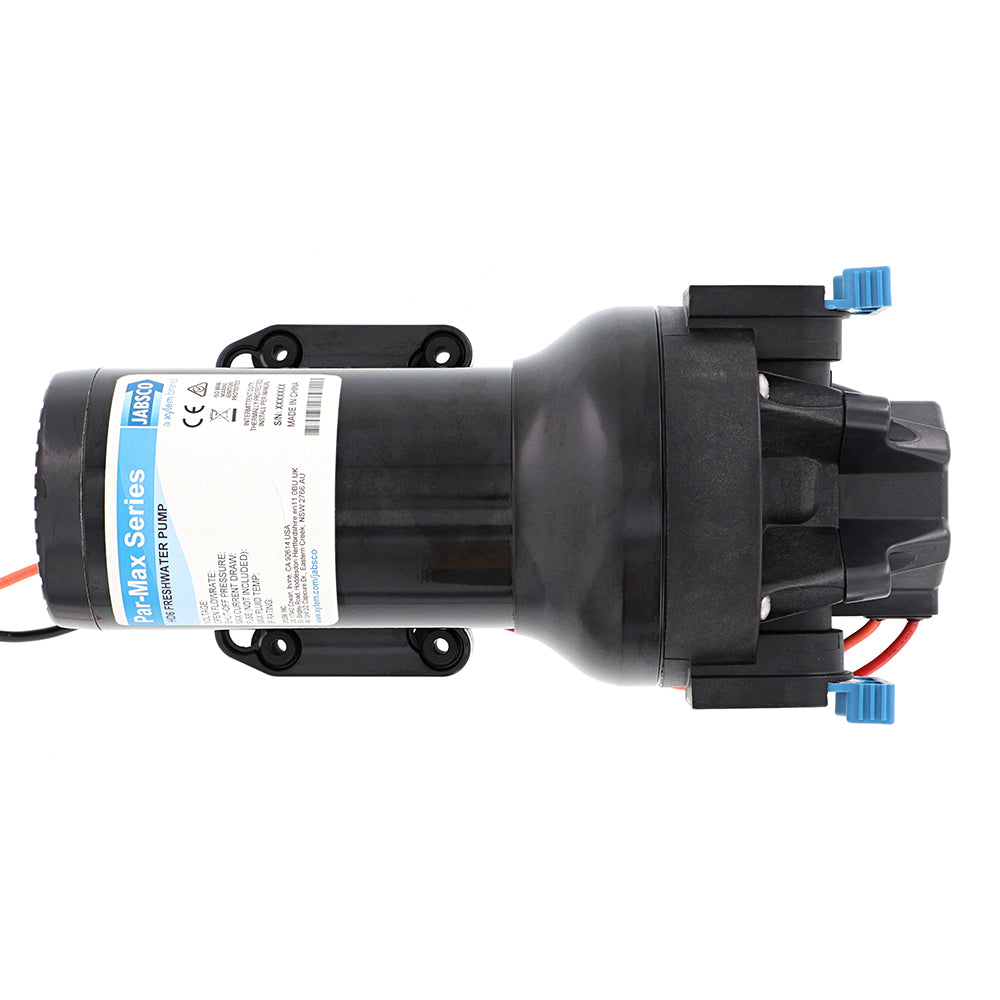

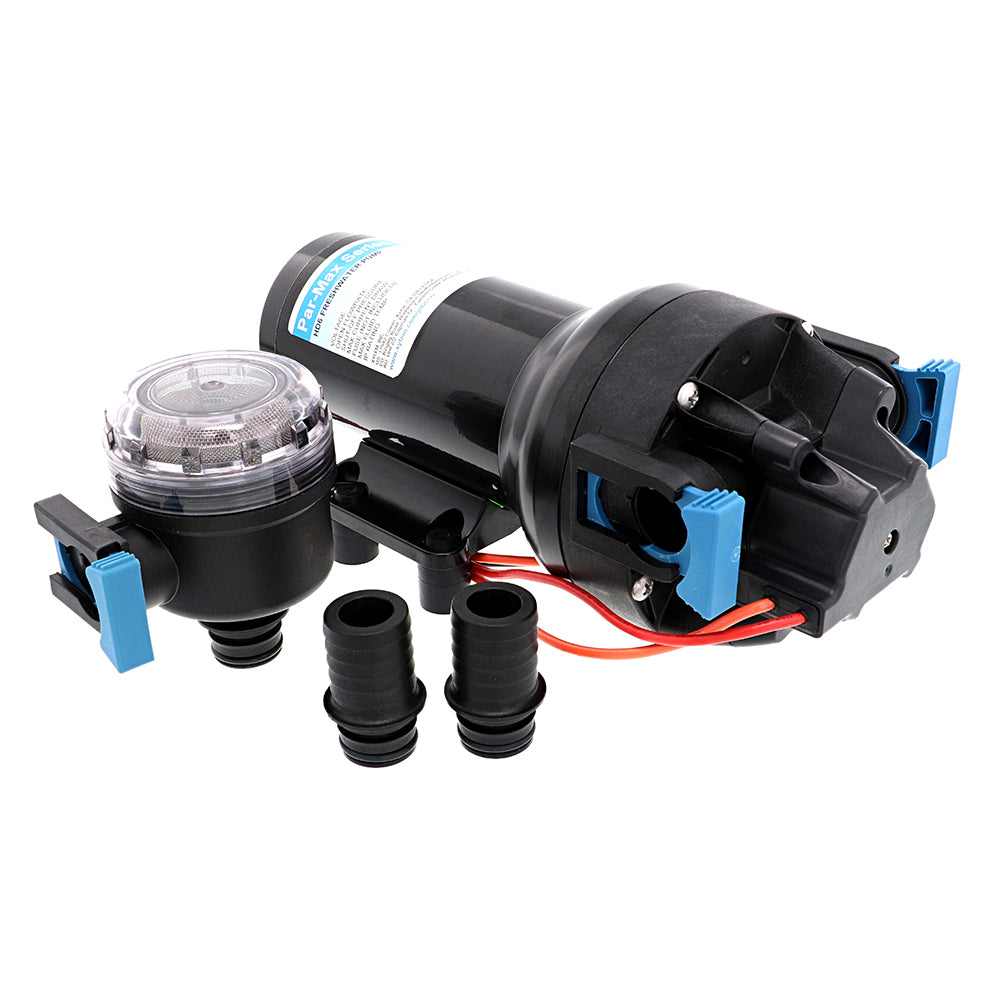

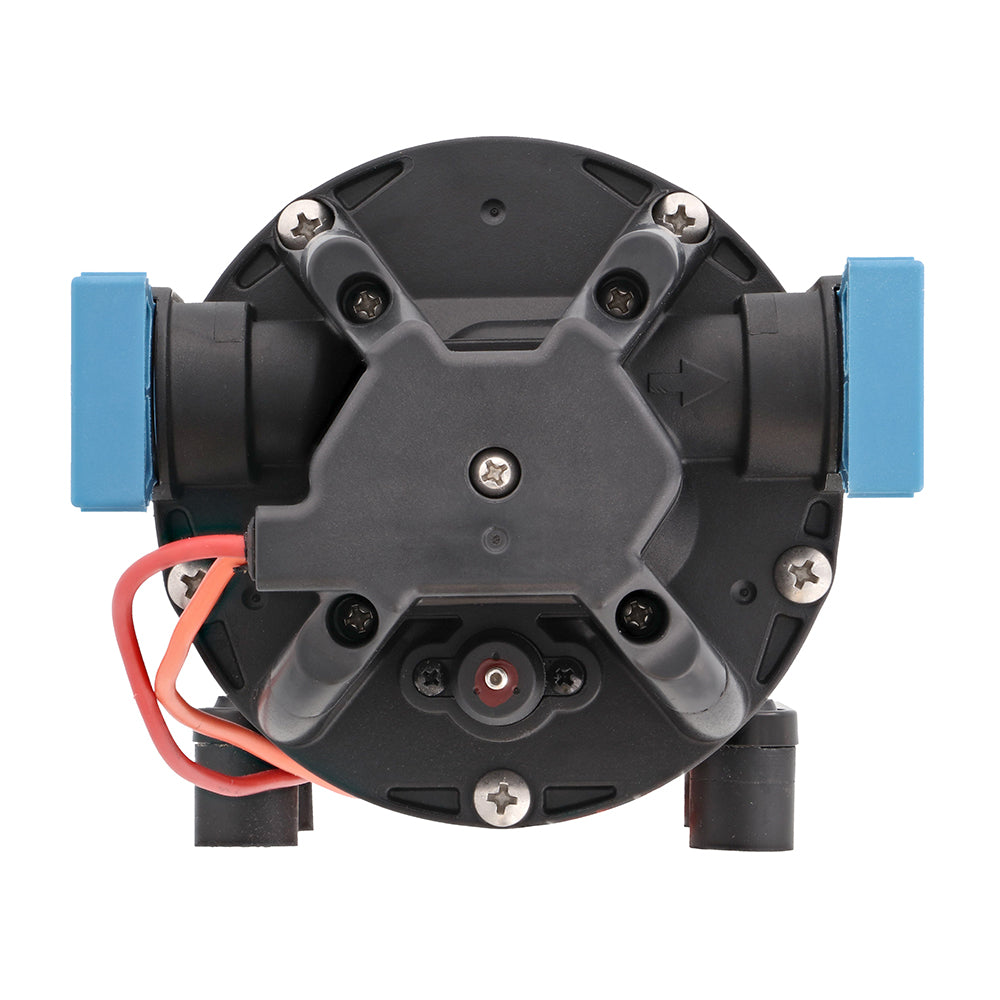

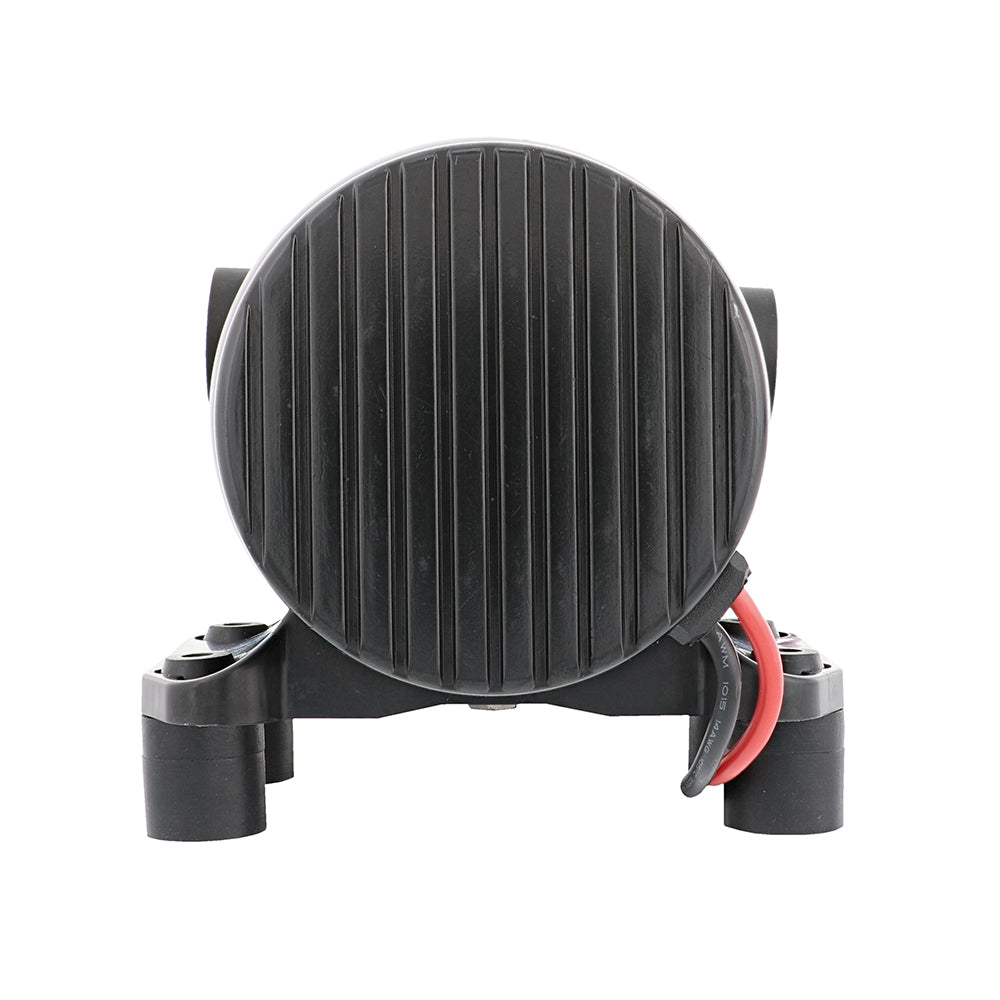

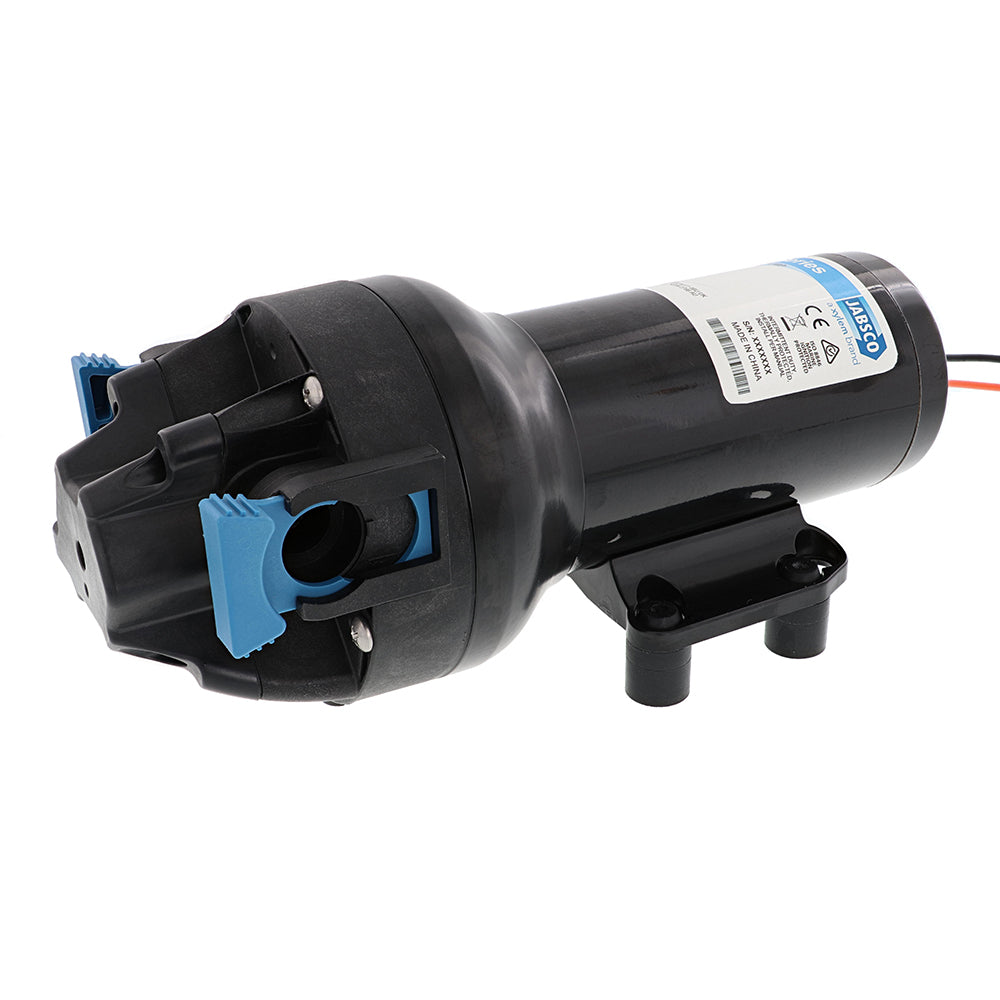

Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 40 PSI
Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 40 PSI is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Par-Max HD6 Heavy Duty Water Pressure Pump is engineered to deliver robust performance for marine and boating applications. With a 12V system, 6 GPM flow rate, and 40 PSI pressure, this pump ensures reliable water supply for all your vessel's needs, from shower and galley to engine cooling systems.
Exceptional Performance for Marine Applications
The HD6 model stands out with its wider diameter motor and powder-coated shell, providing enhanced pressure capabilities and extended lifespan. Designed specifically for the demanding conditions of marine environments, it offers superior resistance to corrosion and wear, ensuring long-term reliability on the water.
Key Features
- Co-Molded Diaphragm Technology: Enhances durability and extends the pump's life.
- Heavy Duty Construction: Features a robust motor and cast aluminum lower housing for sustained high-pressure performance.
- Quiet and Efficient Operation: Minimizes noise while maintaining optimal efficiency.
- Integrated Sealed Pressure Switch: Automatically operates on-demand, ensuring consistent water flow.
- Self-Priming Capability: Allows flexible installation options without manual priming.
- Dry Run Protection: Can run without water without incurring damage.
- Quick Connect Ports: Simplifies installation, servicing, and maintenance.
- Vibration Dampening Mounting Feet: Reduces noise and extends the pump's lifespan.
- Integrated Bypass Module: Minimizes cycling and provides a smoother water flow.
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 12V |
| Flow Rate | 6 GPM (23 LPM) |
| Maximum Pressure | 40 PSI (2.76 Bar) |
| Motor Design | Brushed, Permanent Magnet TENV |
| Pumphead Material | Glass Fiber Reinforced Polypropylene |
| Diaphragm | Co-Molded TPV |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | 7 ft min (2.13 m/min) |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |
| Box Dimensions | 6"H x 6"W x 15"L |
| Weight | 9 lbs |
| UPC | 671880841979 |
Why Choose the Par-Max HD6?
Whether you’re outfitting a sailboat, motor yacht, or any other marine vessel, the Par-Max HD6 offers the perfect balance of power, durability, and efficiency. Its heavy-duty components are built to withstand the harsh marine environment, ensuring you have a reliable water supply wherever your adventures take you.
Installation and Maintenance
The Par-Max HD6 is designed for easy installation and maintenance. Its quick connect ports facilitate hassle-free setup and servicing, while the vibration dampening mounting feet ensure stable operation. Self-priming and dry run capabilities add to the pump's versatility, allowing for flexible placement within your vessel.
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
