Jabsco Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 40 PSI
Jabsco Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 40 PSI is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

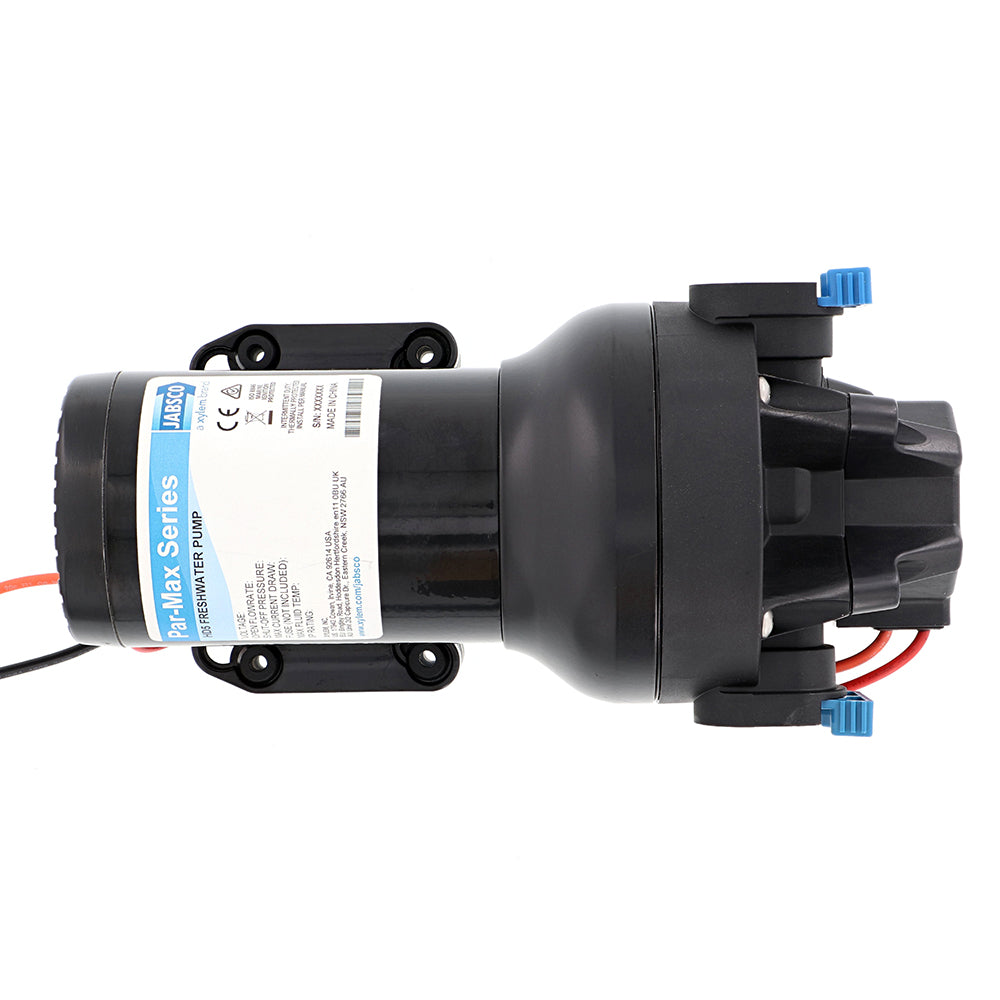

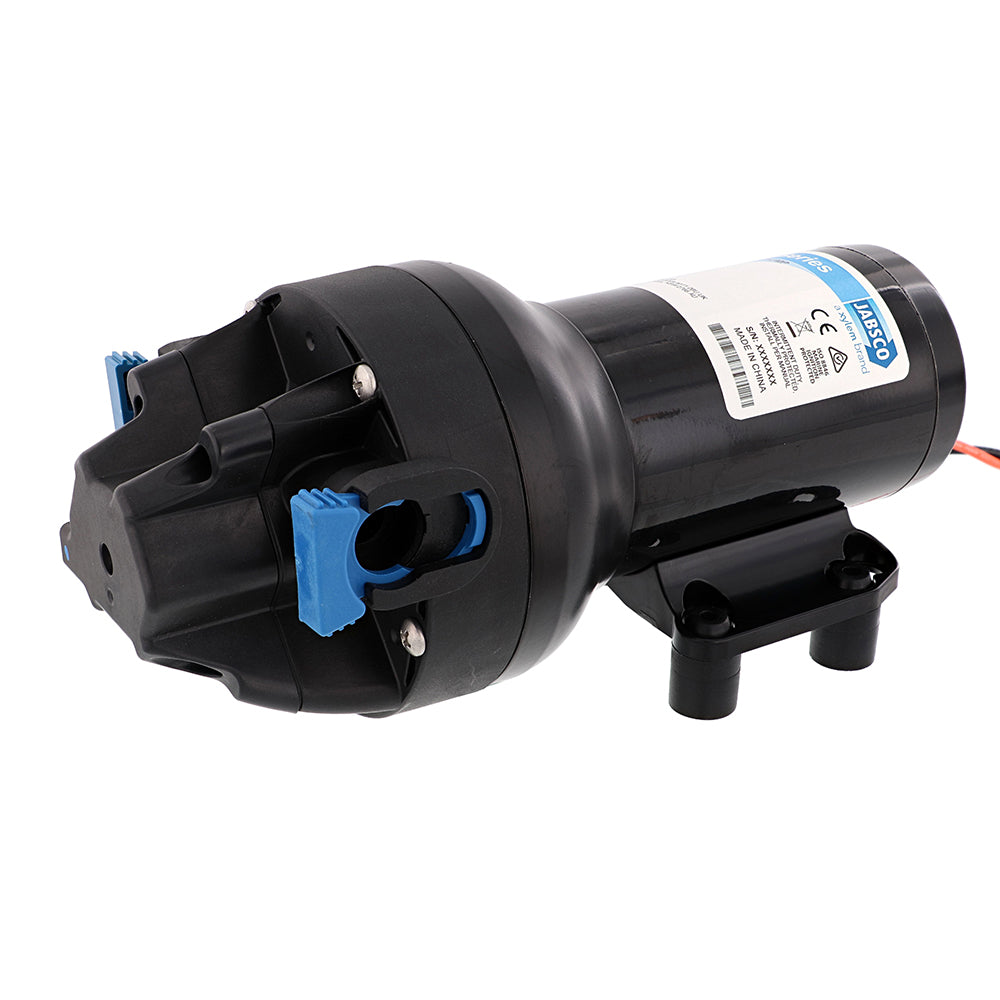

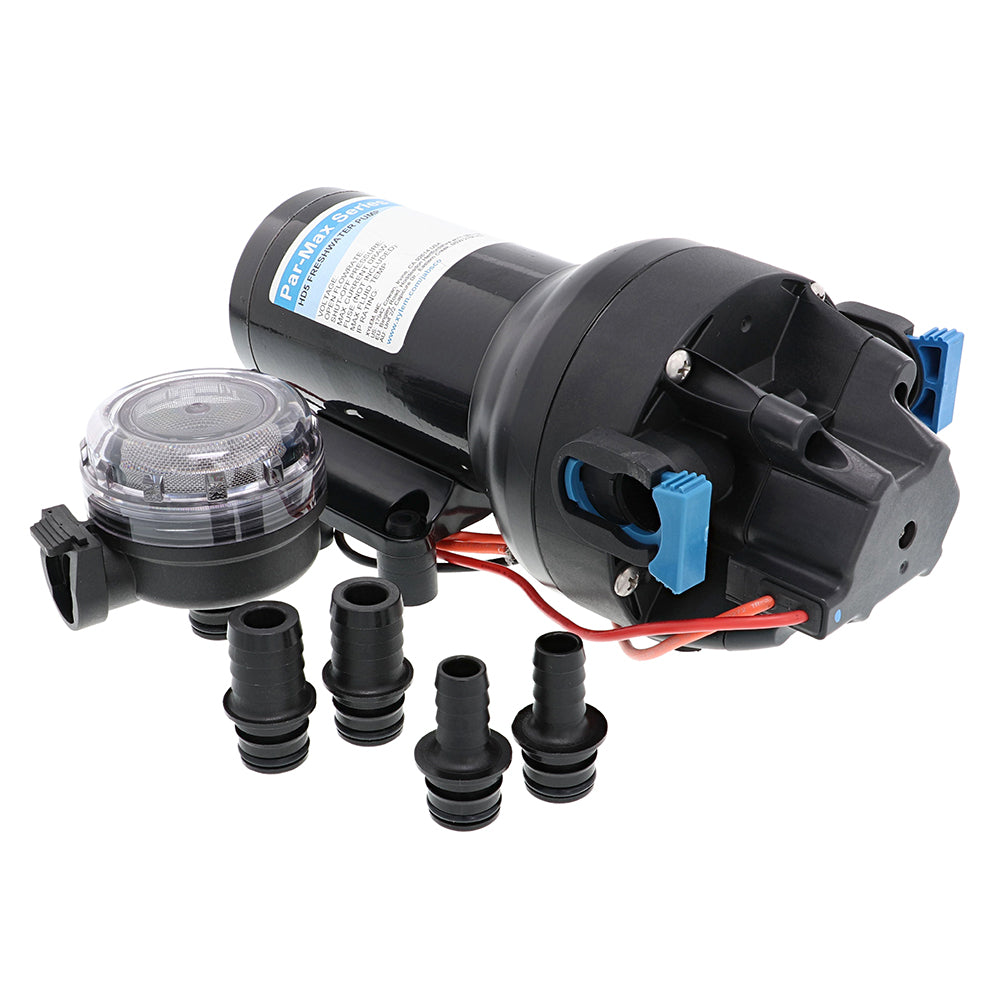

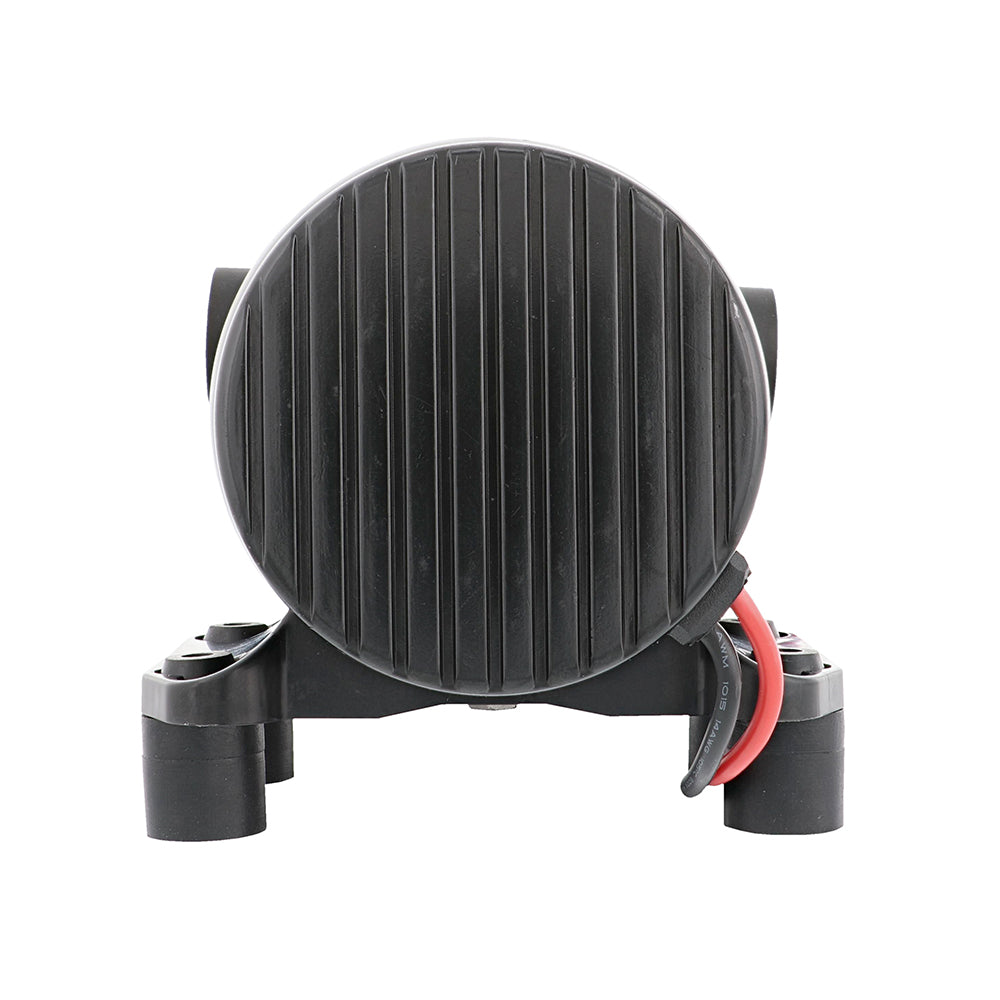

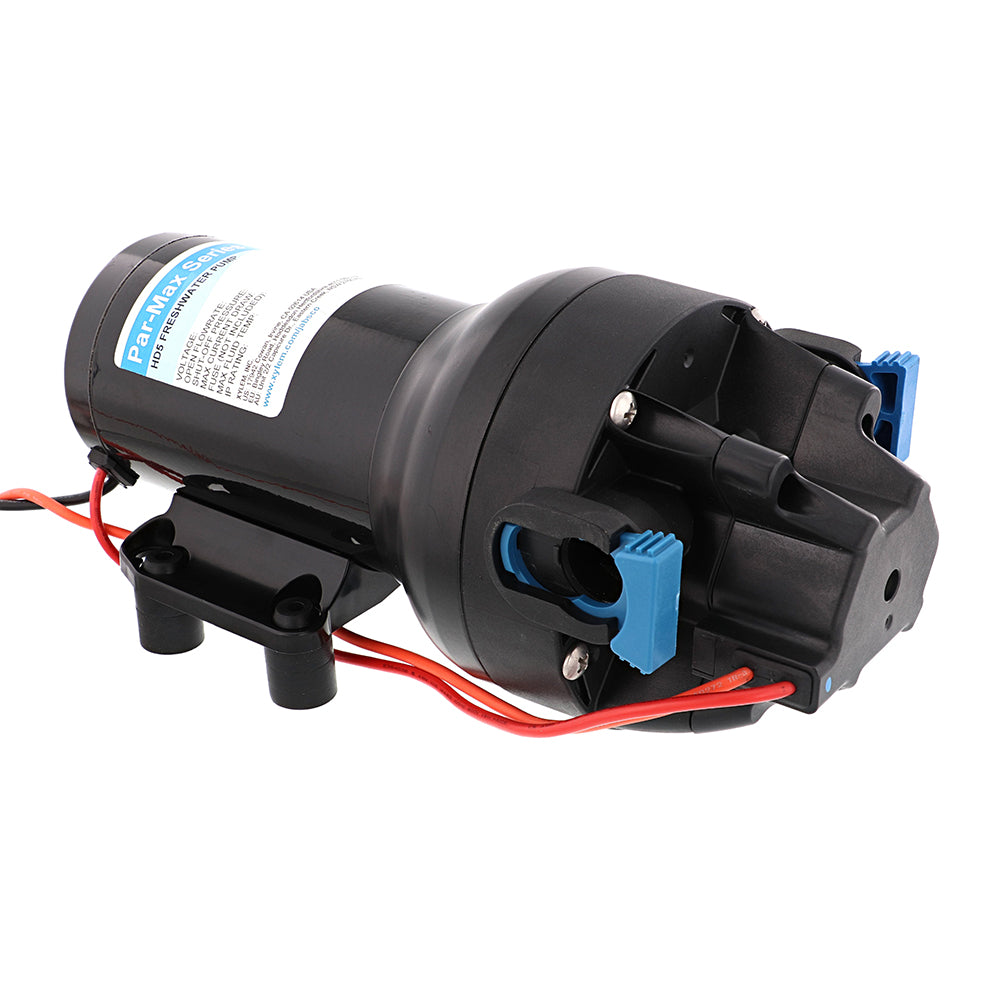

The Par-Max HD5 Heavy Duty Water Pressure Pump is engineered for marine and boating applications, providing reliable and powerful performance for your vessel's water system. Operating at 12V, this pump delivers a flow rate of 5 GPM and achieves up to 40 PSI, ensuring efficient water distribution throughout your boat.
Key Features
- Co-molded diaphragm technology for enhanced longevity and durability
- Heavy Duty (HD) models feature wider diameter motors with a powder-coated shell, cast aluminum end bells, and lower housings, improving pressure capabilities and extending pump life
- Efficient and quiet operation minimizes onboard noise
- Integrated, sealed pressure switch enables on-demand water flow
- Self-priming capability allows for versatile installation positions
- Can run dry without sustaining damage, ensuring reliability in various conditions
- Quick connect ports simplify installation, servicing, and maintenance
- Vibration dampening mounting feet reduce operational vibrations
- Equipped with an integrated bypass module to minimize cycling and provide smoother water flow
Technical Specifications
| Parameter | Details |
|---|---|
| Voltage | 12V |
| Flow Rate | 5 Gallons Per Minute (GPM) |
| Maximum Pressure | 40 PSI (2.76 BAR) |
| Motor Design | Brushed, Permanent Magnet TENV |
| Pumphead Housing Material | Glass Fiber Reinforced Polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Maximum Inlet Pressure | 30 PSI (2.1 BAR) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | 7 ft min (2.13 m/min) |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |
| Box Dimensions | 5" H x 6" W x 18" L |
| Weight | 8.4 lbs |
| UPC | 671880841948 |
Safety Information
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE), which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
