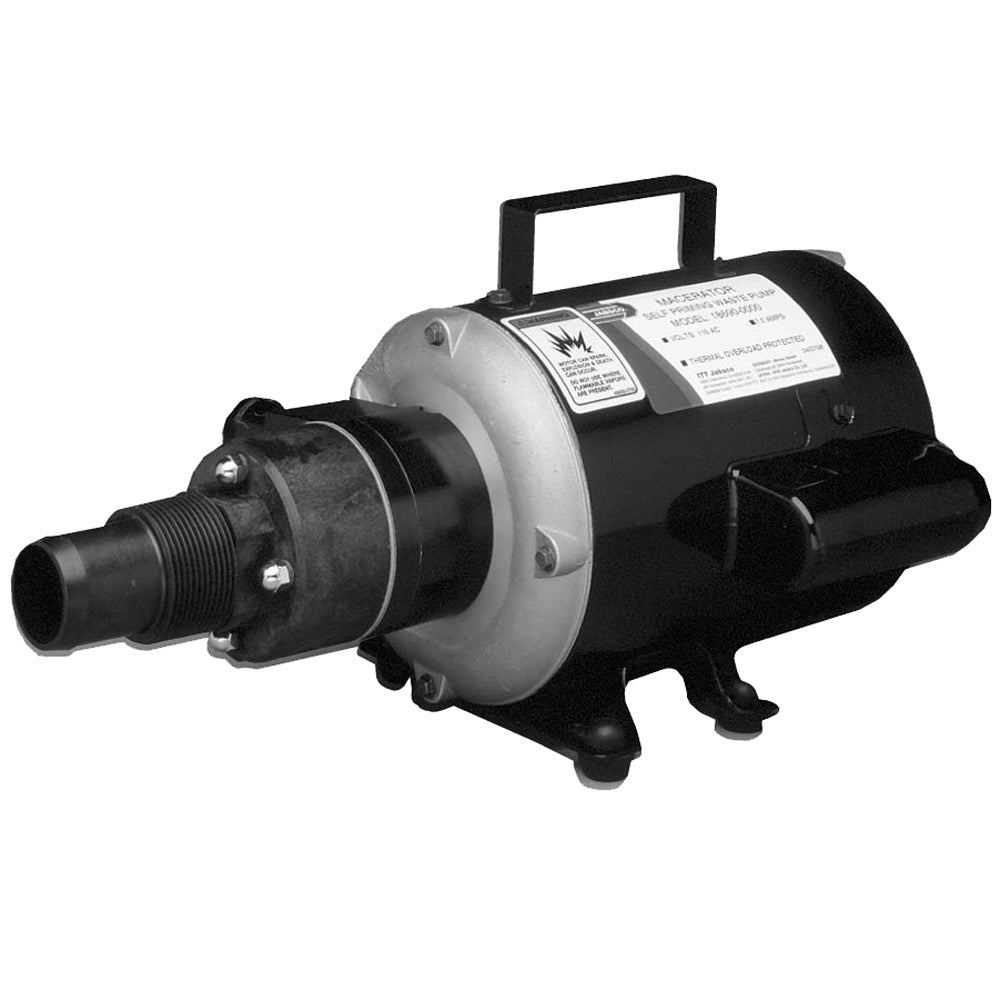

Jabsco Macerator Pump - 115V

Ensure efficient and reliable waste management on your marine vessel with the Jabsco 115V AC Macerator Pump. Designed specifically for boats, recreational vehicles, and domestic applications, this powerful pump effectively grinds and pumps waste, maintaining optimal performance of your onboard waste system.

Key Features

• Superior Grinding Capability: The macerator section finely reduces waste to particles no larger than 1/8", facilitating smooth pumping through a 1" discharge hose.
• Self-Priming Design: Allows versatile installation, enabling the pump to be mounted either above or below the holding tank for optimal placement.
• High Efficiency: Capable of emptying a 30-gallon holding tank in just 3 minutes, ensuring quick and effective waste disposal.
• Durable Construction: Built to handle typical marine waste and tissue, ensuring long-lasting performance even in challenging marine environments.
• Operational Limitations: Not designed to process hard solid objects, sanitary napkins, or rags to prevent potential damage to the pump.

Technical Specifications

Feature	Specification
Voltage	115V AC
Impeller Material	Nitrile
Macerator	Cast Bronze Cutter Plate (reduces particle size to 1/8" max)
Seal Type	Lip Type
Inlet Port	1-1/2" External Pipe Thread
Outlet Port	1" ID Hose Barb
Motor Type	AC Induction, Single Phase, 60 Hz with Thermal Overload Protection
Flow Rate	10 Gallons Per Minute (GPM)
Box Dimensions	9" H x 10" W x 17" L
Weight	7.7 kg (17 lbs) / 19.45 lbs
UPC	671880015530

Installation Guidelines

For optimal performance, install the Jabsco macerator pump as close to the waste source as possible. Its self-priming capability offers flexibility in mounting locations, whether above or below the holding tank, adapting to your vessel's layout and ensuring easy access for maintenance.

Safety Information

WARNING: This product can expose you to chemicals, including NICKEL (METALLIC), which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download Owner's Manual (PDF)
