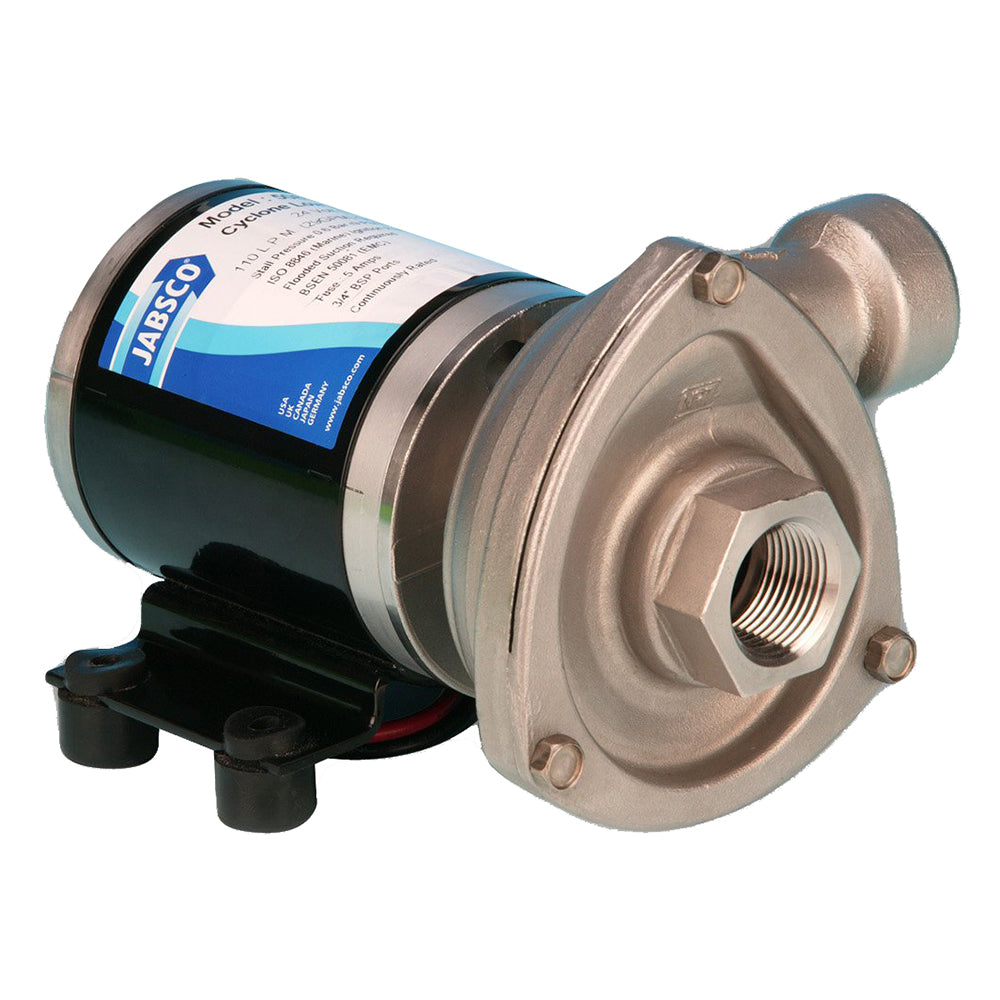

Jabsco Low Pressure Cyclone Centrifugal Pump - 24V

The Low Pressure Cyclone Centrifugal Pump - 24V is engineered for optimal performance in marine and industrial environments. Its silent operation and robust construction make it an ideal choice for various on-board applications, ensuring reliable circulation for your hot water systems, livewells, and bait tanks.

Product Overview

This stainless steel general-purpose centrifugal pump is designed to meet the demanding needs of the marine and industrial markets. With a 2-meter (6-foot) suction lift when wet, it provides efficient and dependable performance for your vessel.

Key Features

• Heavy Duty Robust Design: Built to withstand harsh marine conditions.
• Stainless Steel Construction: Ensures durability and resistance to corrosion.
• Long Life DC Motor: Provides reliable operation with extended lifespan.
• Silent Running: Minimizes noise for a quieter onboard experience.
• Anti-Clog Impeller Design: Reduces the risk of blockages for consistent flow.
• Long Life Mechanical Seal: Enhances longevity and reduces maintenance needs.
• Single Tool Servicing: Simplifies maintenance and repairs.

Specifications

Parameter	Details
Pump Body	Stainless Steel
Port Size	3/4" pipe threads, available with NPTF threads
Flow Rate	110 Liters/Minute (29.7 Gallons/Minute)
Pressure	Up to 0.6 bar (8.7 psi)
Impeller	Stainless Steel Anti-Clog Design
Shaft Seal	Mechanical
Maximum Current	4.5 Amp
Fuse Size	7 Amp
Motor	Continuously Rated
Motor Life	3500 Hours
Certifications	ISO 8846 Marine and USCG Regulations for Ignition Protection, ISO 8849 Marine Bilge Pump Standard
Volts	24V
Box Dimensions	6"H x 6"W x 12"L
Weight	7.2 lbs
UPC	671880579384

Compliance and Safety

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.

Additional Information

For detailed instructions and maintenance guidelines, please refer to the Owner's Manual (PDF).
