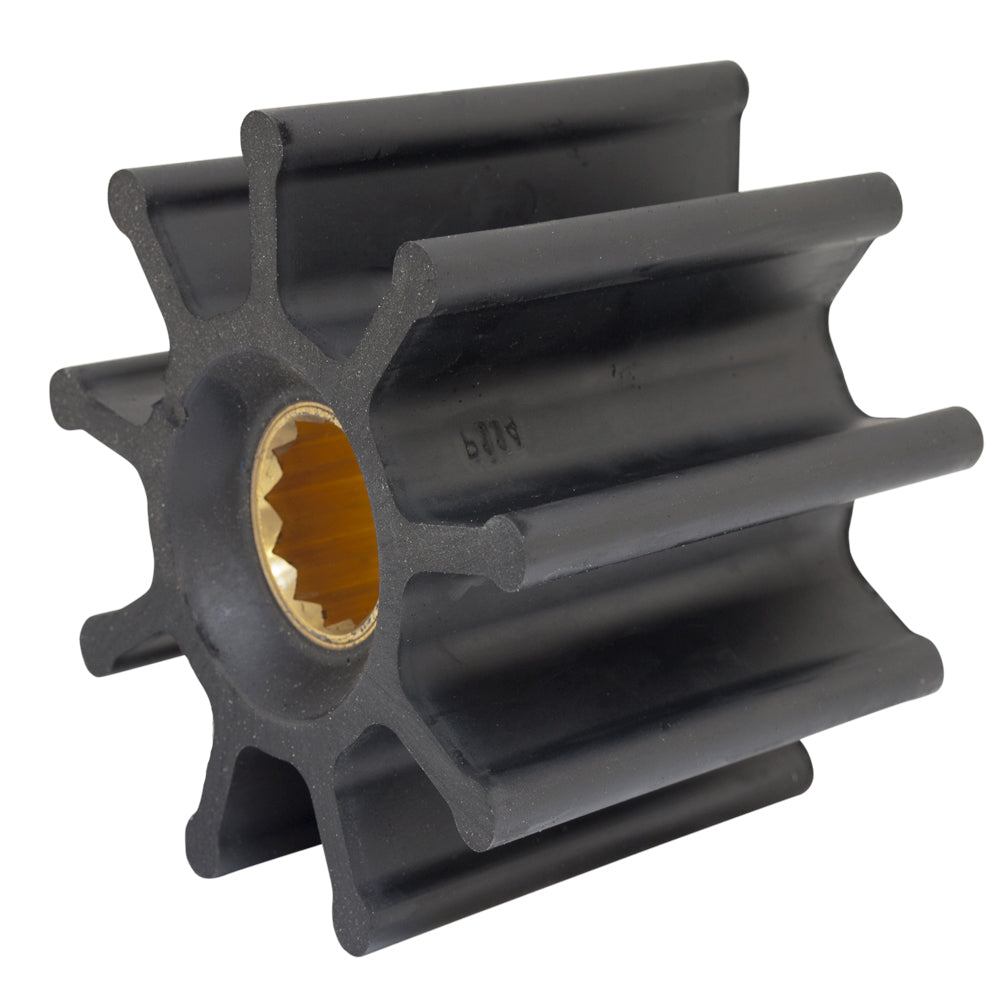

Jabsco Impeller Kit - 9 Blade - Neoprene - 3-" Diameter

Enhance the performance of your marine engine cooling system with our high-quality Jabsco Impeller Kit. Designed for durability and efficiency, this impeller kit ensures reliable operation of your boat's engine, bilge, transfer, and general-purpose pumps.

Specifications

Material	Neoprene
Drive Type	Spline Drive
Number of Blades	9
Dimensions	Diameter: 3-3/4" Shaft Width: 1" Shaft Diameter: 2-1/2"
Insert Material	Brass

Features

• Compatible with most makes and models of bronze flexible impeller engine cooling, bilge, transfer, and general-purpose pumps.
• Constructed from high-quality neoprene and brass to ensure long-lasting performance.
• Subjected to rigorous quality processes for reliability and efficiency.

Installation and Maintenance

Replace all impellers at least once every year, or sooner, depending on the engine duty. When installed correctly, an impeller may last for several years, but adhering to a preventive maintenance schedule is always advisable.

Replacing impellers is easy. Follow these steps for a smooth replacement process:

1. Remove the end cover screws.
2. Use a Jabsco Impeller Removal Tool or channel lock pliers to grip the hub of the impeller and remove it. Avoid using screwdrivers as they may damage the pump body and cause leaks.

Always carry spare impellers on board in case of emergency. The impeller is a vital component of the engine cooling system and should always be readily available.

Always grease new impellers. Greasing serves two purposes:

• Makes it easier to install the impeller into the pump bore.
• Provides added protection to the impeller during the initial prime.

After replacing the gasket and end cover, the pump is ready to use.

Safety Information

WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to P65Warnings.ca.gov.
