Jabsco Electric Toilet Conversion Kit - 12V

Key Features

• Compatible with most marine toilets featuring a 4-bolt screw pattern on a 3-3/4" diameter bolt circle, including brands like Graco, Raritan, Wilcox Crittenden, Mansfield, and Sealand.
• Push-button flushing system for effortless and straightforward operation.

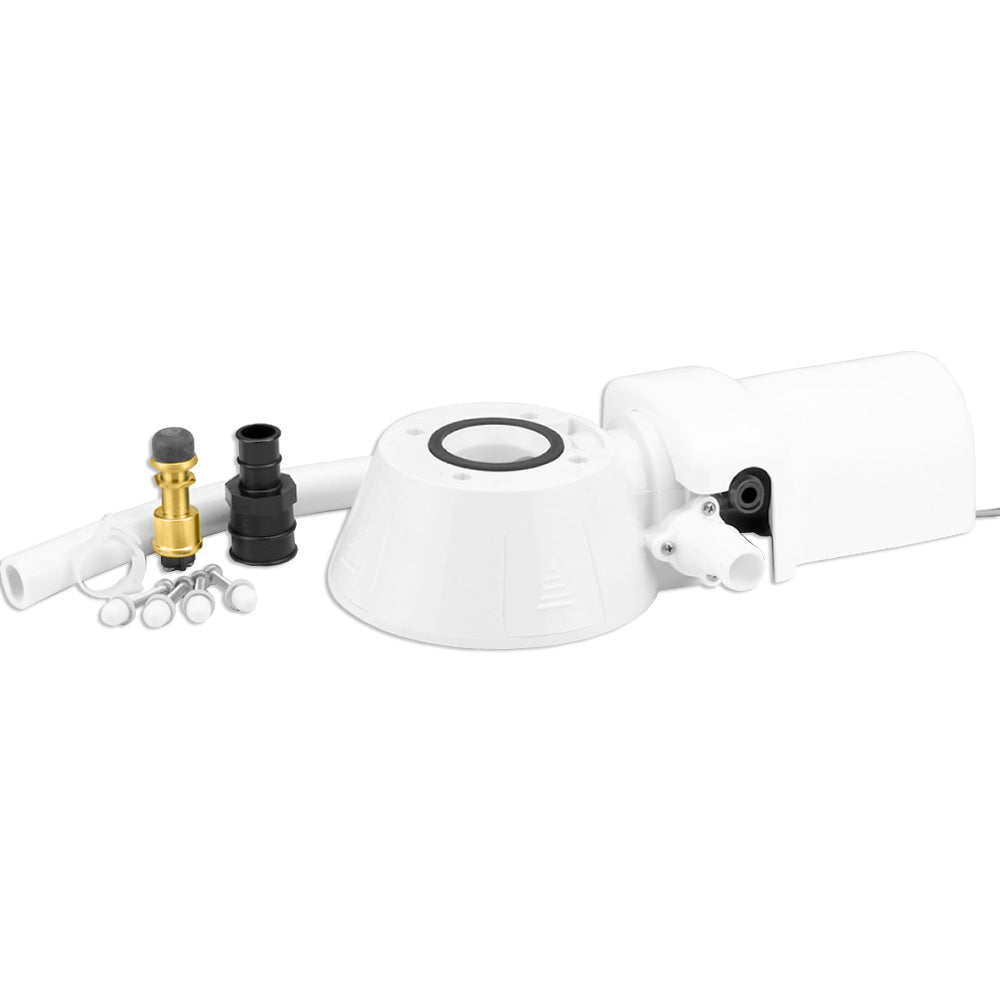

• Comprehensive kit includes all necessary components: flushing pump, macerator pump, switch, adapters, clamps, hoses, and fastening hardware.
• Self-priming flushing pump capable of a vertical lift up to 4 feet.
• Installation flexibility with the ability to be mounted up to 3 feet below the waterline.
• Compatible with vented loop installations when equipped with a solenoid valve on the inlet hose.
• Meets USCG 183.410 and ISO 8846 Marine standards for ignition protection.

Technical Specifications

Installation Details

The Conversion Kit is designed for straightforward installation on compatible marine toilets. Connections are available for 5/8" to 3/4" ID inlet hoses and 1" to 1-1/2" ID outlet hoses. Ensure that installations with vented loops are equipped with a solenoid valve on the inlet hose for optimal performance.

Safety Information

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.

Additional Resources

For detailed installation instructions and product information, please refer to the Owner's Manual (PDF).
