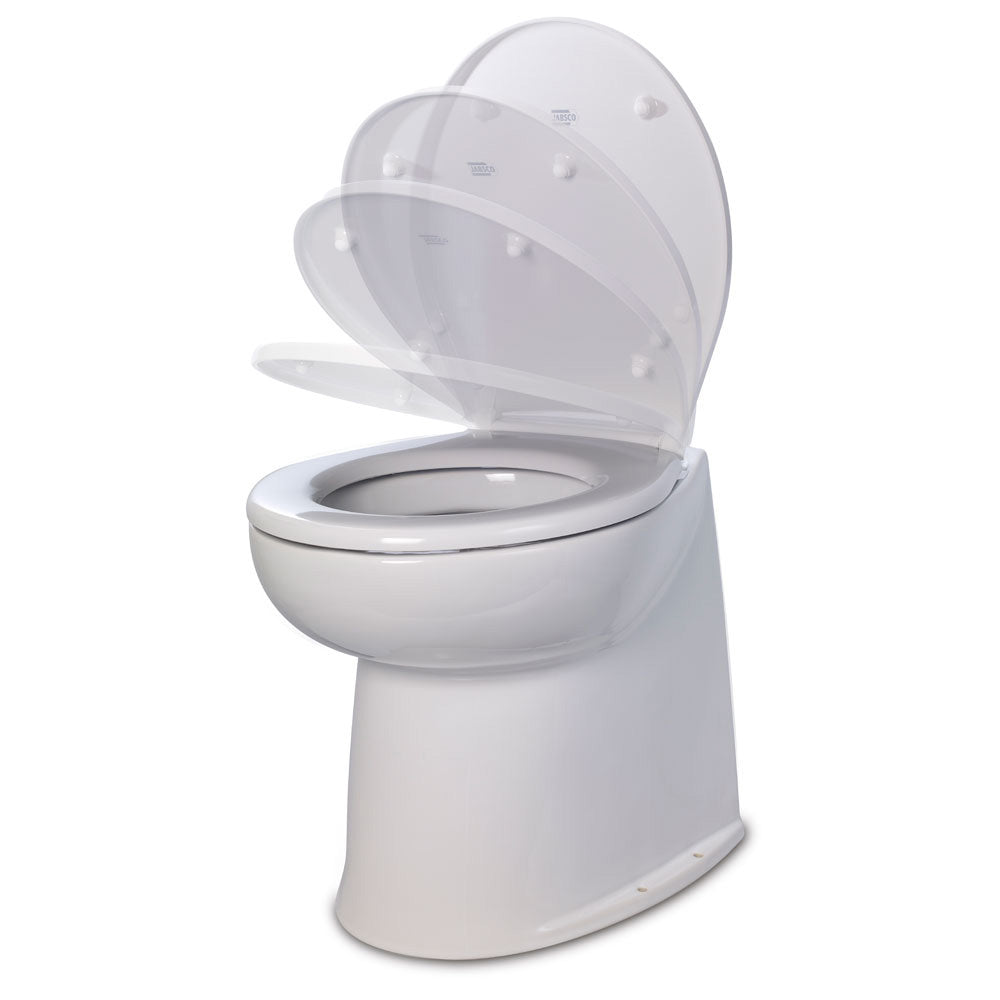

Jabsco Deluxe Flush 14" Straight Back 12V Raw Water Electric Marine Toilet w/Remote Rinse Pump Soft Close Lid

Enhance your marine experience with the Deluxe Flush 14" Straight Back 12V Raw Water Electric Marine Toilet, designed for boat owners who value both luxury and efficiency. This electric marine toilet offers a sleek, space-saving design with minimal water usage and near-silent operation, ensuring comfort and convenience on every voyage.

Key Features

• 14" Straight back for optimal comfort
• Space-saving and stylish design fits seamlessly on any vessel
• Household-sized soft-closing seat for added luxury
• Virtually silent operation ensures a peaceful environment
• Compatible with sea, river, or lake water rinse models
• Powerful non-clogging large bore flush pump efficiently macerates waste

Product Specifications

Feature	Details
Bowl Size	Domestic
Lid	Soft close
Rinse Type	Raw water
Rinse Pump/Solenoid Valve	Remote Rinse Pump
Voltage DC	12V DC
Recommended Fuse Size	25 AMP
Flush Control Switch	4-Button Touch Panel
Height	14.4” / 366 mm
Width	14.8” / 375 mm
Depth	17.7” / 450 mm
Weight	55.1 lbs / 25 kg
Color	White
Operation Method	Electric
Rinse Water	RAW
Volts	12
Box Dimensions	23"H x 23"W x 25"L
Weight	26 lbs
UPC	671880638715

One-Touch Control Pad

The Deluxe Flush marine toilet is equipped with a multi-function, one-touch control pad featuring a clean white bezel and a standard surface mount unit. This intuitive control system offers four distinct options: Fill, Quick Flush, Flush, and Empty.

• Fill: Add 1 quart (1 liter) of water to the bowl when it's dry, ensuring optimal functionality before use.
• Quick Flush: Rinse and empty the bowl after light use, utilizing less than 1 quart (1 liter) of water on the dry setting.
• Flush: Thoroughly rinses and empties the bowl twice after heavy use, using approximately 2.5 quarts (2.5 liters) of water. It's recommended to use the Fill option if the bowl is dry before flushing.
• Empty: Completely empties the bowl without adding water, maintaining an anti-odor water lock in the pump housing even when the bowl appears dry.

You can easily switch between keeping the bowl dry or wet after flushing by holding down both the Quick Flush and Flush buttons for 5 seconds. The dry setting minimizes overall water usage, while the wet setting ensures the bowl is ready for the next user.

Rinse Options

• Includes a remote-mounted, self-priming pump for flexible installation and efficient rinse water supply from sea, river, or lake sources.
• Comes complete with a Jabsco Pumpgard strainer to protect the system from debris and ensure reliable performance.

Additional Information

Owner's Manual
Download Owner's Manual (PDF)
