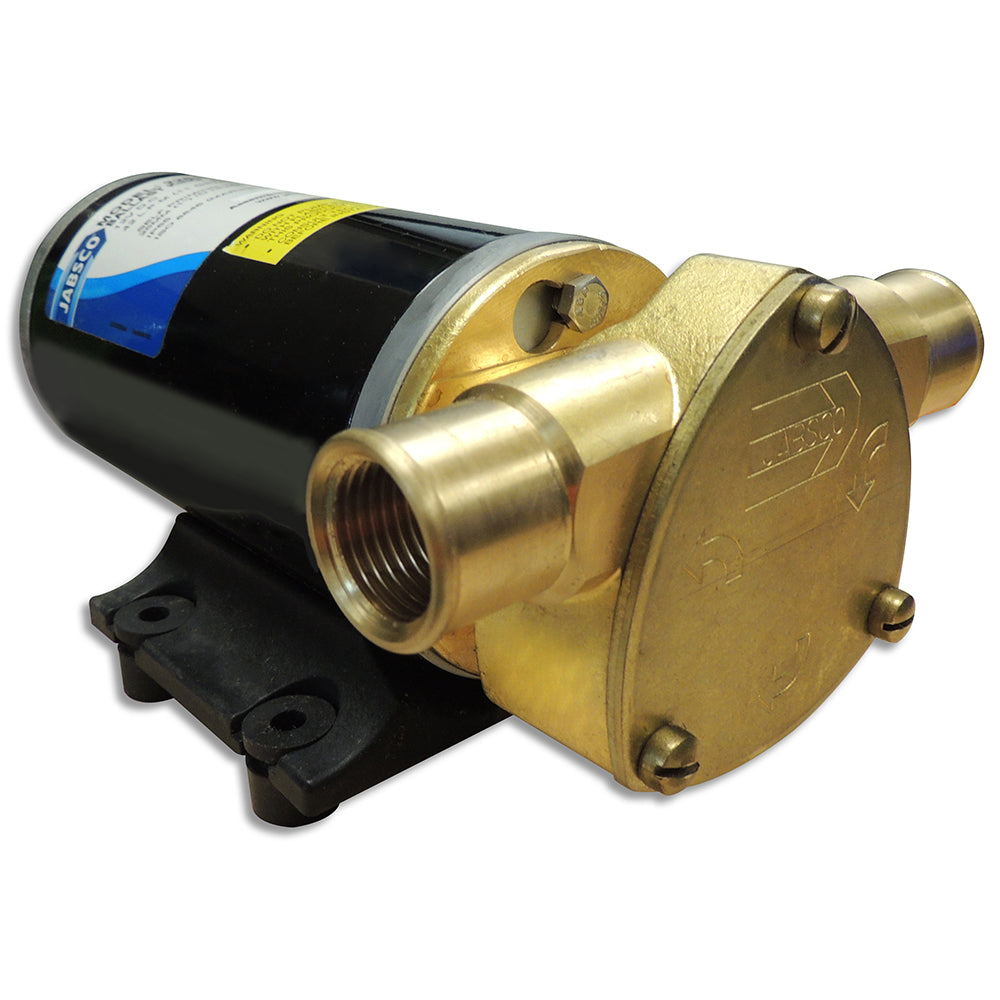

Jabsco Ballast King Bronze DC Pump w/Reversing Switch - 15 GPM

The Ballast King Bronze DC Pump with Reversing Switch is the ultimate solution for managing your wakeboard and ski boat ballast systems. Engineered for efficiency and durability, this pump ensures quick and reliable ballast adjustments, enhancing your boating experience.

Key Features

• High Flow Rate: Delivers 15 US gallons per minute (57 Litres/min) for rapid ballast adjustments.
• Self-Priming Capability: Automatically primes from dry up to 1.2 meters (4 feet), ensuring seamless operation.
• Powerful Ballast Addition: Adds approximately 125 lbs (56 kgs) of ballast per minute.
• Reversible Operation: Easily switch between filling and emptying tanks with the reversing switch.
• Durable Design: Fewer wearing parts due to its simple and robust construction.
• Marine Certified: Complies with ISO 8846 MARINE standards for ignition protection.
• Run-Dry Protection: Features a patent-pending device that automatically shuts off the pump to prevent impeller damage.

Applications

The Ballast King is specifically designed for use with Wakeboard Liquid Ballast Tanks, providing efficient water pumping capabilities. Whether you need to fill your ballast tanks quickly before hitting the waves or empty them after your session, this pump handles the job with ease. With a flow rate of 15 gallons per minute, most ballast tanks can be filled in approximately five minutes. Additionally, the built-in Run-Dry Protection Device ensures the pump remains safe and operational by automatically shutting off if left on inadvertently.

Technical Specifications

Specification	Details
Flow Rate	15 US gallons/min (57 Litres/min)
Self-Priming	Up to 1.2m (4ft)
Ballast Addition	125lbs (56kgs) per minute
Reversible Operation	Yes, both fill and empty
Body Material	Bronze
Impeller	Jabsco Neoprene Compound
Seal Type	Lip Type
Ports	1/2" Internal Pipe Threads, 1" External Hose Barb
Voltage	12 Vdc
Amp Draw	19 amps
Fuse Size	25 amps
Motor Type	Permanent Magnet Type, Fully Enclosed Stainless Steel Shaft, Ball Type Shaft Bearing, Reversible
Duty Cycle	30 Minutes Max
Dimensions	3 5/8" x 8" x 4 3/4" (inches)
Box Dimensions	6"H x 6"W x 12"L
Weight	8.6 lbs
UPC	671880628846

Safety Information

WARNING: This product can expose you to chemicals including NICKEL (METALLIC), which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.

Additional Resources

For more detailed information, download our brochure (PDF).
