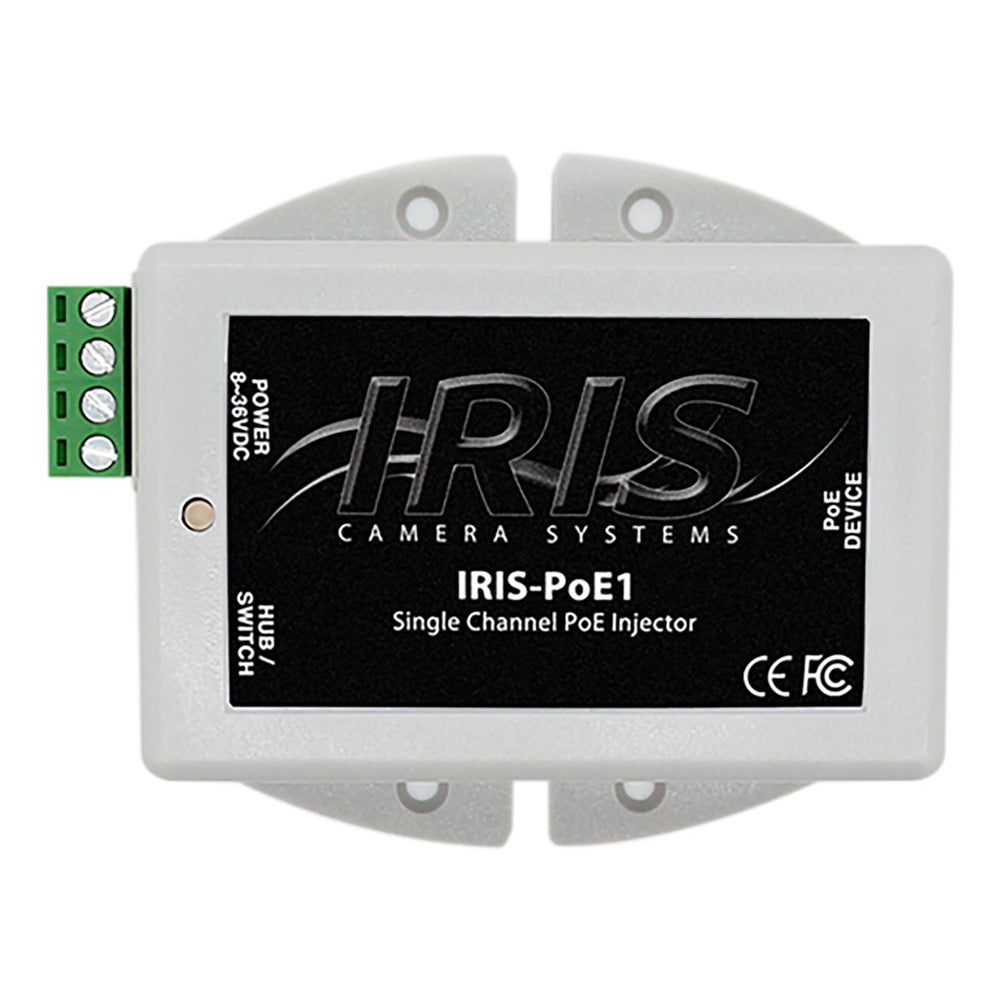

Iris Single Channel PoE Injector - 8-36VDC Input Voltage 48VDC Output

The IRIS-PoE1 Gigabit Ethernet Injector is a specially engineered single-channel Power over Ethernet (PoE) solution tailored for marine and boating applications. This compact and reliable injector allows you to power your IP cameras or other PoE-enabled devices using just a single CAT5 cable, streamlining your onboard network setup and simplifying installations.

Features

• Inject DC power into a single device
• Wide voltage range – 6-36VDC input
• Delivers up to 48VDC
• IEEE802.3af compliant
• Small form factor with molded fixing points
• Plug-and-play functionality for simple and reliable installation

Specifications

Specification	Details
Dimensions (mm)	92 x 84 x 38
Weight	144g
Connections	CAT5 device in / output to network, 4-pin screw terminal for DC input
Input Voltage	8-36VDC
Power	16.8W

Certifications

The IRIS-PoE1 Gigabit Ethernet Injector has been fully certified to comply with the following standards for use in the marine industry:

• IEEE802.3af
• EN60945
• EN55022 (Class B)
• EN50155
• UL1950
• XSA 22.2

Download the Brochure (PDF)
